| Anzeige Nr: | #00213356 |
| Kategorie: | Folienschneider-Geschirrspülmaschine |
| Marke: | Fagor |
| Modelltyp: | CO-110 |
| Produkttyp: | Zu verkaufen |
| Produktstatus: | Keiner |
| Herkunft: | Türkei |
| Ort: | Camiikebir Mah. / Beyoğlu / İstanbul |
| Garantiestatus: | 2 Yıl Garantiert |
| Verkaufsdetail: | , |
| Lieferstatus: | Auf Lager |

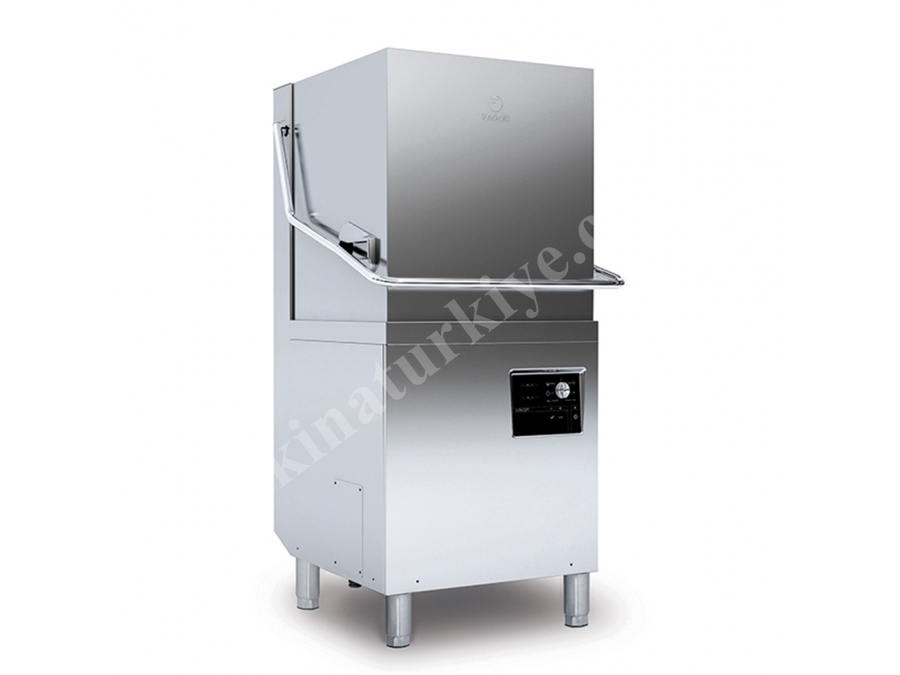

DENOMINATION: Hood-type dishwasher with simple control DESCRIPTION : - Hood-Type dishwashers - EVO Generation - Constructed in stainless steel. - Counterbalanced hood with handle and spring system. - Double rotating wash and rinse system, top and bottom, in stainless steel. - 440 mm hood opening (Accepts GN 1/1 trays). - 750 W wash pump providing high water flow. - Rounded tank to facilitate washing and drainage. - Stainless steel armoured heating elements in the wash tank and rinse boiler. - Multi-voltage: Allows the machine to be connected to a single-phase or three-phase voltage network. (230 1N~/230 3~/400V 3N~).- AISI-304 stainless steel filter trays in the wash tank. - Thermostatic control of temperatures (wash, 60°C, and rinse, 85°C). - Thermal stop system which guarantees a rinse temperature of 85°C. - Safety stop switch in hood opening. - Safety thermostat. - Water consumption per 2.4 litre cycle. - Model for 500 x 500 mm baskets. - Model with highly resistant control buttons. - 90s, 120s,180s and 600s wash cycles. - Theoretical maximum production of 40 baskets/hour. - Tank with volume of 33 litres, with 4.5 kW heating element. - Boiler with volume of 9 litres, with 6 kW heating element. - Alternating or simultaneous tank and boiler heating. - Thermal stop system which guarantees a rinse temperature of 85°C. Standard factory setting disabled. - Maximum Total power: 6.75 kW (alternating) or 11.25 kW (simultaneous). - IPX4 anti-humidity protection. POSSIBLE OPTIONS : - Electric connection for ships 440V POSSIBLE ACCESSORIES : - ACCESSORIES DISHWASHING - ENTRY-EXIT TABLES - VARIOUS KITS - BASKETS FOR DISHWASHERS - BASKETS FOR GLASSES - WATER SOFTENERS SUPPLIED ACCESSORIES: - 19000484 Standard basket 1 - 19000487 Basket for 16/18 dishes 1 - 19000792 Cutlery container 2 DIMENSIONS X Width 630 mm X Gross width 765 mm Y Depth 750 mm Y Gross depth 905 mm Z Height 1465 mm Z Gross height 1610 mm Net Weight 91,0 kg Gross Weight 113,0 kg Net volume 0,659 m3 Gross volume 1,115 m3 ELECTRICITY TECHNICAL SPECIFICATIONS Engine power 0,75 kW Electric power 11,250 kW Amperage (A) 18,48 Heating power 6,00 kW Voltage 380-415V - 3N Electric frequency 50Hz MULTIPOWER CONNECTION RATED POWER (kW) RATED CURRENT (A) BOILER (kW) TANK (kW) 230V, 1N~ 3,75 kW 16,3 A 3 kW 2,25 kW ALT 230V, 1N~ 4,75 kW 20,65 A 4 kW 3 kW ALT 230V, 1N~ 6,75 kW 29,35 A 6 kW 4,5 kW ALT 230V, 1N~ 6 kW 26,1 A 3 kW 2,25 kW SIM 230V, 1N~ 7,75 kW 33,7 A 4 kW 3 kW SIM 230V, 1N~ 11,25 kW 48,91 A 6 kW 4,5 kW SIM 400V, 3N~ 6,75 kW 11,96 A 6 kW 4,5 kW ALT 400V, 3N~ 11,25 kW 18,48 A 6 kW 4,5 kW SIM 230V, 3~ 6,75 kW 18,32 A 6 kW 4,5 kW ALT 230V, 3~ 11,25 kW 29,62 A 6 kW 4,5 kW SIM WATER TECHNICAL SPECIFICATIONS Pressure H2O: 200-400kPa(2-4bar) Water max consumption 60,00 L/h CONNECTIONS TECHNICAL SPECIFICATIONS 230 V three-phase wiring 3X10+T - 63 A Single-phase 230V wiring 2X16+T - 80 A Three-phase +N 400V wiring 4X6+T - 40 A Drain 1 diameter 2"Fagor CO-110
CO-110 Giyotin Tip Bulaşık Yıkama Makinası
