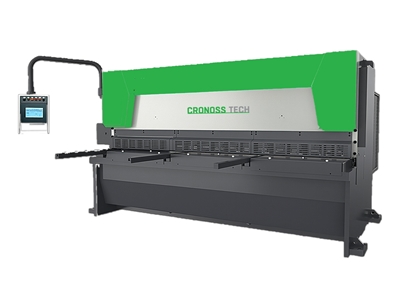

10 mm x 3100 mm CNC Hydraulic Guillotine Shear

General Description

10 mm x 3100 mm CNC Hydraulic Guillotine Shear is an industrial cutting machine developed for the precise, fast, and reliable cutting of medium and heavy thickness sheets. Its robust steel construction body, powerful Rexroth hydraulic system, and CNC controlled back support system provide high cutting quality, long service life, and efficient production.

With the ELGO P40T 5.7 inch touch CNC control unit, automatic blade gap adjustment system, 1000 mm programmable CNC back support system, and dual-speed cutting technology, it offers optimal performance for different sheet thicknesses. The pneumatic sheet support system, shadow line cutting path, and ball transfer table enhance operator comfort and production efficiency.

Standard Equipment

ELGO P40T 5.7 inch touch CNC control unit
3100 mm cutting length
10 mm maximum cutting capacity (450 N/mm²)
250 mm throat depth
2.0° cutting angle
3340 mm distance between columns
Automatic blade gap adjustment system via ELGO P40T
Manual blade gap adjustment system
CronossTech AC motor CNC controlled X-axis back support system
1000 mm programmable back support distance
Programmable back support retract function
Measuring ruler, T-channel, and foldable support front sheet support arms
1000 mm foldable finger protection system
Standard upper blade (2 cutting edges – 450 N/mm²)
Standard lower blade (4 cutting edges – 450 N/mm²)
Pneumatic sheet support system (Type 1 – Two-position)
Shadow line cutting path lighting
Ball transfer table
Single foot pedal (P1)
Rear safety system
Emergency stop buttons
Schneider or Siemens electrical equipment (400 V / 50 Hz)
Rexroth hydraulic block
Front and rear protection cabins
Dual-speed cutting system (High-speed operation up to 60% of maximum cutting capacity)
Energy-saving Standby mode

Technical Specifications

Feature	Value
Cutting Capacity (450 N/mm²)	10 mm
Cutting Capacity (700 N/mm²)	6 mm
Cutting Length	3100 mm
Cutting Angle	2.0°
Number of Pressure Cylinders	14 Pieces
Cutting Speed / Fast Mode	13 / 18 cuts/min
Distance Between Columns	3340 mm
Table Height	880 mm
Table Width	600 mm
Throat Depth	250 mm
Back Support Movement Distance (X)	1000 mm
Oil Tank Capacity	265 L
Main Motor Power	22 kW
Machine Dimensions (W × D × H)	4675 × 3520 × 2140 mm
Machine Weight	9,600 kg

Areas of Use

Sheet metal processing facilities
Steel service centers
Steel construction production
Machine manufacturing
Automotive sub-industry
Electrical panel production
Ventilation and air conditioning systems
Agricultural machinery production
Metal furniture production
General metal processing and contract manufacturing

Advantages

CNC controlled 1000 mm back support system
Automatic blade gap adjustment system
Scratch-free and safe cutting with pneumatic sheet support system
High production efficiency with dual-speed cutting technology
Powerful Rexroth hydraulic system
Durable steel construction body
Precise cutting with shadow line cutting path
Easy material movement with ball transfer table
Energy-saving Standby mode
Industrial design compliant with CE standards

Warranty

12 Month Manufacturer Warranty

Cutting Length (mm) 3100

Cutting Thickness (mm) 10

Cutting Capacity 10
