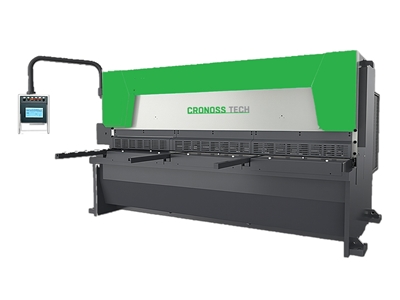

10 mm x 4000 mm CNC Hydraulic Guillotine Shear

General Description

10 mm x 4000 mm CNC Hydraulic Guillotine Shear is an industrial cutting machine developed for high-precision sheet cutting operations, featuring a robust body structure and a powerful hydraulic system. Its heavy-duty steel construction, high-quality European components, and CNC-controlled back support system provide long-lasting, precise, and efficient production.

With the ELGO P40T 5.7-inch touch CNC control unit, automatic blade gap adjustment system, 1000 mm CNC-controlled back support system, and dual-speed cutting technology, it ensures high cutting quality for different sheet thicknesses. The shadow line cutting path, ball transfer table, and safety equipment compliant with CE standards enhance operator comfort and safety.

Standard Equipment

ELGO P40T 5.7-inch touch CNC control unit
4000 mm cutting length
10 mm maximum cutting capacity (450 N/mm²)
250 mm throat depth
1.5° cutting angle
4240 mm distance between columns
CronossTech AC motor CNC-controlled X-axis back support system
1000 mm programmable back support distance
Programmable back support retract function
Automatic blade gap adjustment system via ELGO P40T
Manual blade gap adjustment system
Measuring ruler, T-slot, and stop-equipped front sheet support arms
1000 mm openable finger protection system
Standard upper blade (2 cutting edges – 450 N/mm²)
Standard lower blade (4 cutting edges – 450 N/mm²)
Shadow line cutting path lighting
Ball transfer table
Single foot pedal (P1)
Rear safety system compliant with CE standards
Emergency stop buttons
Schneider or Siemens electrical equipment (400 V / 50 Hz)
Rexroth hydraulic block
Front and rear protection cabins
Dual-speed cutting system
Energy-saving Standby mode

Technical Specifications

Feature	Value
Cutting Capacity (450 N/mm²)	10 mm
Cutting Capacity (700 N/mm²)	6 mm
Cutting Length	4000 mm
Cutting Angle	1.5°
Number of Pressure Cylinders	17 Pieces
Cutting Speed / Fast Mode	11 / 17 cuts/min
Distance Between Columns	4240 mm
Table Height	890 mm
Table Width	635 mm
Throat Depth	250 mm
Back Support Movement Distance (X)	1000 mm
Oil Tank Capacity	265 L
Motor Power	22 kW
Machine Dimensions (W × D × H)	5580 × 3725 × 2290 mm
Machine Weight	16.2 Tons

Areas of Use

Sheet metal processing facilities
Steel service centers
Steel construction production
Machine and equipment manufacturing
Automotive and sub-industry
Electrical panel production
Ventilation and air conditioning systems
Agricultural machinery production
Shipbuilding industry
General metal processing and contract manufacturing

Advantages

CNC controlled 1000 mm back support system
Automatic blade gap adjustment system
High efficiency with dual-speed cutting technology
Powerful Rexroth hydraulic system
Durable steel construction body
Precise and clean cutting quality
Energy-saving Standby mode
Easy alignment with shadow line cutting path
Easy material movement with ball transfer table
Safety equipment compliant with CE standards

Warranty

12 Month Manufacturer Warranty
