100 Ton x 2100 Mm Cnc Hydraulic Press Brake

Advertisement No:	#00257085
Category:	Press Brake
Brand:	Cronosstech
Model Type:	HPB B100-2100
Product Type:	For Sale
Product Status:	New
Origin:	Turkey
Location:	İkitelli OSB Mah. / Başakşehir / İstanbul
Warranty Status:	1 Yıl Guaranteed
Sales Detail:	Suitable for Leasing, Bank Transfer, Negotiated
Delivery Status:	45 Day

Price:

40,000.00 +VAT

Min. Sipariş 1 Piece

Send Inquiry

Purchasing Tips

Protect your privacy, review the product descriptions...

Contact the seller

CronossTech Makina

CronossTech Makina Dış Tic. Ltd. Şti.

Advisor : Volkan Ö.

Go to the store

Add to My Favorite Store

All Ads

Send Message

Fast Chat

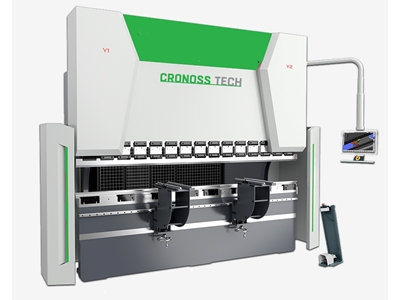

100 Ton x 2100 mm 4 Axis CNC Hydraulic Press Brake (B Series)

General Description

100 Ton x 2100 mm 4 Axis CNC Hydraulic Press Brake (B Series) is a CNC-controlled press brake developed for sheet metal bending applications requiring high precision, featuring a compact structure and a powerful hydraulic system. Its robust steel construction body, along with European-sourced hydraulic and electrical components, offers long-lasting, reliable, and efficient production.

The ESA S630 CNC control unit, Y1-Y2-X-R 4 axis CNC control system, and servo motor-driven X+R axis back support system provide high positioning accuracy and repeatable bending performance. The European type Promecam quick die clamping system, GIVI linear scale technology, and AKAS II laser safety system ensure safe and precise production.

Standard Equipment

ESA S630 CNC control unit
4 axis CNC control system including Y1, Y2, X, and R
Servo motor-driven CronossTech X+R axis back support system
X axis movement range of 750 mm
R axis movement range of 250 mm
±0.03 mm back support positioning accuracy
Manually adjustable, 3-stage 2 back support fingers

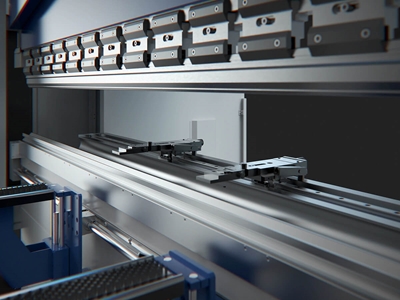

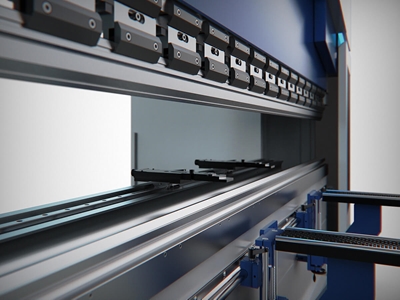

European type Promecam E7 quick upper die clamping system
CronossTech European type narrow lower die table
Standard upper die ES1260
Standard lower die ES2067 (4 V channels)
B Series open cabin design
GIVI linear scale system
Hoerbiger (HAWE) hydraulic block
Eckerle hydraulic pump
Siemens drive system
Schneider or Siemens electrical equipment
Electrical panel compliant with VDE standards
LED working light on the ram
2 sliding type front sheet support arms
Single foot pedal
Energy-saving Standby mode
AKAS II front laser safety system
PLC controlled light barriers
Safety system compliant with CE standards

Technical Specifications

Feature	Value
Bending Force	100 Ton
Bending Length	2100 mm
Distance Between Columns	1600 mm
Ram Stroke	210 mm
Open Height (Daylight)	465 mm
Throat Depth	410 mm
Table Height	870 mm
Approach Speed	160 mm/s
Bending Speed	10 mm/s
Return Speed	135 mm/s
Oil Tank Capacity	170 L
Main Motor Power	5.5 kW
Back Support X Axis	750 mm / 300 mm/s
Back Support R Axis	250 mm / 250 mm/s
Machine Dimensions (L × W × H)	3660 × 2175 × 2820 mm
Machine Weight	5,000 kg

Areas of Use

Sheet metal processing workshops
Machine and equipment manufacturing
Electrical panel manufacturing
Metal furniture manufacturing
Automotive sub-industry
Stainless steel processing
Ventilation and air conditioning systems
Agricultural machinery manufacturing
Prototype and small/medium scale serial production
General metal processing

Advantages

Precise and repeatable bending with 4 axis CNC control system
Servo motor-driven X+R axis back support system
European type Promecam quick die clamping system
High positioning accuracy with GIVI linear scale system
Robust steel construction body
European-sourced hydraulic and electrical components
Energy-saving Standby mode
Minimum space requirement with compact design
Safe operation with AKAS II laser safety system
Production compliant with CE standards

Warranty

12 Month Manufacturer Warranty

Bending Capacity 100 TON

Bending Length 2100 MM

Number of Axis 4
