| Advertisement No: | #00143907 |
| Category: | Glazing Machine |
| Brand: | Teknofinsteel |
| Model Type: | GM |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | Ziya Gökalp Mah. / Başakşehir / İstanbul |
| Warranty Status: | 2 Yıl Guaranteed |
| Sales Detail: | Bank Transfer, Credit Cart, Eligible for Credit, Negotiated |
| Delivery Status: | 7 Gün |
Purpose of Use: * It is used in glazing frozen fish products. * The machine is made of AISI 304 quality stainless steel and profiles. Voltage: 400 V 3 Phase 50/60 Hz Teknofinsteel GM

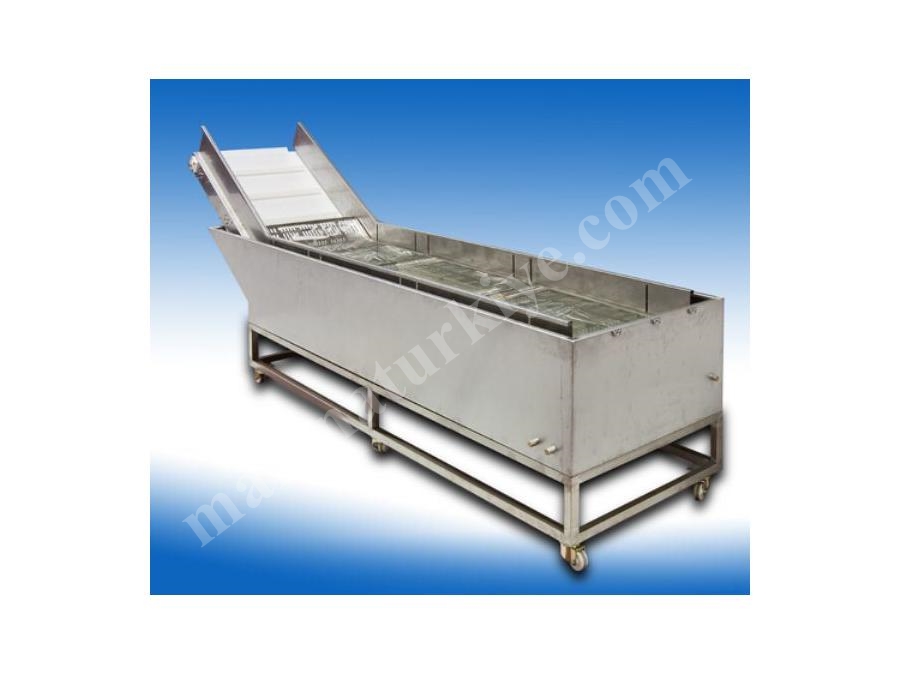

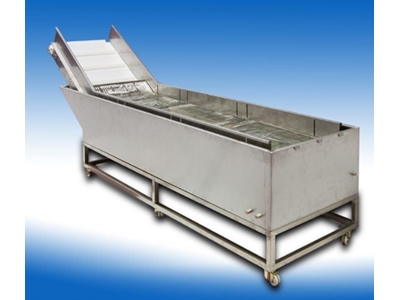

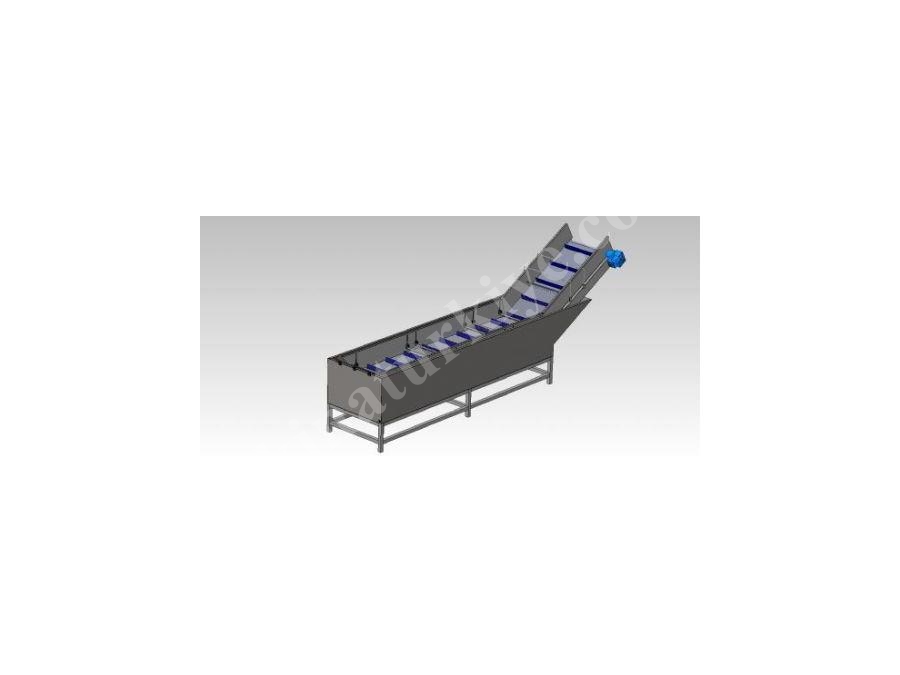

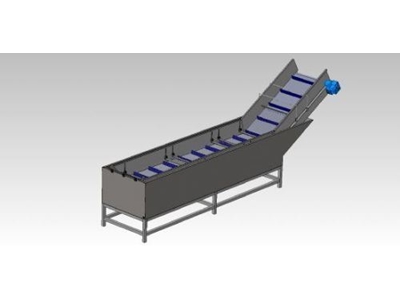

1000 - 1500 Kg/Hour Fish Glaze Machine
Technical Specifications:
* There are 4 rows of Ø25mm stainless cooling gas coil tubes inside the water tank.
* Water level adjustment valve is available.
* The machine can be moved within the operation with 2 swivel and 2 fixed wheels.
* Ø200mm easy to open cleaning manhole cover provides ease of cleaning.
* Eurobelt (Spain) 15mm thick, 300 mm spaced carrier wings are used in the machine.
* Eurobelt wingless S50 type flat perforated plastic belt is used as top pressure (dipping) belt.
* Conveyors are driven by directly coupled Yılmaz branded motor gearbox group.
* Modular belt lower and side guides are made of PE 1000 green colored material and conveyor belts are white.
* The machine is equipped with speed control inverter for adjusting the speed as desired.
Total Power: 0.75 kw
Size: 5300x1100x1950mm
Capacity: 1000 - 1500 kg/h
