| Advertisement No: | #00164028 |
| Category: | Chain Rotating System |
| Brand: | Kamesh Welding |
| Model Type: | KWZCS10000 |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Delivery Status: | In stock |
| Location: | Fevziçakmak Mhl. / Karatay / Konya |
| Short Detail: | 2 Yıl Guaranteed |
| Sales Detail: | Bank Transfer, Negotiated |

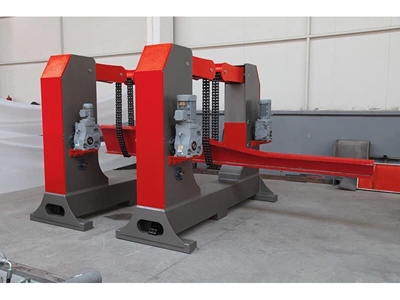

                         Chain type rotators are systems that allow flat parts such as H, I profile and overhead crane beams, which are frequently manufactured in 10000 kg steel construction, to be brought to the appropriate welding position for welding. These systems significantly reduce the use of cranes by allowing materials to be brought to the groove position, thus increasing welding speeds. The rotators, which are driven by both units, move in synchronization with each other, achieving optimum rotation capability.Kamesh Welding KWZCS10000 Chain Type Rotating Machine
Kamesh Welding KWZCS10000 Technical Specifications




		TECHNICAL SPECIFICATIONS
			KWZCS1000
			KWZCS3000
			KWZCS5000
			KWZCS10000


		Loading Capacity (KG)
			1000
			3000
			5000
			10000


		Rotating Capacity (MM)
			1000X1000
			1200X1200
			1200X1200
			1500X1500


		Width Between Arms (MM)
			1200
			1200
			1500
			1700


		Chain Speed (M/MIN)
			2.5
			2.5
			2.5
			2.5


		Rotating Motor (KW)
			4 x 0.37
			4 X 0.75
			4 X 1.1
			4 X 2.2


		Input Power
			380 V -50 HZ
			380 V -50 HZ
			380 V -50 HZ
			380 V -50 HZ


		Length (MM)
			2500
			2250
			2500
			2750


		Width (MM)
			1000
			1250
			1250
			1400


		Weight (KG)
			1700
			2100
			2250
			2750



Color
			Red - Gray
			Red - Gray
			Red - Gray
			Red - Gray
