10W UV Laser Marking Machine

Advertisement No:	#00257667
Category:	Laser Marking Machine
Brand:	Lazermarka
Model Type:	L-LM-003
Product Type:	For Sale
Product Status:	New
Origin:	Turkey
Location:	Yukarıdudullu Mah. / Ümraniye / İstanbul
Warranty Status:	2 Yıl Guaranteed
Sales Detail:	Bank Transfer, Credit Cart, Negotiated
Delivery Status:	In stock

Price:

Ask For Price +VAT

Min. Sipariş 1 Piece

Send Inquiry

Purchasing Tips

Protect your privacy, review the product descriptions...

Contact the seller

Karma Kodlama Teknolojileri

Karma Kodlama Makinaları San. Tic. Ltd. Şti

Advisor : Burak B.

Go to the store

Add to My Favorite Store

All Ads

+90 216 368 50 **

+90 553 387 49 **

Send Message

Fast Chat

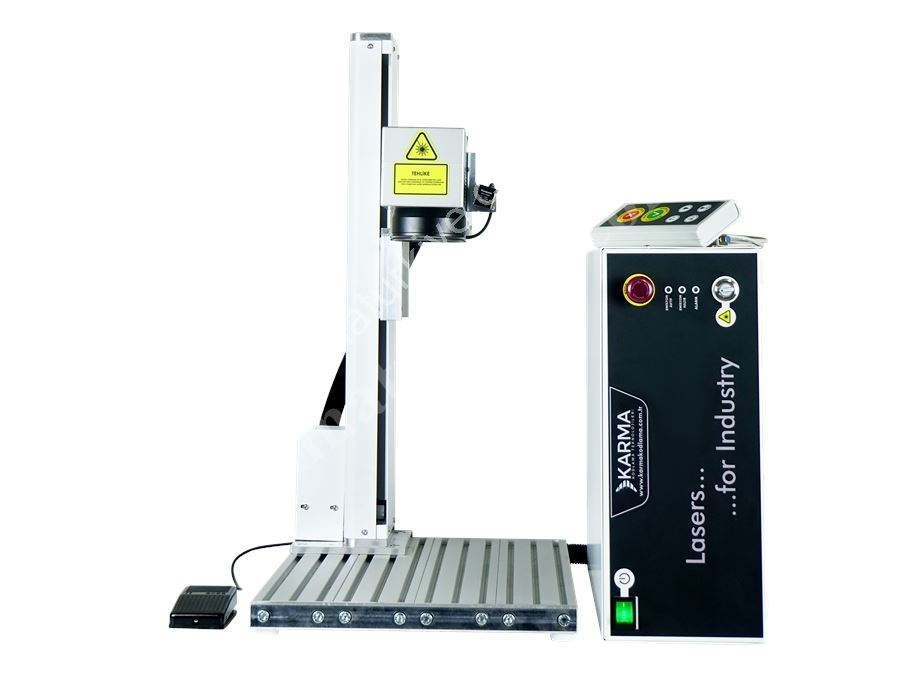

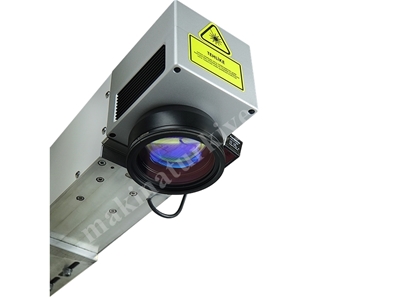

10W UV Laser Marking Machine

About

It is an industrial UV laser marking machine developed for the permanent marking of sensitive and heat-sensitive products.
Thanks to the 355 nm DPSS-UV laser technology, it performs high-quality marking on plastic, glass, electronic components, and medical products without damaging the surface.
With 10W laser power, it offers higher speed and stronger marking performance compared to 5W models.
It can process QR Codes, DataMatrix, barcodes, serial numbers, dates, logos, and variable data with high precision.
Thanks to the motorized and fully automatic focusing system, it quickly adapts to products of different heights.
Its industrial water-cooled structure provides stable and high-performance operation for a long time.
It can be easily integrated into production lines and automation systems with USB and External I/O connections.
The ergonomic control panel provides fast and safe usage for the operator.

Areas of Use

Electronic component manufacturing
PCB board manufacturing
Medical device manufacturing
Plastic packaging industry
Cosmetic products
Glass product marking
Cable and connector manufacturing
Laboratory equipment
Precision plastic parts
Promotional products

Technical Specifications

Feature	Value
Laser Technology	355 nm DPSS-UV Industrial Water-Cooled Laser
Laser Power	10 W
Marking Area	70×70 mm, 110×110 mm, 150×150 mm, 170×170 mm, 200×200 mm
Operating Frequency	50 – 500 kHz
Marking Speed	Maximum 1,000 characters/sec*
Laser Pulse Duration	15 ns / 50 kHz
Total Weight	45 kg
Connections	USB, External I/O
Focusing System	Motorized and Fully Automatic Focusing
Control Unit	Laser Activation and Emergency Stop Buttons
Control Panel	Start, Stop, Up, Down, LED and Pointer Controls
Cooling System	Industrial Water-Cooled

*Marking speed may vary depending on character size and application conditions.

Highlighted Advantages

Marks without causing deformation on heat-sensitive surfaces.
Can operate at higher production speeds thanks to 10W laser power.
Provides high-resolution marking on glass, plastic, and electronic products.
Adapts to different product heights with the motorized automatic focusing system.
Supports QR Code, DataMatrix, barcode, and serial number applications.
Can be integrated into automation systems with USB and External I/O connections.
Offers stable working performance for a long time due to its water-cooled structure.
Reduces operating costs with low maintenance needs.

Why Should You Choose the 10W UV Laser Marking Machine?

The 10W UV Laser Marking Machine is a professional solution developed for manufacturers who want high quality on sensitive surfaces. It can work faster on production lines compared to 5W models due to its higher laser power and provides more distinct marking. It performs permanent marking without burning the surface on plastic, glass, electronic, and medical products, preserving product quality. Its compatible structure with automation systems allows for easy integration into Industry 4.0 production processes.

Frequently Asked Questions

What materials can the 10W UV laser be used on?

It can be used on glass, plastic, acrylic, silicone, electronic boards (PCB), ceramics, medical products, and many sensitive materials.

What is the difference compared to the 5W model?

The 10W model can mark faster due to its higher laser power and offers higher efficiency on intensive production lines.

Can it mark QR Codes and DataMatrix?

Yes. It can perform QR Code, DataMatrix, barcode, serial number, date, and logo applications with high precision.

Can it be connected to automation systems?

Yes. It can be easily integrated into production lines with USB and External I/O connections.

Does it have an automatic focusing system?

Yes. A motorized and programmable fully automatic focusing system is provided as standard.

Shipping and Delivery Information

The product is shipped in accordance with safe transport standards.
Installation, commissioning, and training services can be provided by the technical team.
Production line integration and software support are offered.
After-sales technical service and spare parts support are available.
Can be configured on a project basis with different marking areas and laser power options.
