| Advertisement No: | #00249320 |
| Category: | Coil Slitting Machine |
| Brand: | Kaizen |
| Model Type: | KHPSPR-1300 |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Delivery Status: | In stock |
| Location: | Çavuşoğlu Mah. / Kartal / İstanbul |
| Sales Detail: | Bank Transfer, Negotiated |

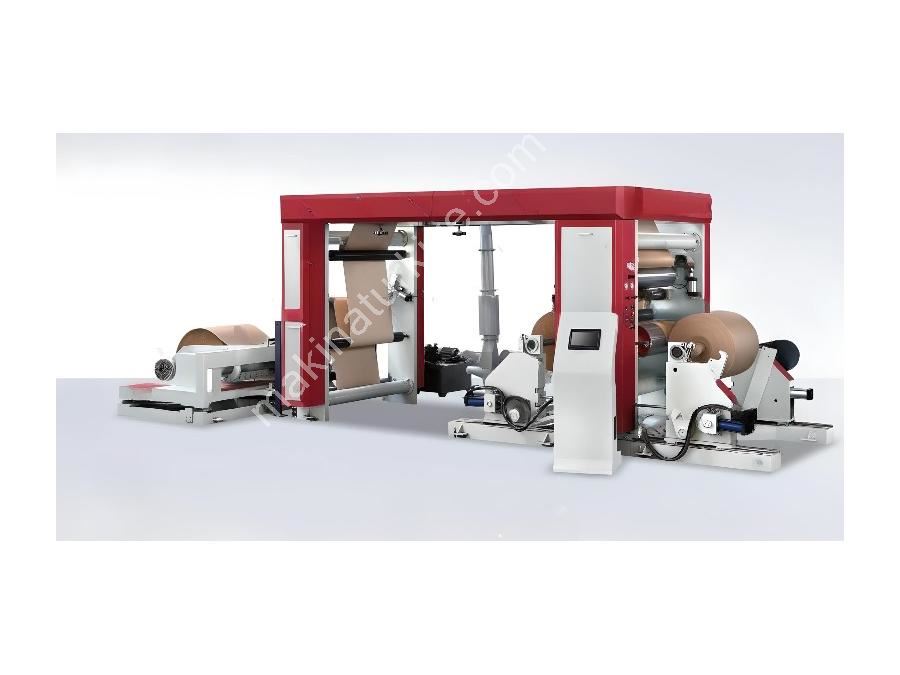

28 kW High Speed Paper Reel Slitting and Rewinding Machine
The High Speed Paper Reel Slitting and Rewinding Machine is a machine used in the paper production industry and packaging sector to split large paper reels into smaller pieces and wrap them neatly. This machine is designed to speed up production processes, increase efficiency, and obtain high-quality products. Equipped with high-speed and automatic features, the machine uses adjustable circular blades for the cutting process. The independent operation and rewinding arm are suitable for slitting and wrapping different materials such as paper and plastic film. This process works and wraps the product with equal tension in the desired size and compactly through rewinding. The rewinding process stops automatically when the desired size is reached. Equipped with an intelligent control panel, this advanced system machine offers:
Frequency speed control, microcomputer PLC control, photoelectric correction device with automatic meter counting feature, alarm with automatic stop, and digital display for tension control. The machine is suitable for cutting, slitting, and rewinding large-sized reel materials such as plastic films, paper, protective and laminated paper, coated cardboard, synthetic paper, medical film, and all kinds of paper-plastic composite materials.
Features and Advantages of High Speed Paper Reel Slitting and Rewinding Machine
High Speed: The machine allows for fast slicing and winding of large paper reels by operating at high speed. It can operate at a speed of 350 meters per minute, saving production time.
Precise Slitting: The machine can slice paper reels very thinly and precisely, ensuring high quality of each slice and reducing loss rate during production.
Automatic Wrapping System: Sliced paper pieces are automatically wrapped neatly. This system minimizes manual intervention and increases efficiency.
Flexible Adjustment Options: It allows working with different thicknesses and types of paper, film, and plastic materials, providing production suitable for different sectors' needs.
High Efficiency: Provides a fast, flexible production process with automatic feeding, rewinding, and stop system. These features increase businesses' production capacity.
Advanced Technology and Control: Equipped with a computerized PLC control system, photoelectric detection, digital displays, and alarm systems.
Low Labor Requirement: High-speed reel slitting machines have automatic systems and can operate with a minimum number of operators.
Applications of High Speed Paper Reel Slitting and Rewinding Machine
Paper Production: Used for hygienic, smooth, and even tension winding of small pieces cut from large reels.
Packaging Sector: Used in preparing paper packaging required in the food, cosmetics, and cleaning sectors.
Printing Industry: Used to slice paper in sizes suitable for printing machines.
| Model | KHPSPR-1100 | KHPSPR-1300 | KHPSPR-1600 |
|---|---|---|---|
| Maximum Unwinding Diameter | 1600 mm | 1600 mm | 1600 mm |
| Maximum Slitting Width | 1000 mm | 1200 mm | 1500 mm |
| Maximum Rewinding Diameter | 1500 mm | 1500 mm | 1500 mm |
| Minimum Rewinding Width | 30 mm | 30 mm | 30 mm |
| Slitting Speed | 10 - 350 m/min | 10 - 350 m/min | 10 - 350 m/min |
| Slitting Precision | ±0.2 mm | ±0.2 mm | ±0.2 mm |
| Total Power | 25 kW | 28 kW | 35 kW |
| Electricity | 380V / 50Hz (Three-phase) | 380V / 50Hz (Three-phase) | 380V / 50Hz (Three-phase) |
| Air Pressure Requirement | Max. 5.5 kg/cm² × 0.5 m³/min | Max. 5.5 kg/cm² × 0.5 m³/min | Max. 5.5 kg/cm² × 0.5 m³/min |
| Machine Weight | Approx. 10500 kg | Approx. 11000 kg | Approx. 11800 kg |
| Machine Size | 9000 × 3550 × 2510 mm | 9000 × 3750 × 2510 mm | 9000 × 4050 × 2510 mm |
