| Advertisement No: | #00218212 |
| Category: | Injection Machine |
| Brand: | İkaros Makine |
| Model Type: | 1300T |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Chinese |
| Location: | Topçular Mah. / Eyüp / İstanbul |
| Sales Detail: | Negotiated |
| Delivery Status: | Made to Order |

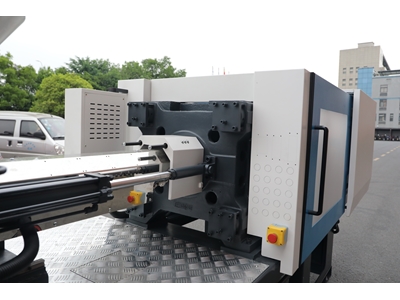

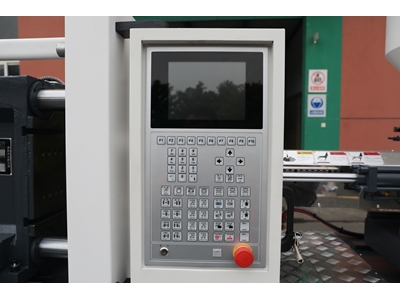

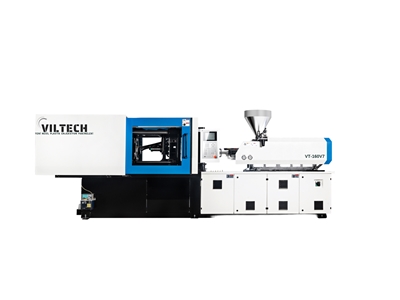

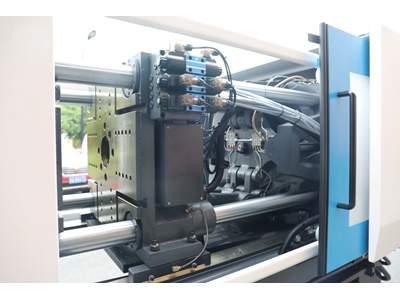

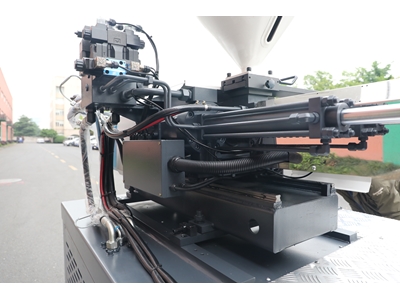

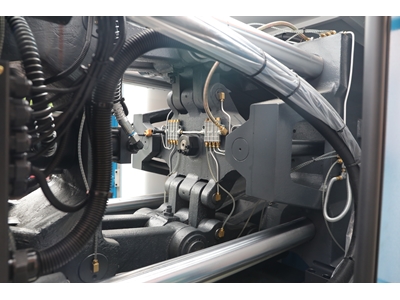

VİLTECH X Ikaros Machine 1300T
1300 Ton Plastic Injection Machine
Ikaros Machine 1300T Technical Specifications:
DESCRIPTION
DESCRIPTION
UNIT
VT-1300V7
CLAMPING UNIT
Clamping Force
Clamping Force
ton
1300
Max. daylight
Max. daylight
mm
2550
Clamping Stroke
Clamping Stroke
mm
1300
Clearance Between Tie Bars
Clearance Between Tie Bars
mm
1250х1250
Min Mould Dimension
Min Mould Dimension
Mm
875х875
Mould Thickness Range
Mould Thickness Range
mm
550-1250
Ejector Force
Ejector Force
ton
21.5
Ejector stroke
Ejector stroke
mm
350
No. of Ejector Pins
No. of Ejector Pins
unit
29
System Pressure
System Pressure
MPa
17.5
INJECTION UNIT
International Specification
International Specification
11800
Screw diameter
Screw diameter
mm
108
116
125
Theoretical Shot Volume
Theoretical Shot Volume
cm3
5497
6341
7363
Shot Weight (PS)
Shot Weight (PS)
g
5002
5770
6700
Length/Diameter Ratio
Length/Diameter Ratio
L/D
23.1
21.6
20
Injection Pressure
Injection Pressure
M Pa
215
187
161
Injection Rate
Injection Rate
cm3/s
748
863
1002
Injection Stroke
Injection Stroke
mm
600
Screw Speed
Screw Speed
RPm
101
GENERAL INFORMATION
Major Motor
Major Motor
kW
50+62
No. of Heater Zones
No. of Heater Zones
unit
6+1
Heater Input Power
Heater Input Power
kW
58
Oil Tank Capacity
Oil Tank Capacity
L
1300
Net Weight
Net Weight
ton
58
Machine Dimension(L*W*H)
Machine Dimension(L*W*H)
M
12.6x2.72x2.88
