135 ton x 3100 mm CNC Hydraulic Press Brake

Advertisement No:	#00257076
Category:	Press Brake
Brand:	Cronosstech
Model Type:	HPB B135-3100
Product Type:	For Sale
Product Status:	New
Origin:	Turkey
Location:	İkitelli OSB Mah. / Başakşehir / İstanbul
Warranty Status:	1 Yıl Guaranteed
Sales Detail:	Suitable for Leasing, Bank Transfer, Negotiated
Delivery Status:	45 Day

Price:

51,000.00 +VAT

Min. Sipariş 1 Piece

Send Inquiry

Purchasing Tips

Protect your privacy, review the product descriptions...

Contact the seller

CronossTech Makina

CronossTech Makina Dış Tic. Ltd. Şti.

Advisor : Volkan Ö.

Go to the store

Add to My Favorite Store

All Ads

+90 544 302 00 **

Send Message

Fast Chat

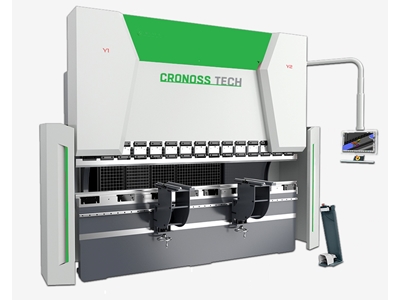

135 Ton x 3100 mm CNC Hydraulic Press Brake

135 Ton x 3100 mm CNC Hydraulic Press Brake is designed to offer high precision, repeatability, and efficiency in sheet metal bending operations. Its steel construction body, powerful hydraulic system, and CNC-controlled structure ensure reliable processing of sheets in various thicknesses and sizes.

The ESA S630 CNC control unit, servo motor-driven X+R axis back support system, and CNC-controlled crowning system achieve high accuracy in complex bending operations. The European type quick die clamping system and standard Promecam die structure allow for fast and practical die changes.

The AKAS II front laser safety system, PLC-controlled light barriers, and equipment compliant with CE safety standards maximize operator safety, while the energy-saving Standby function contributes to reducing operating costs.

Standard Equipment

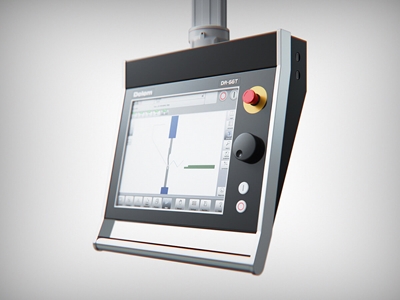

ESA S630 CNC control unit
135 ton bending capacity
3100 mm bending length
Servo motor-driven X+R axis CronossTech back support system
X axis 750 mm movement range
R axis 250 mm movement range
±0.03 mm back support positioning accuracy
2 manually adjustable back support fingers

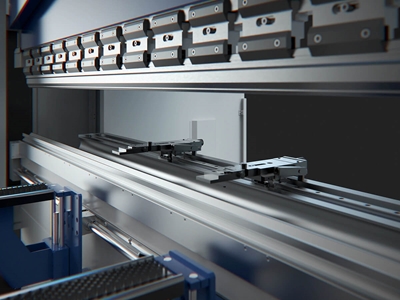

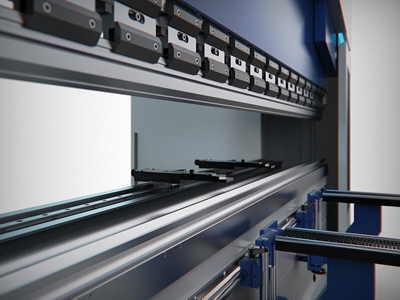

European type Promecam E7 quick upper die clamping system
CronossTech European type narrow lower die table
Standard upper die (ES1260)
Standard four-channel lower die (ES2067)
CNC controlled CronossTech cam crowning system
AKAS II front laser safety system
PLC controlled light barriers
GIVI linear scale system
Siemens drivers
Schneider or Siemens electrical equipment
Hoerbiger (HAWE) hydraulic block
Eckerle hydraulic pump
LED working lighting
Sliding type 2 front sheet support arms
Single foot pedal
Energy-saving Standby mode
Safety equipment compliant with CE standards

Technical Specifications

Feature	Value
Bending Force	135 Ton
Bending Length	3100 mm
Distance Between Columns	2600 mm
Piston Stroke	260 mm
Open Height (Daylight)	465 mm
Throat Depth	410 mm
Table Height	940 mm
Approach Speed	210 mm/s
Bending Speed	10 mm/s
Return Speed	135 mm/s
Oil Tank Capacity	180 L
Main Motor Power	11 kW
Back Support X Axis	750 mm / 300 mm/s
Back Support R Axis	250 mm / 250 mm/s
Machine Weight	7,750 kg

Areas of Use

Sheet metal processing facilities
Machine manufacturing industry
Steel construction production
Electrical panel production
Automotive sub-industry
Agricultural machinery production
Defense industry
Ventilation and air conditioning systems
Metal furniture production
Industrial manufacturing facilities

Advantages

High bending precision and repeatable production
Fast positioning with servo-controlled back support system
Homogeneous bending angle thanks to CNC controlled crowning system
Wide die compatibility with European type standard die system
Strong hydraulic structure and long-lasting components
Standby mode providing low energy consumption
Advanced laser safety system increasing operator safety
Production compliant with CE standards
Robust body structure suitable for industrial use

Warranty

12 Month Manufacturer Warranty

Note: The machine height is stated as 298 mm in the technical data. It is believed that this value should be 2980 mm. This information should be verified before the advertisement is published.

Bending Capacity 135 TON

Bending Length 3100 MM

Number of Axis 4
