Advertisement No: | #00251158 |
Category: | 6 Unit PVC Edge Banding Machine |
Brand: | Mova Press |
Model Type: | KB 80 |
Product Type: | For Sale |
Product Status: | New |
Origin: | Turkey |
Delivery Status: | In stock |
Location: | Mansurlu Mah. / Aladağ(Karsantı) / Adana |
Sales Detail: | Bank Transfer, Negotiated |

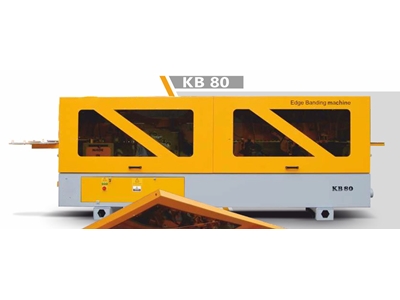

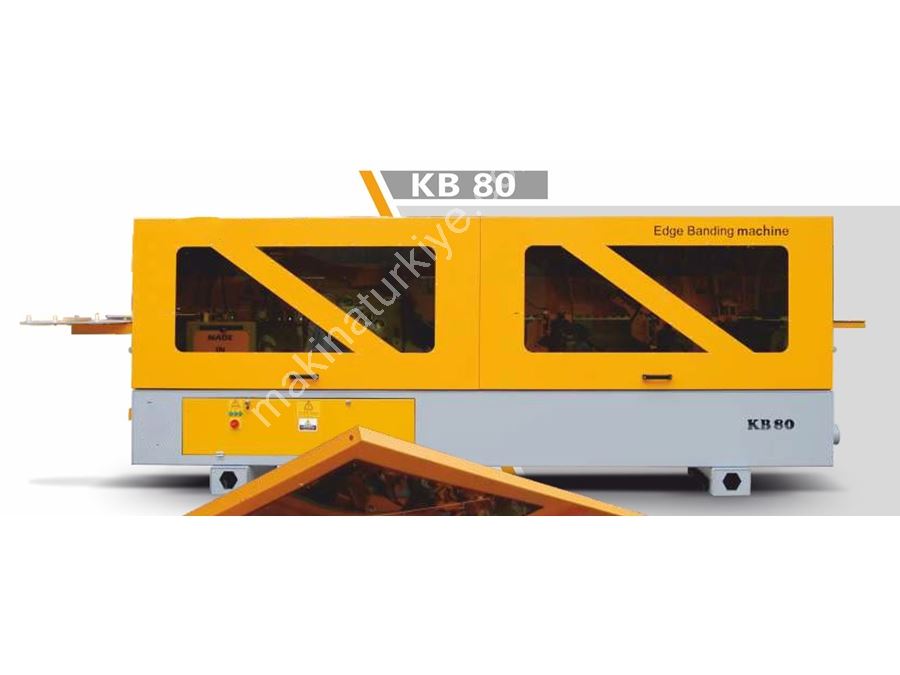

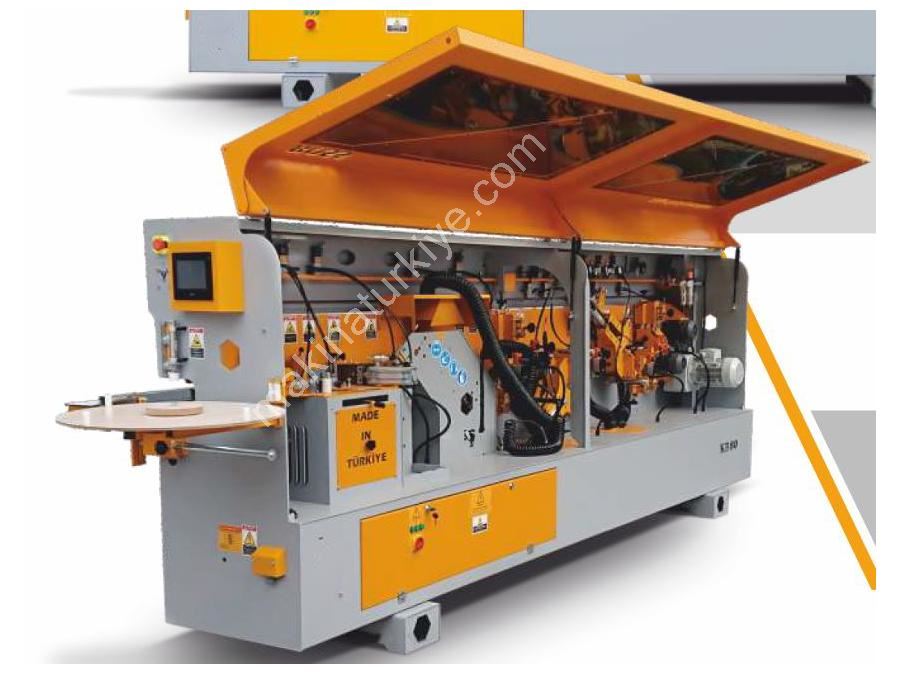

14000 mm/min 6 Unit Edge Banding Machine An edge banding machine is a specialized woodworking tool used to apply edge bands—typically made of PVC, ABS, melamine, or wood veneer—to the exposed edges of wood panels such as MDF, chipboard, or plywood. It ensures a smooth, professional, and durable finish, ideal for modern furniture production. Key Features Automatic Gluing & Banding: Trimming & Buffing Units: Corner Rounding (Optional): Polishing Section: Why Use It? Enhances the visual appeal of furniture Protects panel edges from moisture and damage Improves the product's lifespan and durability Ensures a professional and high-end finish Technical Specifications Feature Value Glue heating time 25 min Band thickness for gluing 0.40 mm - 3 mm Band gluing height 45 mm Dimensions of the parts to be glued 80 mm - 150 mm Operating speed 14000 mm/min (14 m) Start-end cutting group 2x 0.25 kW, 12000 rpm Start-end cutting saws 3.2x20x100 mm Bottom-top milling group 2x 0.37 kW, 12000 rpm Bottom-top milling blade 6 Jaw R3 Bottom-top trimming group 2x 0.37 kW, 12000 rpm Bottom-top trimming blade 6 Jaw R4 Radius scraping thickness 0.40 mm / 2 mm R3 Bottom-top polishing group 2x 0.25 kW, 3000 rpm Total power 9 kW Grid voltage 380 V ~ 50 Hz Reducer speed 18 rpm Pneumatic bar pressure 8 Atü Glue tank volume 5 kg Dust extraction motor 0.75 kW, 3000 rpm Machine Dimensions Dimension Value Length 4600 mm Height 1450 mm Width 700 mm Weight 1300 kg (approx.)
Applies hot melt adhesive and presses the band securely onto the panel edge.
Removes excess banding material and smoothens the edges for a clean finish.
Rounds off sharp corners to enhance both safety and aesthetics.
Provides a final polished and glossy appearance to the edges.
