15W UV Laser Marking Machine

Advertisement No:	#00257668
Category:	Laser Marking Machine
Brand:	Lazermarka
Model Type:	L-LM-004
Product Type:	For Sale
Product Status:	New
Origin:	Turkey
Location:	Yukarıdudullu Mah. / Ümraniye / İstanbul
Warranty Status:	2 Yıl Guaranteed
Sales Detail:	Bank Transfer, Credit Cart, Negotiated
Delivery Status:	In stock

Price:

Ask For Price +VAT

Min. Sipariş 1 Piece

Send Inquiry

Purchasing Tips

Protect your privacy, review the product descriptions...

Contact the seller

Karma Kodlama Teknolojileri

Karma Kodlama Makinaları San. Tic. Ltd. Şti

Advisor : Burak B.

Go to the store

Add to My Favorite Store

All Ads

+90 216 368 50 **

+90 553 387 49 **

Send Message

Fast Chat

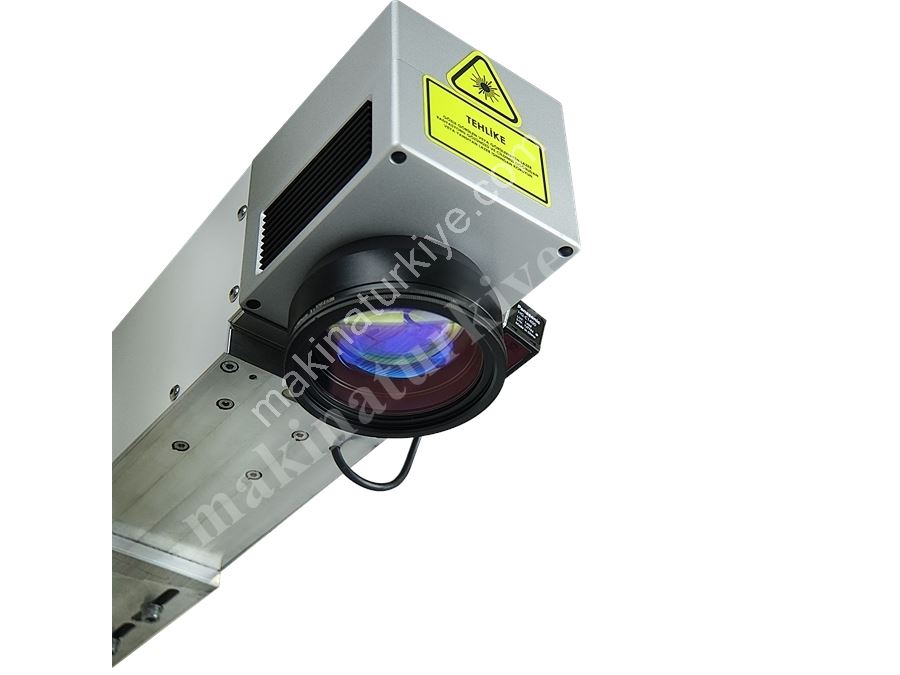

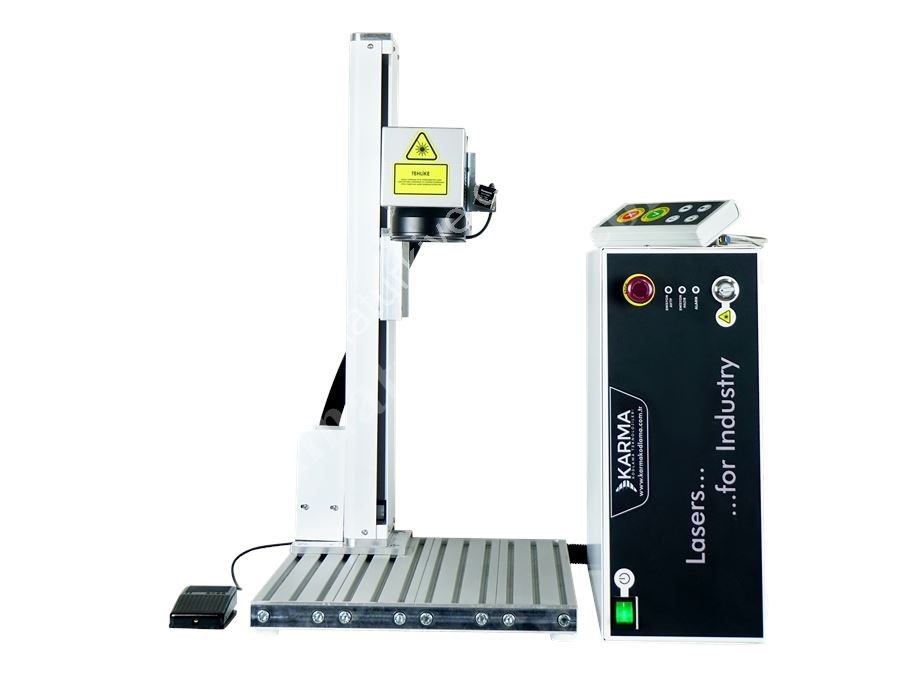

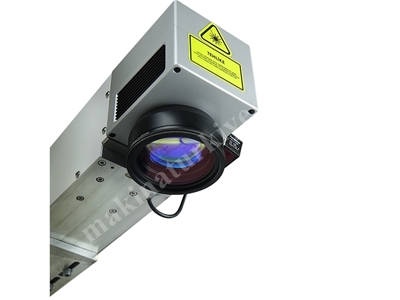

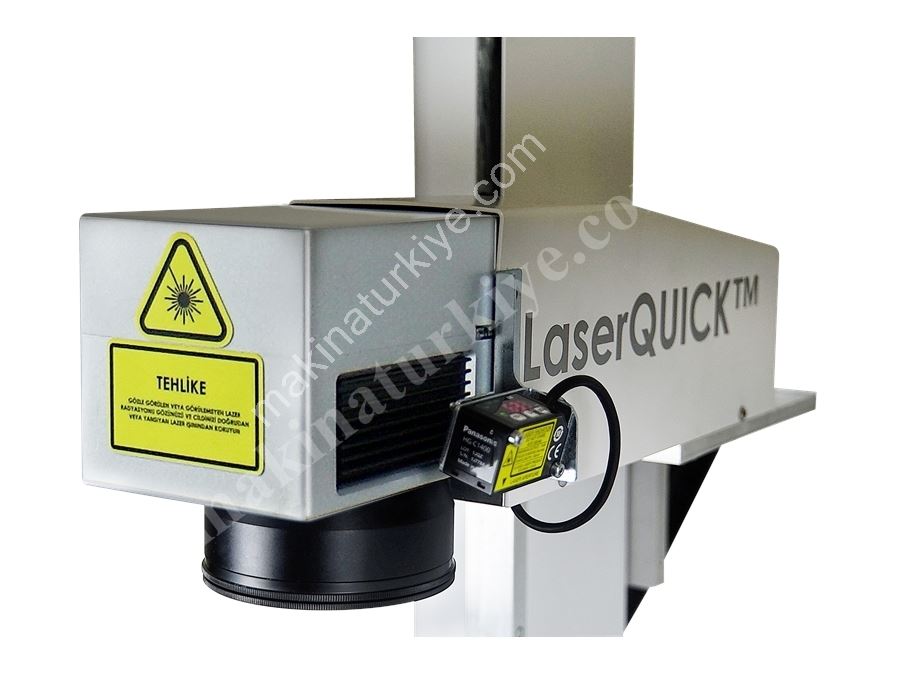

15W UV Laser Marking Machine

About

It is a professional industrial UV laser marking machine developed for permanent marking of sensitive and heat-sensitive materials.
Thanks to the 355 nm DPSS-UV laser technology, it performs high-resolution marking on plastics, glass, electronic components, and medical products without damaging the surface.
With 15W laser power, it offers strong and stable performance in medium and high-speed production lines.
It can mark QR Codes, DataMatrix, barcodes, serial numbers, dates, logos, and variable data in real-time.
Thanks to the motorized and fully automatic focusing system, it provides fast and precise focusing on products at different heights.
Its industrial water-cooled structure offers long-term stable and uninterrupted working performance.
It can be easily integrated into production lines and automation systems with USB and External I/O connections.
Thanks to the ergonomic control panel, it provides safe and easy usage for the operator.

Areas of Use

Electronic component manufacturing
PCB board manufacturing
Medical device manufacturing
Plastic packaging industry
Cosmetic products
Glass product marking
Cable and connector manufacturing
Laboratory equipment
Precision plastic parts
Promotional products
White goods and electronics industry

Technical Specifications

Feature	Value
Laser Technology	355 nm DPSS-UV Industrial Water-Cooled Laser
Laser Power	15 W
Marking Area	70×70 mm, 110×110 mm, 150×150 mm, 170×170 mm, 200×200 mm
Operating Frequency	50 – 500 kHz
Marking Speed	Up to 1,000 characters/sec*
Laser Pulse Duration	15 ns / 50 kHz
Total Weight	45 kg
Connections	USB, External I/O
Focusing System	Motorized and Fully Automatic Focusing
Control Unit	Laser Activation and Emergency Stop Buttons
Control Panel	Start, Stop, Up, Down, LED and Pointer Controls
Cooling System	Industrial Water-Cooled

*Marking speed may vary depending on character size and application conditions.

Highlighted Advantages

It performs precise marking without causing deformation on heat-sensitive products.
Thanks to the 15W laser power, it operates efficiently in medium and high-speed production lines.
It provides high-resolution marking on plastics, glass, and electronic products.
With motorized automatic focusing, it automatically adapts to different product heights.
It supports QR Code, DataMatrix, barcode, and serial number applications.
It can be easily integrated into automation systems with USB and External I/O connections.
Thanks to its industrial water-cooled structure, it offers stable performance for a long time.
It reduces operating costs with low maintenance needs.

Why Should You Choose the 15W UV Laser Marking Machine?

The 15W UV Laser Marking Machine is developed for businesses that want precise marking along with high production speed. With higher laser power compared to 5W and 10W models, it can perform quality marking in shorter cycle times. It increases production quality by providing high-resolution marking on plastics, glass, electronics, and medical products without burning the surface or causing color change. Its fully compatible structure with automation systems allows it to be safely used in Industry 4.0 production lines.

Frequently Asked Questions

What materials can the 15W UV laser be used on?

It can be used on glass, plastic, acrylic, silicone, electronic boards (PCB), ceramics, medical products, and many sensitive materials.

What is the advantage over the 10W model?

The 15W model can mark faster due to its higher laser power and provides higher efficiency in intensive production lines.

Can it mark QR Codes and DataMatrix?

Yes. It can perform QR Code, DataMatrix, barcode, serial number, date, and logo applications with high precision.

Can it be connected to automation systems?

Yes. It can be easily integrated into PLC and production automation systems with USB and External I/O connections.

Does it have an automatic focusing system?

Yes. A motorized and programmable fully automatic focusing system is provided as standard.

Shipping and Delivery Information

The product is shipped in accordance with safe transport standards.
Installation, commissioning, and operator training can be carried out by expert technical teams.
Production line integration and software support are provided.
After-sales technical service and spare parts support are provided.
It can be configured on a project basis with different marking areas and laser power options.
