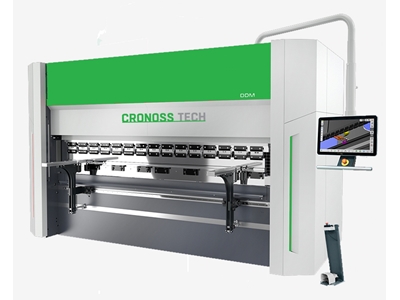

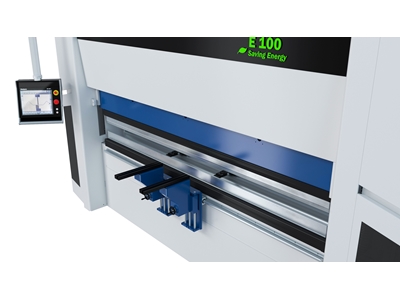

160 Ton x 3100 mm Servo Electric Press Brake

General Description

160 Ton x 3100 mm Servo Electric Press Brake is developed for industrial applications requiring high precision, energy efficiency, and superior bending performance. Thanks to the servo electric drive system, it offers lower energy consumption, quieter operation, and high positioning accuracy compared to traditional hydraulic systems.

The ESA S640 CNC control unit provides high repeatability in mass production with 4-axis CNC control (Y1-Y2-X-R), a servo motor-driven X+R axis back support system, and CNC-controlled crowning system. The O-type body design offers a wide working area, while the European type Promecam mold system ensures full compatibility with different mold options.

It offers safe operation in compliance with CE standards with the AKAS II or DSP front laser safety system and PLC-controlled light barriers.

Standard Equipment

ESA S640 CNC control unit
15-inch touch screen
2D graphic programming
4-axis CNC control (Y1, Y2, X, and R)
Servo motor-driven CronossTech X+R axis back support system
X axis movement distance of 750 mm
R axis movement distance of 250 mm
±0.03 mm back support positioning accuracy
2 manually adjustable, 3-stage back support fingers
European type Promecam E7 quick upper mold clamping system
CronossTech European type narrow lower mold table
Standard upper mold ES1281
Standard lower mold ES2067 (4 V channels)
CNC controlled CronossTech cam crowning system
O type throat structure
2 sliding type front sheet support arms
GIVI linear scale system
ESA servo motor and driver system
Schneider or Siemens electrical equipment
Fiessler PLC system
Electrical panel compliant with VDE standards
LED working lighting
Single foot pedal
AKAS II or DSP front laser safety system
PLC controlled light barriers
Safety equipment compliant with CE standards

Technical Specifications

Feature	Value
Bending Force	160 Ton
Bending Length	3100 mm
Distance Between Columns	3345 mm
Piston Stroke	300 mm
Open Height (Daylight)	505 mm
Throat Structure	O Type
Table Height	900 mm
Approach Speed	95 mm/s
Bending Speed	10 mm/s
Return Speed	95 mm/s
Main Motor Power	2 × 11 kW Servo Electric Motor
Back Support X Axis	750 mm / 250 mm/s
Back Support R Axis	250 mm / 100 mm/s
Machine Dimensions (W × D × H)	4750 × 2100 × 2700 mm
Machine Weight	9,500 kg

Areas of Use

Sheet metal processing industry
Machine and equipment manufacturing
Automotive and sub-industry
Electrical panel manufacturing
Steel construction manufacturing
Agricultural machinery manufacturing
Ventilation and air conditioning systems
Metal furniture manufacturing
Defense industry
Precision sheet bending applications

Advantages

High energy efficiency with servo electric drive system
Lower maintenance needs compared to hydraulic systems
High speed and precision
Quiet operation
Low operating costs
±0.03 mm precision servo back support system
CNC controlled crowning system
European type standard mold system
O type body providing a wide working area
Safety equipment compliant with CE standards
Robust steel construction body suitable for industrial use

Warranty

12 Month Manufacturer Warranty

Bending Capacity 160 TON

Bending Length 3100 MM

Number of Axis 4
