| Advertisement No: | #00251830 |
| Category: | Mud Sieve |
| Brand: | SKC Makina |
| Model Type: | SKD 20 |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Delivery Status: | In stock |
| Location: | Cami Mah. / Tuzla / İstanbul |
| Sales Detail: | Bank Transfer, Negotiated |

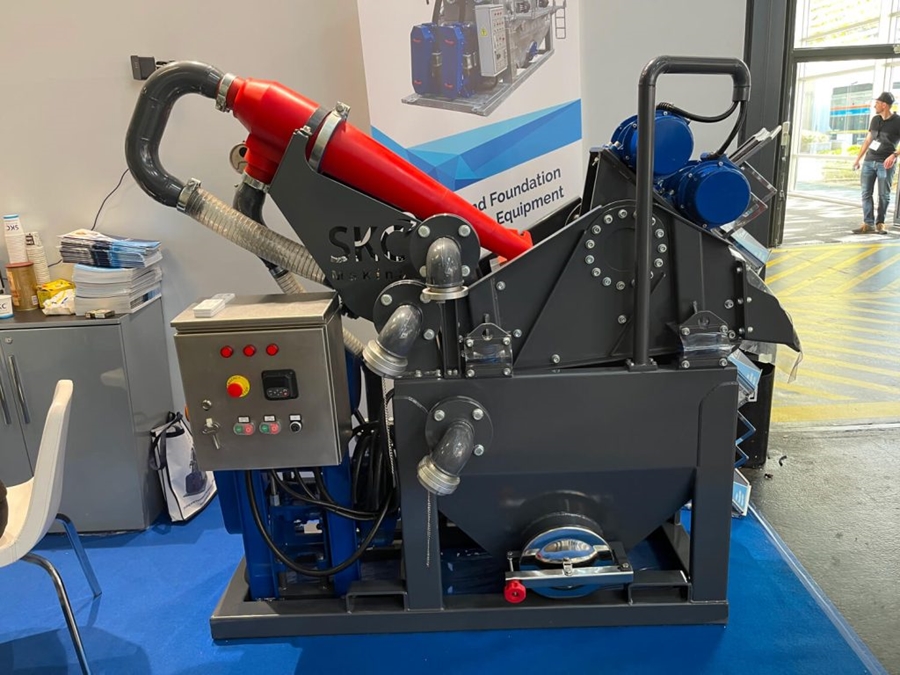

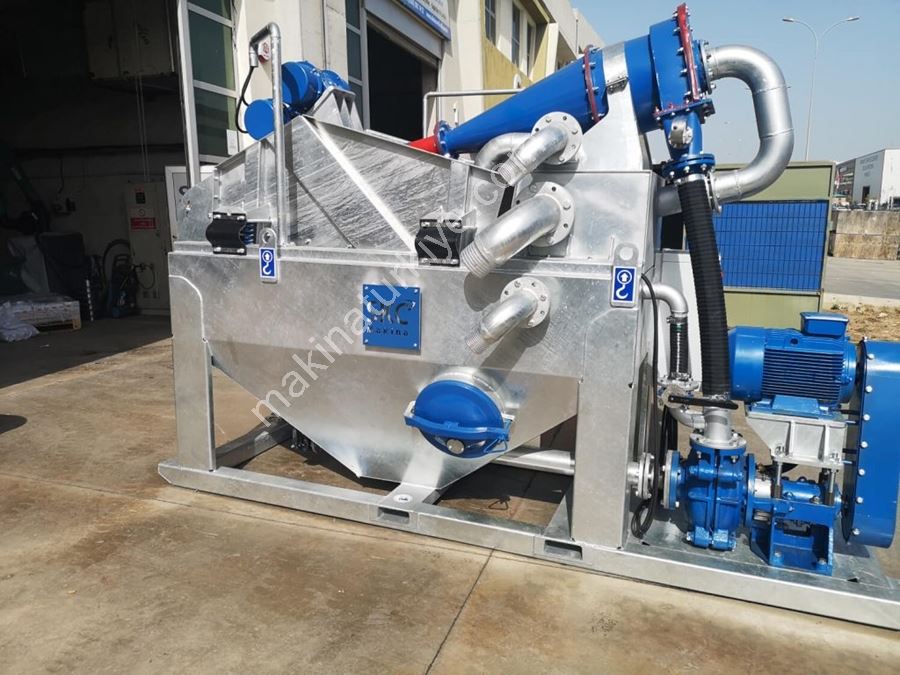

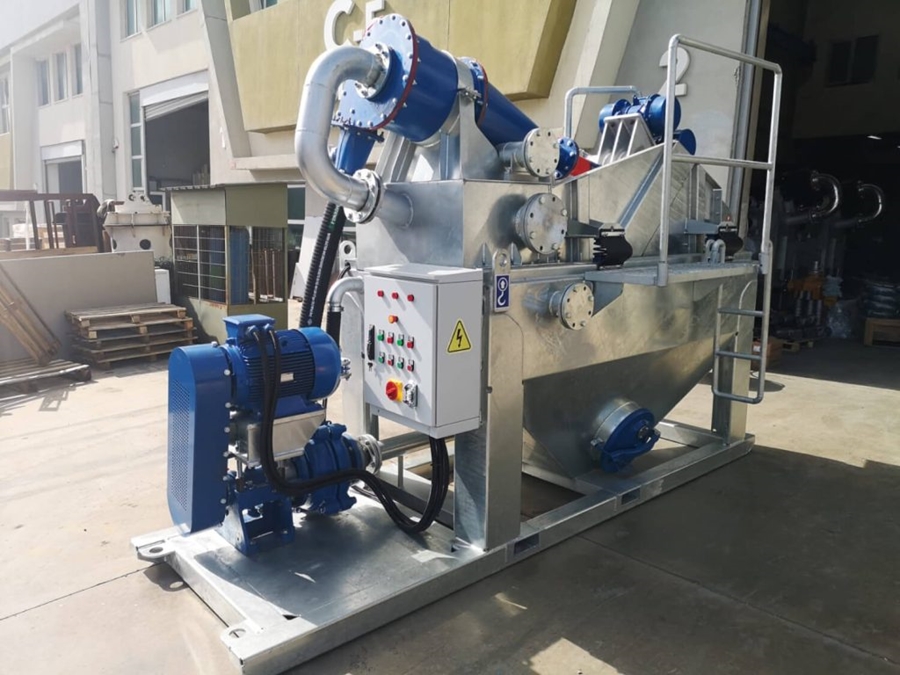

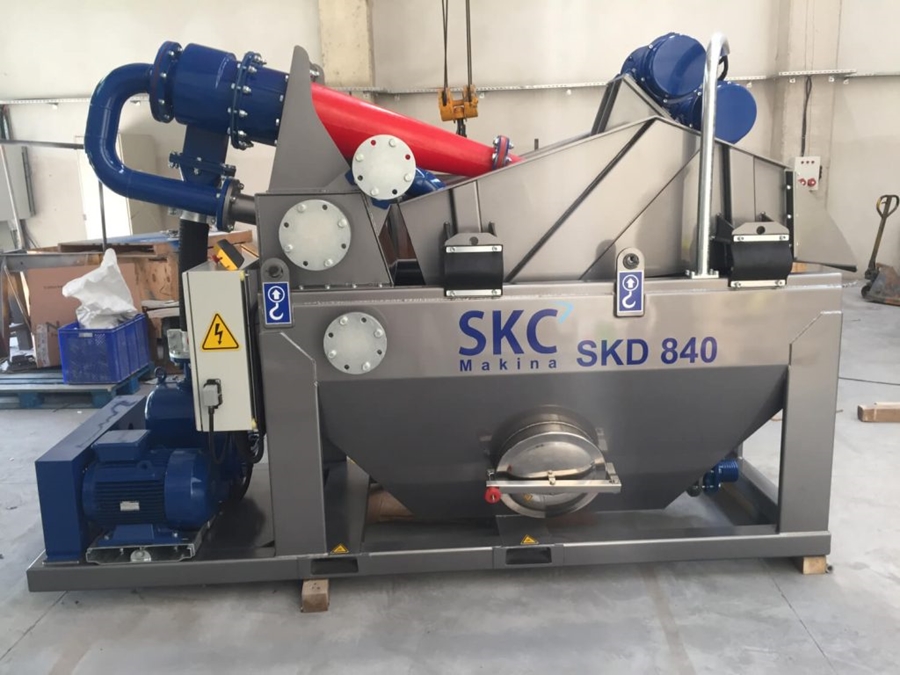

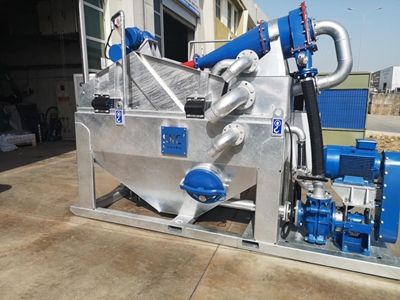

20 m³/h Desanders Particle Mud Sieve Desanders are used to separate sand and other particles from drilling muds. During drilling and excavation operations, drilling mud (bentonite) mixes with pollutants such as sand and clay. When the drilling process is completed, the drilling mud should be processed and cleaned by separating these substances from the mixture. This way, clean mud can be used for the next operation and the drilling mud becomes ready for concreting. The first process takes place on a steel plate sieve where 4 mm materials are separated. The second process occurs by pumping the mud into the hydrocyclone. Here, 50 micron particles are separated. SKC Makina produces three types of sand separators named SKD2200, SKD4400, and SKD840 according to their capacities. Model / Type SKD 20 SKD 840 SKD 2200 SKD 3000 SKD 4400 Pump Capacity m³/h 20 60 140 180 250 Hydrocyclone mm Ø125 Ø250 Ø350 Ø430 2×Ø350 mm Total Power kW/V/Hz 7 kW / 380V / 50Hz 13.2 kW / 380V / 50Hz 24.2 kW / 380V / 50Hz 32.4 kW / 380V / 50Hz 49 kW / 380V / 50Hz Cut Diameter D50 μm 30 μm 40 μm 50 μm 50 μm 50 μm Sand Content Before Treatment % ~10 ~10 ~10 ~10 ~10 Sand Content After Treatment % ~2-4 ~2-4 ~2-4 ~2-4 ~2-4 Dimensions W×L×H mm 770×1810×1730 1250×3260×2070 2000×4000×2570 2100×4280×2570 2200×4510×2570 Weight kg ~700 ~1900 ~2500 ~2800 ~4200

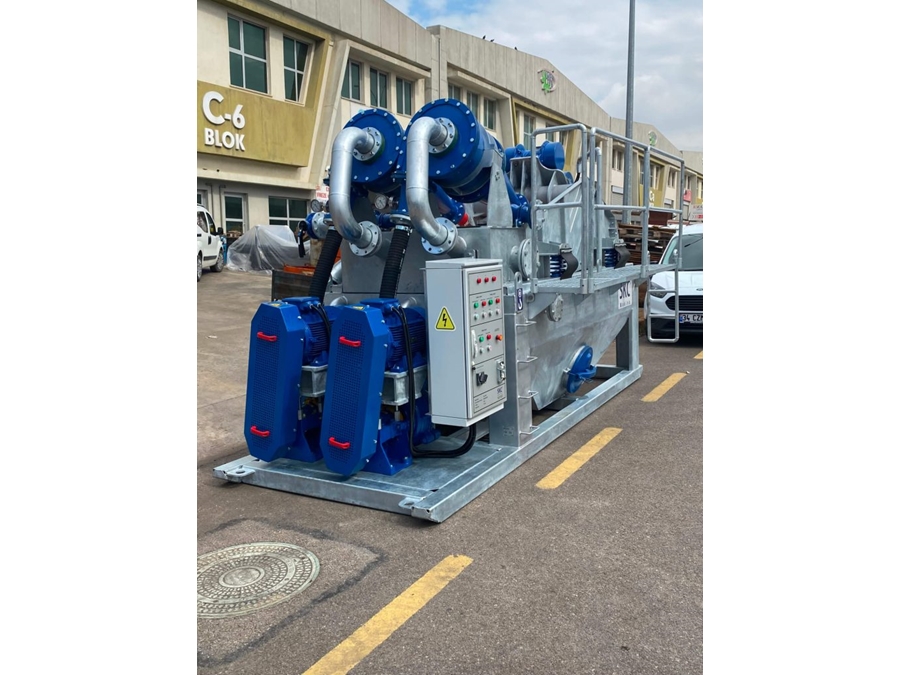

SKC Makina also manufactures dual cyclone sand separators called SKD 4400D, known as desiltered sand separators. The first cycloning is the same as the first and second process of the desander. In this process, 50-micron particles are separated. The mud is then pumped into small hydrocyclones for the second cycloning. After this process, the separation will be of 20-30 microns.
