| Advertisement No: | #00253642 |
| Category: | Pumping Stations |
| Brand: | ErichHahn |
| Model Type: | HPDU-200/3 |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | 75.Yıl Mah. / Odunpazarı / Eskişehir |
| Sales Detail: | Bank Transfer, Credit Cart, Negotiated |
| Delivery Status: | Made to Order |

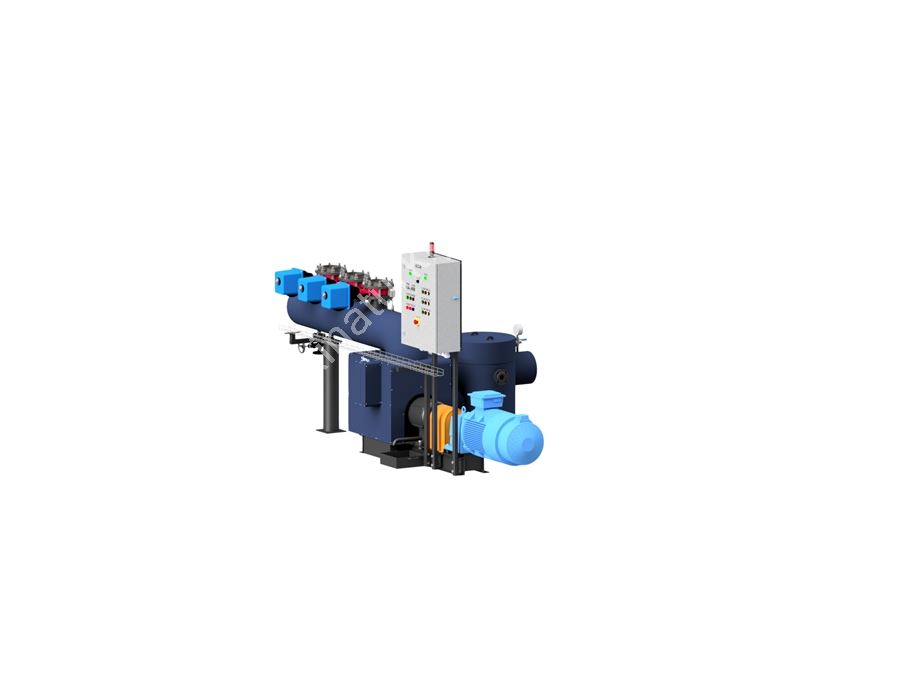

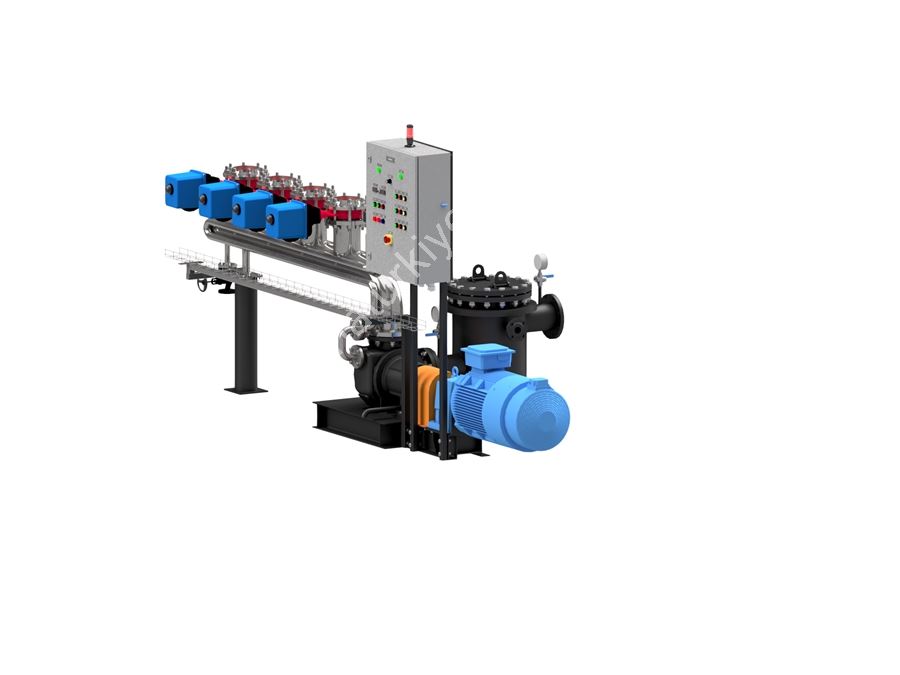

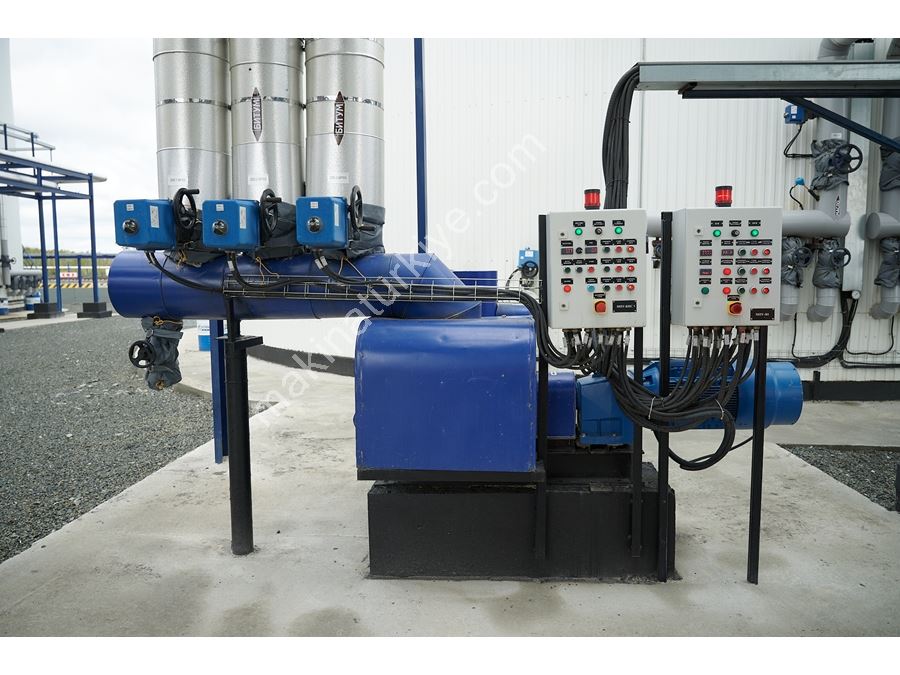

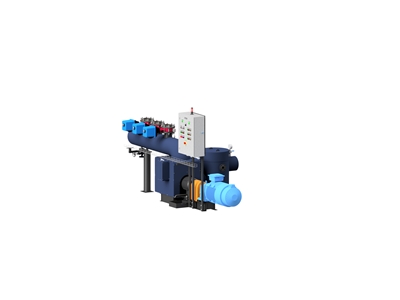

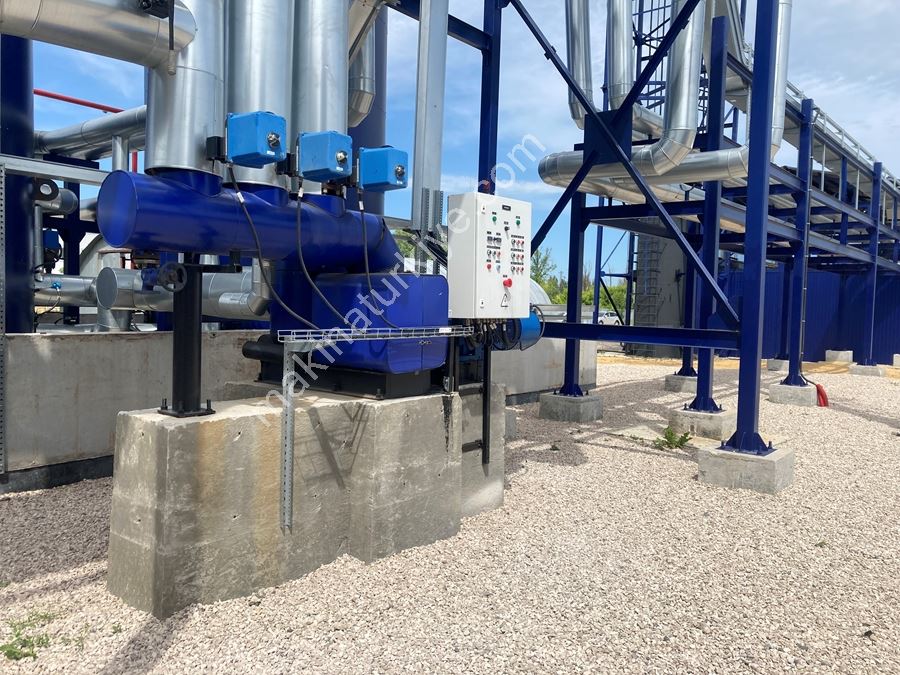

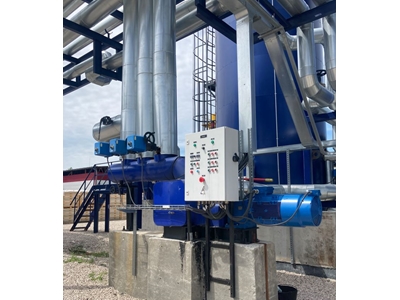

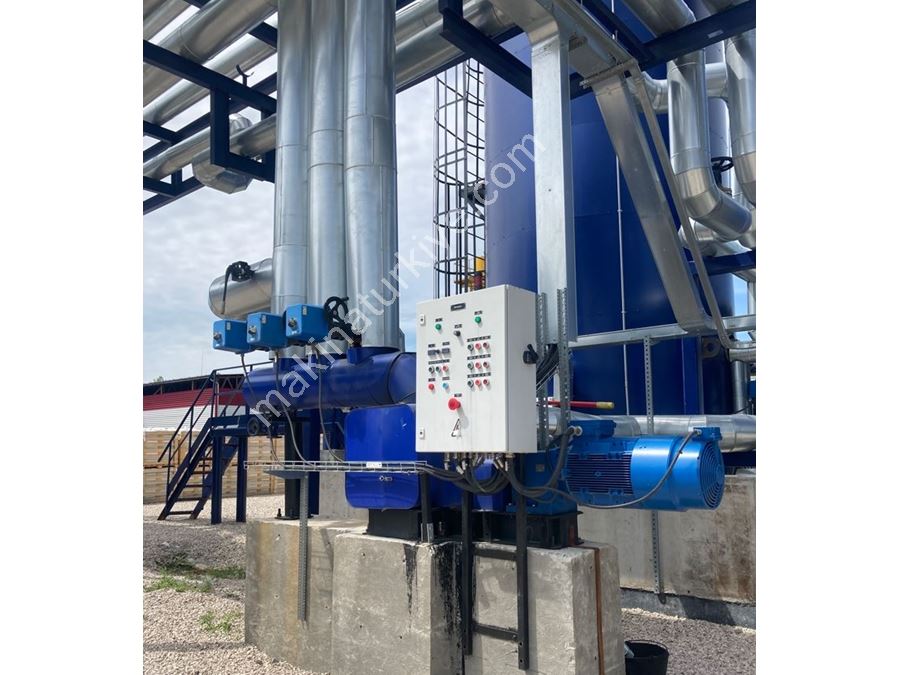

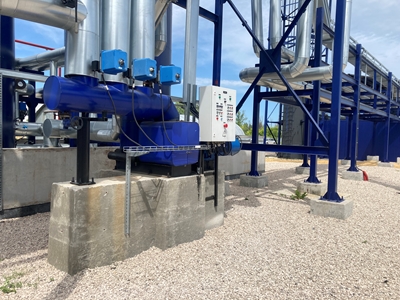

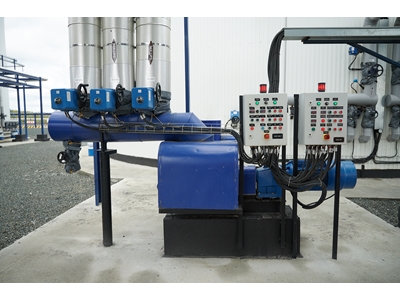

ErichHahn HPDU is designed for the continuous pumping of heavy oil at operating temperatures not exceeding 200°C and viscosities between 20 and 1000 cSt. Advantages of ErichHahn HPDU Many different models of ErichHahn HPDU are available. Their designs and components are similar, but they differ in capacity, overall dimensions, and components. Purpose of Use The unit consists of a distributor with 3 or 4 outlets, a gear pump, a gear motor, a heavy oil filter, a control panel, an oil heating system, and thermal insulation. All equipment is compactly mounted on a frame. 3 or 4 Outlet Distributor The Automatic Process Control System (APCS) remotely controls the flow using electrically actuated butterfly valves. Gear Pump The internal gear rotary pump is designed for the pumping of heavy oil. The pump provides a continuous flow to reduce the vibration level and foaming of the pumped oil. The pump has an integrated safety valve for protection against excessive pressure. Heavy Oil Filter The filter is designed to remove mechanical impurities from the pumped product. The operating temperature does not exceed 200°C. The filter consists of a filter body, a removable cover, and a filter element. Control Panel The operation panel of the control panel contains controls and indicators related to the operation of the unit. The control panel is connected to the central control panel for communication with the frequency converter. The control of electrically actuated gate valves can be used to start the pump and adjust the speed settings. The basic operating parameters of the pump, the status of the gate valves, the presence of electrical network power, and the standby mode are provided as indicators. Automation The automation system of HPDU units uses remote I/O stations and is located in a heated and ventilated control panel (can be equipped with a PLC processor module if necessary). A frequency converter is used to control the motor. Remote control is performed via a SCADA system or Profinet I/O (Modbus TCP/RTU if necessary) protocol. Additionally, control can be done directly from the control panel in local mode. Heating and Insulation The pump and filter are heated with a thermal oil heating system. All units are covered with high-density thermal wool insulation and removable protective covers. HPDU Gear Motor The gear motor belonging to the manufacturer is designed to transmit and convert rotary motion to the gear pump via a flexible coupling. The frequency converter in the power equipment cabinet is designed to start the pump unit and change its performance. Operating environment Viscous and solidifying liquids External environmental conditions Medium Ambient temperature, °C -40 to +40 Maximum operating temperature, °C 200 Operating pressure, MPa 0.6 Number of distributor outlets 3 Gear motor Motor power, kW 55 Rotation speed, rpm 239 Current frequency, Hz 50 Electric voltage, V 380 Protection degree IP55 Coupling Torsional flexible coupling Pump Gear type Pump connection, DN, mm 200 Nominal capacity, m³/s 200 Safety valve Provided Filter Mesh Filter connection, DN, mm 200 Mesh size, mm 8 Maximum pressure loss (at 300 cSt), MPa 0.01 Permissible differential pressure, MPa 0.3 Automation system Remote I/O station Overall dimensions Length, L, mm 4900 Width, W, mm 1800 Height, H, mm 2000 Weight, kg 2600 Service life, year 10 Country of origin TurkeyErichHahn HPDU-200/3 Line Capacity Pumping Station
Distributes oil product flows to three or four outlets depending on the design of the unit.HPDU-200/3 Technical Specifications
