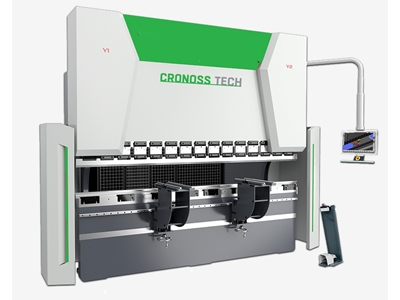

220 Ton x 4100 mm 4 Axis CNC Hydraulic Press Brake

General Description

220 Ton x 4100 mm 4 Axis CNC Hydraulic Press Brake is an industrial CNC press brake developed for bending long and heavy sheets with high precision. Its robust steel construction body, along with European-sourced hydraulic and electrical components, offers high performance, long service life, and reliable operation.

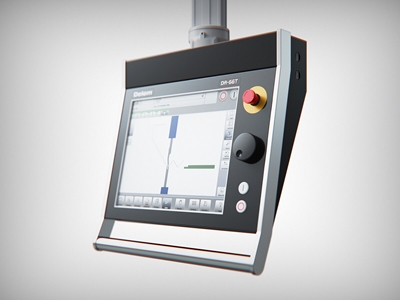

The ESA S630 CNC control unit, Y1-Y2-X-R 4 axis CNC control system, servo motor-driven X+R axis back support system, and CNC controlled crowning system enable precise and repeatable bending operations. The European type Promecam quick die clamping system facilitates die changes, while the AKAS II or DSP laser safety system maximizes operator safety.

Standard Equipment

ESA S630 CNC control unit
4 axis CNC control system including Y1, Y2, X, and R
Servo motor-driven CronossTech X+R axis back support system
X axis movement distance of 750 mm
R axis movement distance of 250 mm
±0.03 mm back support positioning accuracy
Manually adjustable, 3-stage 2 back support fingers

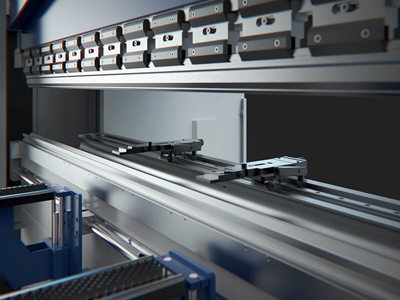

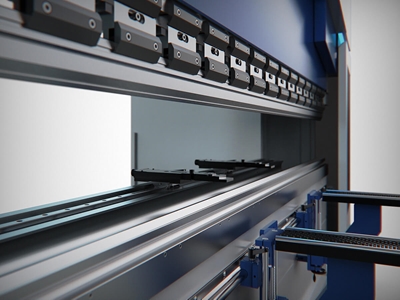

European type Promecam E7 quick upper die clamping system
CronossTech European type narrow lower die table
Standard upper die ES1281
Standard lower die ES2067 (4 V channels)
CNC controlled CronossTech cam crowning system
B Series open cabin design
GIVI linear scale system
Hoerbiger (HAWE) hydraulic block
Eckerle hydraulic pump
Siemens drive system
Schneider or Siemens electrical equipment
Electrical panel compliant with VDE standards
LED working light on the ram
2 sliding type front sheet support arms
Single foot pedal
Energy-saving Standby mode
AKAS II or DSP front laser safety system
PLC controlled light barriers
Safety system compliant with CE standards

Technical Specifications

Feature	Value
Bending Force	220 Ton
Bending Length	4100 mm
Distance Between Columns	3200 mm
Ram Stroke	260 mm
Open Height (Daylight)	465 mm
Throat Depth	410 mm
Table Height	955 mm
Approach Speed	180 mm/s
Bending Speed	10 mm/s
Return Speed	140 mm/s
Oil Tank Capacity	290 L
Main Motor Power	18.5 kW
Back Support X Axis	750 mm / 300 mm/s
Back Support R Axis	250 mm / 250 mm/s
Machine Dimensions (W × D × H)	5620 × 2530 × 3035 mm
Machine Weight	12,750 kg

Areas of Use

Sheet metal processing facilities
Steel construction production
Machine and equipment manufacturing
Automotive and trailer production
Energy sector equipment
Agricultural machinery production
Ventilation and air conditioning systems
Defense industry
Heavy industry manufacturing
General metal processing and contract manufacturing

Advantages

Precise and repeatable bending with 4 axis CNC control system
Servo motor-driven X+R axis back support system
CNC controlled crowning system
European type Promecam quick die clamping system
High positioning accuracy with GIVI linear scale system
Robust steel construction body
European-sourced hydraulic and electrical components
Energy-saving Standby mode
Safe operation with AKAS II or DSP laser safety system
Production compliant with CE standards

Warranty

12 Month Manufacturer Warranty

Bending Capacity 220 TON

Bending Length 4100 MM

Number of Axis 4
