| Advertisement No: | #00251844 |
| Category: | Mud Sieve |
| Brand: | SKC Makina |
| Model Type: | SKD 4400 |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Delivery Status: | In stock |
| Location: | Cami Mah. / Tuzla / İstanbul |
| Sales Detail: | Bank Transfer, Negotiated |

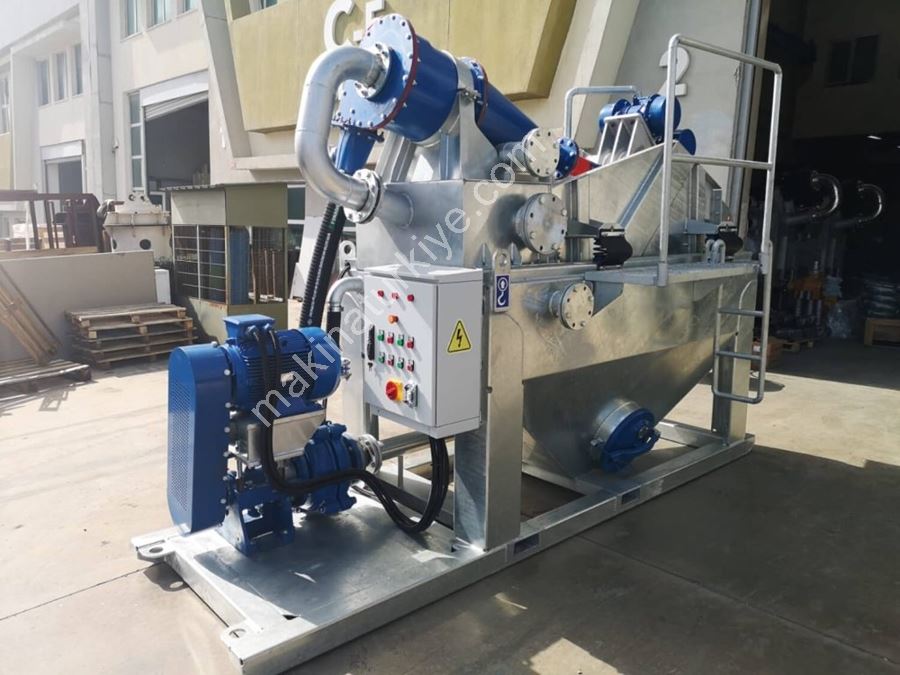

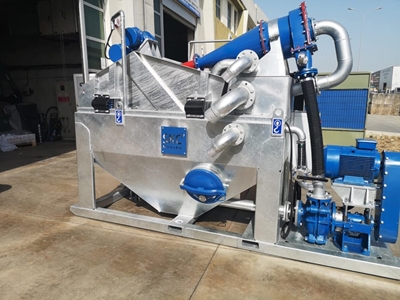

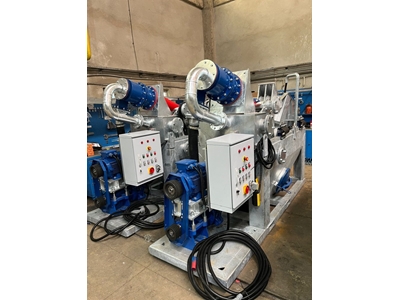

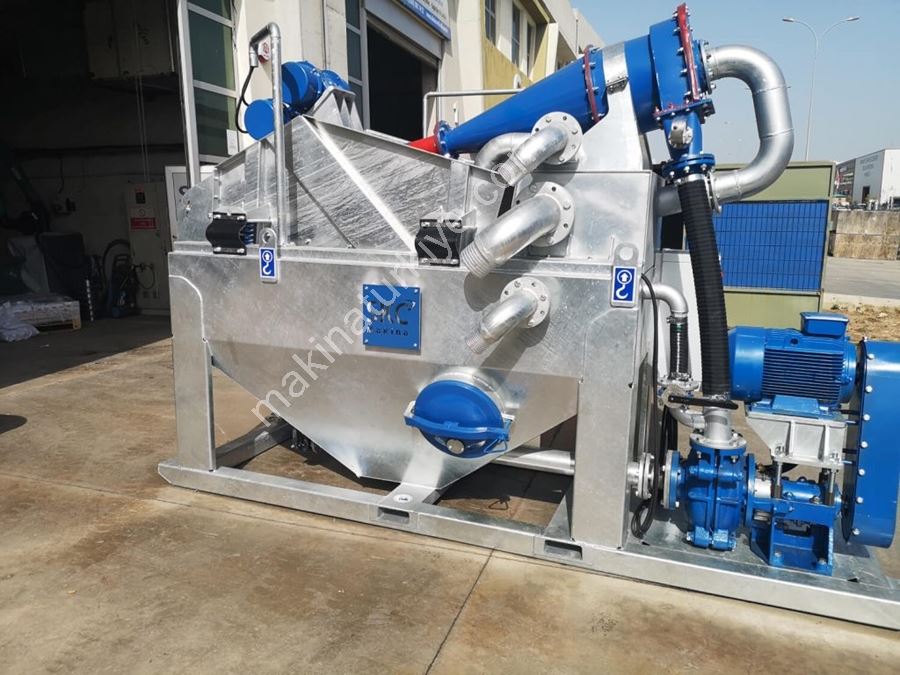

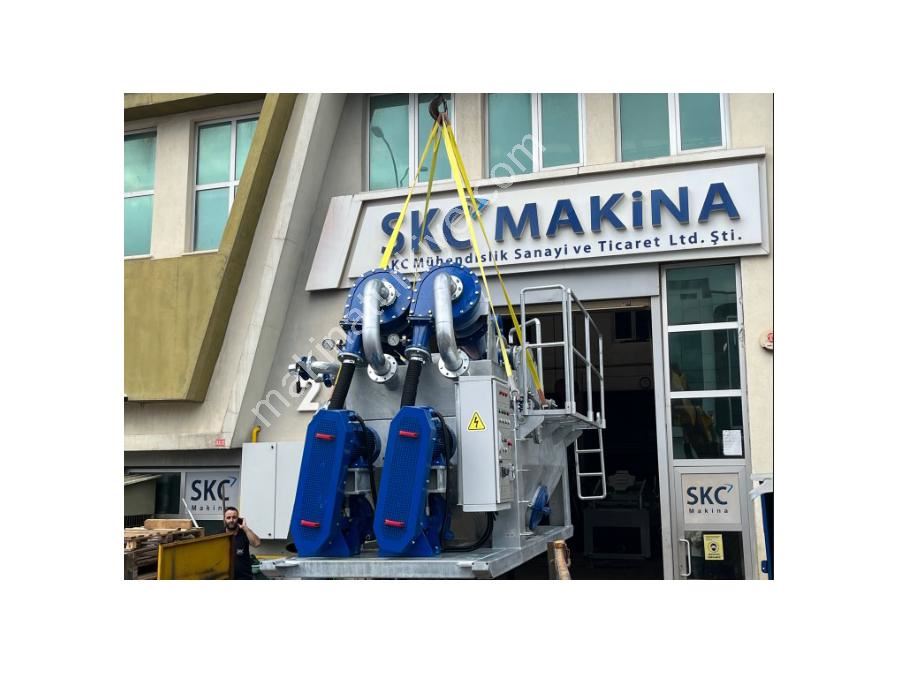

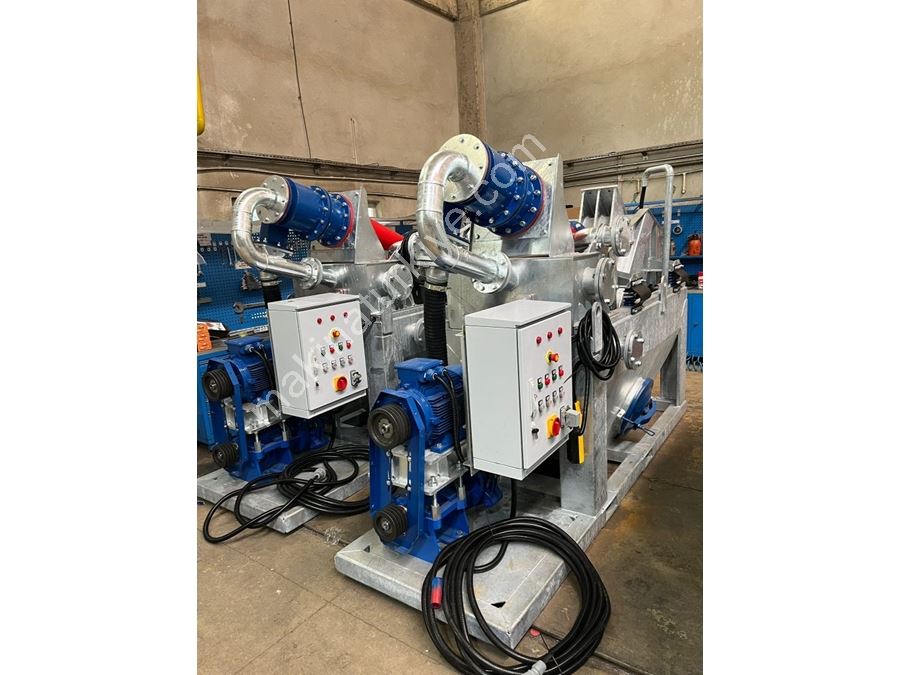

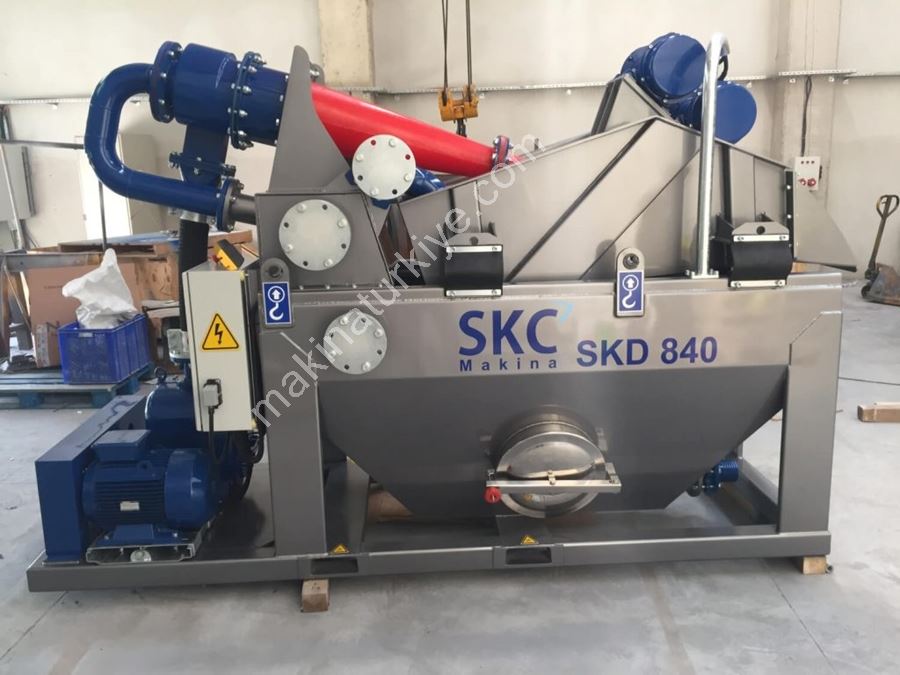

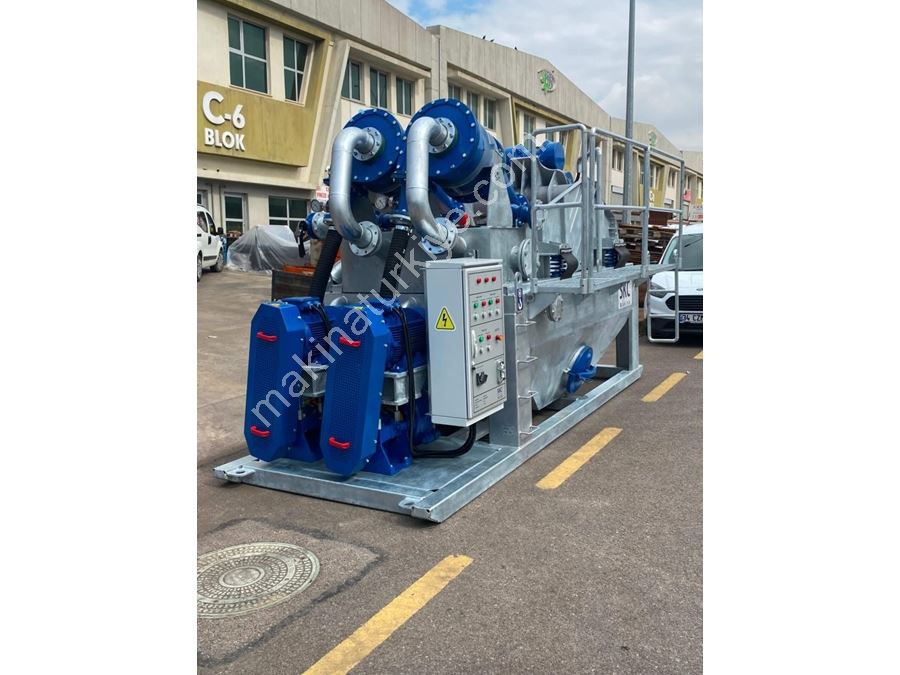

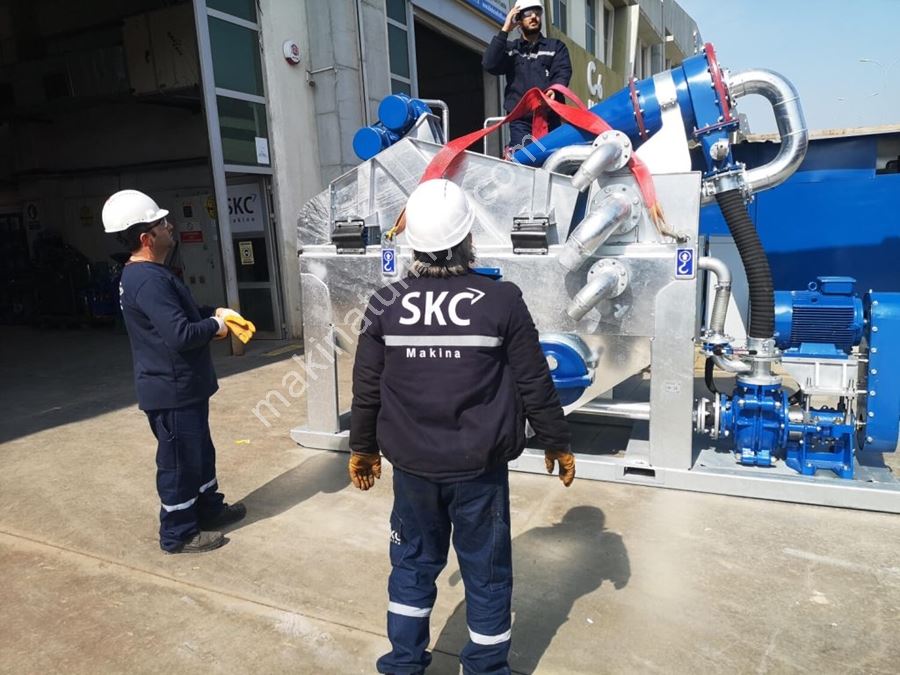

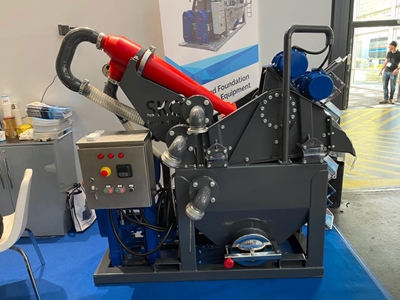

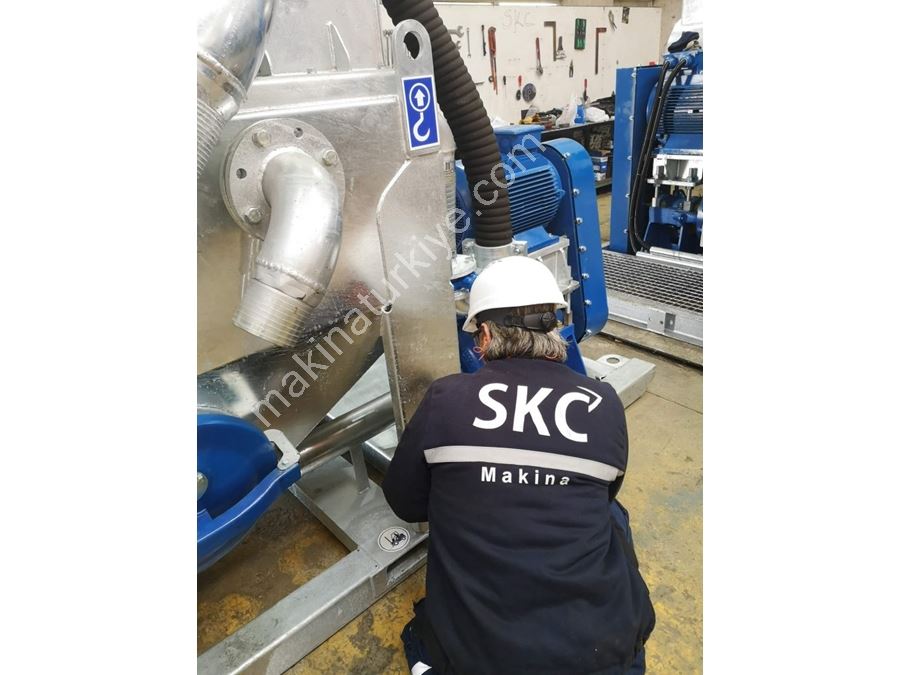

250 m³/h Desanders Particle Mud Sieve Desanders are used to separate sand and other particles from drilling muds. During drilling and excavation processes, drilling mud (bentonite) mixes with contaminants such as sand and clay. Once the drilling process is complete, the mud needs to be processed and cleaned by separating these materials from the mixture. This way, clean mud can be reused for the next process and the drilling mud becomes ready for cementing. The first process takes place on a steel plate sieve where 4 mm materials are separated. The second process occurs by pumping the mud into a hydrocyclone where 50 micron particles are separated. SKC Machine manufactures three types of sand separators named SKD2200, SKD4400, and SKD840 based on their capacities. Model / Type SKD 20 SKD 840 SKD 2200 SKD 3000 SKD 4400 Pump Capacity m³/h 20 60 140 180 250 Hydrocyclone mm Ø125 Ø250 Ø350 Ø430 2×Ø350 mm Total Power kW/V/Hz 7 kW / 380V / 50Hz 13.2 kW / 380V / 50Hz 24.2 kW / 380V / 50Hz 32.4 kW / 380V / 50Hz 49 kW / 380V / 50Hz Cut Diameter D50 µm 30 µm 40 µm 50 µm 50 µm 50 µm Sand Content Before Treatment % ~10 ~10 ~10 ~10 ~10 Sand Content After Treatment % ~2-4 ~2-4 ~2-4 ~2-4 ~2-4 Dimensions W×L×H mm 770×1810×1730 1250×3260×2070 2000×4000×2570 2100×4280×2570 2200×4510×2570 Weight kg ~700 ~1900 ~2500 ~2800 ~4200
SKC Machine also produces double cyclone sand separators called SKD 4400D with desilter. The first cycloning is the same as the first and second process of the desander. In this process, 50 micron particles are separated. The mud is then pumped to small hydrocyclones for the second cycloning. After this process, the separation will be 20-30 microns.
