| Advertisement No: | #00218195 |
| Category: | Injection Machine |
| Brand: | İkaros Makine |
| Model Type: | 260T |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Chinese |
| Location: | Topçular Mah. / Eyüp / İstanbul |
| Sales Detail: | Negotiated |
| Delivery Status: | Made to Order |

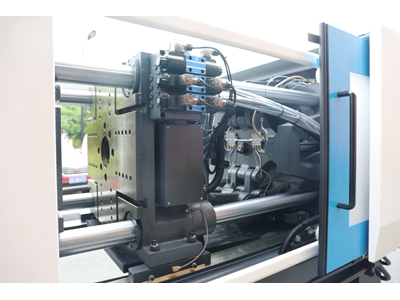

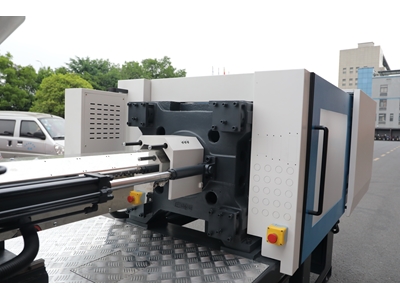

VİLTECH X Ikaros Machine 260T
260 Ton Plastic Injection Machine
Ikaros Machine 260T Technical Specifications:
DESCRIPTION
DESCRIPTION
UNIT
VT-260V7
CLAMPING UNIT
Clamping Force
Clamping Force
ton
260
Max. daylight
Max. daylight
mm
1150
Clamping Stroke
Clamping Stroke
mm
550
Clearance Between Tie Bars
Clearance Between Tie Bars
mm
580X580
Min Mould Dimension
Min Mould Dimension
Mm
406x406
Mould Thickness Range
Mould Thickness Range
mm
200-600
Ejector Force
Ejector Force
ton
7.7
Ejector stroke
Ejector stroke
mm
150
No. of Ejector Pins
No. of Ejector Pins
unit
9
System Pressure
System Pressure
MPa
17.5

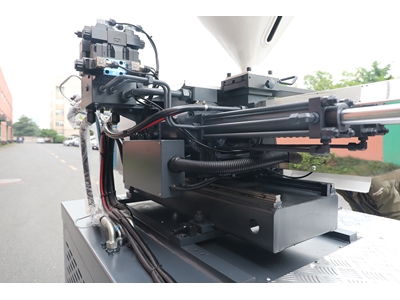

INJECTION UNIT
International Specification
International Specification
1330
Screw diameter
Screw diameter
mm
53
60
68
Theoretical Shot Volume
Theoretical Shot Volume
cm3
585
749
962
Shot Weight (PS)
Shot Weight (PS)
g
532
682
876
Length/Diameter Ratio
Length/Diameter Ratio
L/D
22
20
20
Injection Pressure
Injection Pressure
M Pa
228
178
138
Injection Rate
Injection Rate
cm3/s
225
289
371
Injection Stroke
Injection Stroke
mm
265
Screw Speed
Screw Speed
RPm
197
GENERAL INFORMATION
Major Motor
Major Motor
kW
32
No. of Heater Zones
No. of Heater Zones
unit
4+1
Heater Input Power
Heater Input Power
kW
17/19
Oil Tank Capacity
Oil Tank Capacity
L
470
Net Weight
Net Weight
ton
8.4
Machine Dimension(L*W*H)
Machine Dimension(L*W*H)
M
6.1x1.55x2.1
