| Advertisement No: | #00254197 |
| Category: | Guillotine Shears |
| Brand: | Cronosstech |
| Model Type: | HGM 08 / 3100 |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | İkitelli OSB Mah. / Başakşehir / İstanbul |
| Short Detail: | 1 Yıl Guaranteed |
| Sales Detail: | Negotiated |
| Delivery Status: | Made to Order |
It is an ideal solution for sheet processing workshops and industrial production lines with high cutting precision, strong body structure, and CNC controlled systems. It offers quality and repeatable cutting performance for different sheet thicknesses. ELGO P40T Touch NC Control Unit Rexroth / Hoerbiger hydraulic system Automatic CNC controlled blade gap, stroke, and blade angle adjustment 1,000 mm NC Controlled, programmable, motorized back gauge 250 mm throat depth Programmable back gauge retracting movement Ability for the back gauge to lift up on parts longer than 1,000 mm Adjustable cutting length from the control panel to increase the number of cuts in short cuts Ball bearing sheet feeding table 2 cutting edges on the upper blade / 4 cutting edges on the lower blade Special hinge system that reduces maintenance needs Front support arms 1,000 mm, with ruler, T-slotted, and with stops Front and side safety guards Cutting line illumination and shadow wire Front finger protection sheet (1,000 mm openable cover) Foot pedal Movable control lever and protective cabins Emergency stop buttons Rear pneumatic sheet support system (Type 1) Rear pneumatic sheet support system, front feeding (Type 2) Angle adjustable square (0–180°) Front support arms of desired length Special throat depth (500 mm) Full-length openable front finger protection cover Front finger safety light curtain Special blade Laser cutting line Oil heater or oil cooler Automatic or manual central lubrication Air-conditioned cooling for electrical cabin CNC front support sheet feeding arms CE norm compliant light barrier Light type enclosure Cutting length: 3100 mm Cutting capacity (450 N/mm²): 8 mm Cutting capacity (700 N/mm²): 5 mm Cutting angle: 0.5 – 2.7° Number of pressure cylinders: 14 Cutting speed: 10 / 15 strokes/min Throat depth: 250 mm Back gauge movement distance (X): 1000 mm Table length: 3500 mm Table width: 900 mm Main motor power: 15 kW Oil tank capacity: 275 lt Machine weight: ~7.5 tons Technical specifications may vary according to the requested configuration.

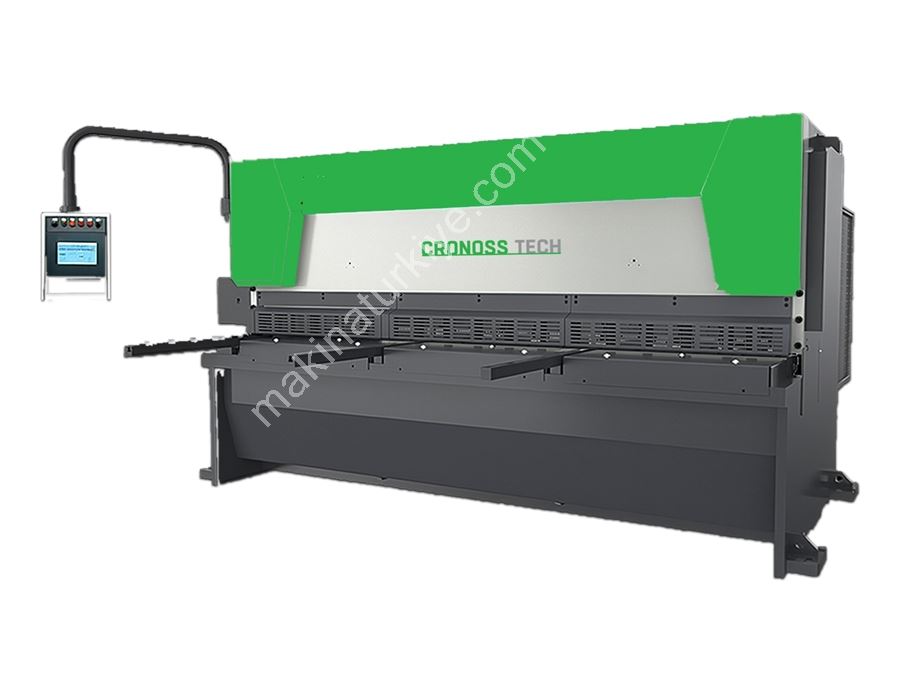

CNC Controlled Hydraulic Guillotine Shear – 3000 x 8 mm
Standard Features
Optional Features
Technical Specifications (3000 x 8 mm)
