30 W Laser Marking Machine

30 W Laser Marking Machine

Fiber Laser Marking Machine

Type: Pulsed Fiber (Pulsed Fiber Amplified Fiber Laser)

Flymark Engineering, established in 2023 with its expert team to reflect its experience in marking from the past to the industry. One of our fields of activity is Laser Applications.

Although all these types of industrial laser marking machines are structurally similar, there are significant differences between them. We recommend that you do not buy a machine without knowing what you are getting. Most seem to work the same way and do the same job, but there are differences between them. With incorrect purchases or incorrect use, you will consume the life of your machine faster and finish it without realizing it. We are here with our expert team to manage these processes for you. We can serve all over Turkey. We can also provide technical service for laser marking, laser cleaning, and micro welding. We can come to Istanbul and surrounding cities to make on-site demonstrations, meet with you, please contact us.

The shared system is a portable standard 20 kg. It is an example of a machine that does small jobs such as plate, label, name writing, ring writing, deep writing, paint removal, etc. There are many laser applications and techniques. With our expert team with 6 years of experience in the sector and tailor-made production, we meet all the needs of our customers. We shape different types of machines that can perform many applications such as autonomous marking for high-capacity production volume, semi-autonomous marking on conveyors with visuals, precise marking called Laser Annealing, engraving, laser cleaning, laser welding, jewelry operations. We do not have a sector distinction. We serve all sectors. There is a usage method in almost every sector.

Our machine is not domestic. 98% of those who claim it is domestic are mistaken. Only tailor-made production can be done by us. There is a big difference between them. We have no intention of deceiving anyone on this matter. According to our opinion, the most important part, the 'laser source,' is not domestic. We are establishing our own R&D and aiming to contribute to the localization efforts of the most important part, 'laser source.'

Types of laser source technologies that can be supplied: Fiber, CW Fiber, QCW, Q-switched, Pulsed Fiber, CO2, YAG:Nd, UV, Green, MOPA Fiber

Laser Welding Brands we use in applications: IPG, Coherent, Synrad, JPT, Raycus, MAX, V-GEN, DAVI, FOTIA.

Working Widths: 70x70mm, 100x100 mm, 150x150mm, 200x200mm, 300x300 mm, 500x500mm, Cartesian solutions for more.

Marking Speeds: Up to 3000 mm/s - 15000 mm/s.

Laser Output Powers: From 10 W to 200Watt (Power Adjustment: Up to 0% - 100%)

Control software: Ezcad 2.0, Ezcad 3.0, Ligthburn etc.

For Marking Machines Only, Products with Cabinet, Benchtop, OSH-compliant mini-cabinet, Camera products, Dynamic marking (Flymark applications), Cartesian products, Cabinet Cartesian products, Automatic focusing, Vision Processing Machines, 3D marking machines, Handheld Portable products, designs for cleaner environments and much more.

Shared Configuration:

Available from Stock, Installation and Training will be provided by us.

Credit Card Accepted. Will be invoiced. Power: 30 W, Control Software: Ezcad, Pedal and Protective Glasses are available. Manual Focusing (With double assistive red light), 110x110 mm Marking Area. 0.2 mm Character size. Ergonomic, modern design.

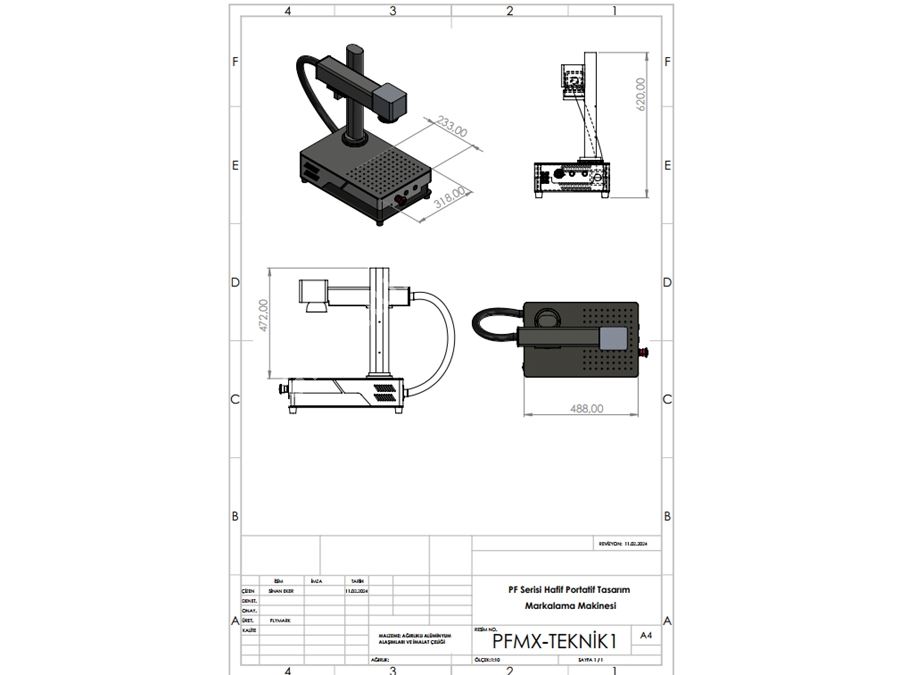

Machine Dimensions:

Laser Source: MAX 30W

Compatible with Windows XP / 7 / 8 / 10 - 32 / 64 Bit operating systems.

Used with 220V/50 Hz grid voltage. 240 W power consumption. Air-cooled design.

CE certified. Computer not included. It is shaped according to the customer's request.

It has a 2-year warranty. We can provide it for facilities with grounding. It is recommended to use with UPS power supply, which is provided by us.
