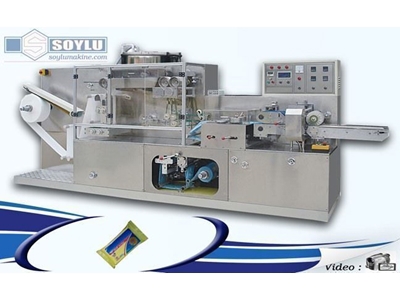

3200 tissues/min Fully Automatic Wet Wipe Production Machine

GM 100FW  Wet Wipe Machine is designed for flexible use, capable of using 10 sliced or 2 jumbo rolls. It can produce products in various sizes such as wet wipes, wet tissues, car cleaning cloths, wet baby towels, personal hygiene wipes, industrial wet wipes, and patient cleaning cloths. Thanks to the recipe system, it is easy to switch between different products with pre-recorded settings.

GM 100FW can produce fully automatically without human touch. Due to its compact, advanced technological design, it occupies very little space in the facility and can achieve high production speeds.

• Fully automatic, touchless, production without human power
• Advanced technology and compact design
• Different product varieties and the possibility of using different rolls
• Different folding types (Z,C,W,V)
• Visual monitoring of the machine via a touch screen thanks to the regional alarm and control system.
• Remote Access feature allows access to the machine over the internet, fault detection, and software updates.

CONSTRUCTION

• The body is made of 304L Cr-Ni Stainless Steel.
• The surfaces that the product comes into contact with before packaging are made of stainless steel.
• The machine can be easily moved with durable adjustable wheels.
• The machine can be stabilized after placement with durable adjustable feet.

GENERAL FEATURES

• Mobile User Control Panel
• Antibacterial bands and belts that come into contact with the product
• Illuminated working areas; electrical panel, machine working area, machine internal components
• Locked cover system
• Visual and audible warning system with illuminated column
• 30 Packages/min
• 3200 tissues/min
• Tissue Width; 60mm – 120mm
• Tissue Length; 60mm – 220mm (can be extended upon request)
• Ability to use 10 single rolls or 2 jumbo rolls
• Jumbo Roll Slicing Blade System
• Servo Motor Control System
• Motion Control System
• 7″ 65536 color Touch Screen
• Easy tissue size change capability
• Easy tissue moisture change capability
• Easy packaging size change capability
• Labeling System
• Window Opening System
• 10 – 120 g/m2 nonwoven
• Easy tissue stack quantity change capability
• 380 VAC / 50Hz 3 Phase + N,   12 KW
• Safety Purpose 24 VDC Control Voltage
• Safe machine covers
• Ability to connect to the machine over the internet

PRODUCTS

• Wet Wipe, Wet Tissue, Patient cleaning cloth, Car cleaning cloth, industrial wet wipe, leather cleaning cloth, hygiene wipe, wet baby towel.
