| Advertisement No: | #00254146 |
| Category: | Pipe Profile Bending Machine |
| Brand: | CronossTech |
| Model Type: | MB 38 CNC / 3 EKSEN |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | İkitelli OSB Mah. / Başakşehir / İstanbul |
| Sales Detail: | Negotiated |
| Delivery Status: | Made to Order |

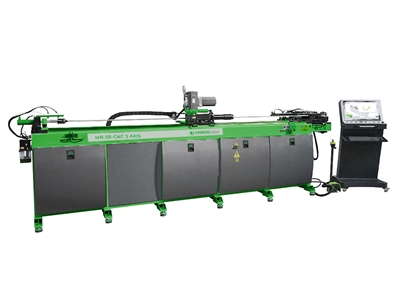

MB 38 CNC is a CNC-controlled 3-axis pipe bending machine capable of both mandrel and mandrel-less bending. With servo-controlled axis structure, hydraulic clamping systems, and a CNC control unit supported by 3D simulation, it provides high precision, repeatability, and production efficiency. It is designed for serial production and special project applications in industries such as automotive, furniture, heating-cooling, metal construction, pipe, and profile processing. 1 set of bending dies as per customer requirements Servo motorized feeding axis Servo motorized rotating axis Servo motorized bending axis (MB 38 CNC / Bending Axis) Reducer-driven bending system (51 - 65 - 76 - 90) Mobile 21" color screen CNC control unit Bending with 3D simulation Automatic sending of detailed work reports via email Tracking of daily / weekly / monthly total production quantity Calculation of total material length to be used Calculation of estimated bending time Automatic conversion of X-Y-Z data to Y-B-C axes Remote assistance and service connection Portable foot pedal with emergency stop Manual and automatic bending modes Mandrel and mandrel-less bending capability Safety plate with switch behind the bending head Automatic mandrel lubrication system Hydraulic clamping system Hydraulic mandrel Hydraulic support Hydraulic linear slider system Hydraulic pens Hydraulic oil cooler Safety lock on the electrical panel and key lock on the panel Electrical panel cooler Overload protection system Spare bending die set according to desired dimensions Servo bending (51 - 65 - 76 - 90) Safety foot mat (750 x 1000 mm) Safety foot mat (1000 x 1500 mm) Hydraulic oil heater Extra mandrel length (per meter) Spoon attachment and articulated mandrel Automatic mandrel lubrication system (51 - 65 - 76 - 90) This machine is being manufactured under OEM production in Turkey, and the supply, configuration, and commercial management are handled by CRONOSSTECH.MB 38 CNC / 3-Axis Mandrel Pipe Bending Machine
General Description
⚙️ Standard Features
🔩 Optional Features
📊 Technical Specifications
Feature
Value
Max. Capacity
Ø38 x 3 mm
Max. Bending Radius
250 mm
Max. Bending Angle
190°
Hydraulic Pressure
50 - 220 bar
Working Length
3000 mm
Turning Tolerance
±0.1
Bending Speed
Adjustable
Motor Power
7.5 kW
Machine Length
4280 mm
Machine Width
1000 mm
Machine Height
1500 mm
