| Advertisement No: | #00218202 |
| Category: | Injection Machine |
| Brand: | İkaros Makine |
| Model Type: | 400T |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Chinese |
| Location: | Topçular Mah. / Eyüp / İstanbul |
| Sales Detail: | Negotiated |
| Delivery Status: | Made to Order |
VİLTECH X Ikaros Machine 400T
400 Ton (50 kW) Plastic Injection Machine
Ikaros Machine 400T Technical Specifications:
DESCRIPTION
DESCRIPTION
UNIT
VT-400V7

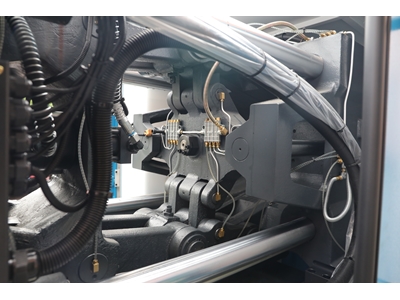

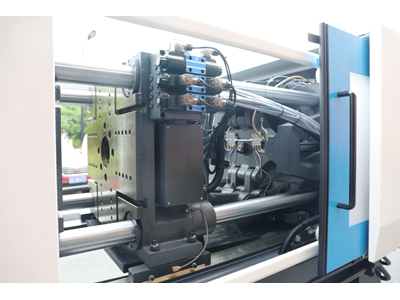

CLAMPING UNIT
Clamping Force
Clamping Force
ton
400
Max. daylight
Max. daylight
mm
1460
Clamping Stroke
Clamping Stroke
mm
710
Clearance Between Tie Bars
Clearance Between Tie Bars
mm
760х710
Min Mould Dimension
Min Mould Dimension
Mm
530х500
Mould Thickness Range
Mould Thickness Range
mm
260-750
Ejector Force
Ejector Force
ton
11.1
Ejector stroke
Ejector stroke
mm
210
No. of Ejector Pins
No. of Ejector Pins
unit
13
System Pressure
System Pressure
MPa
17.5

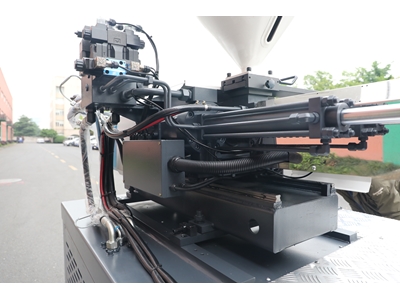

INJECTION UNIT
Inernational Specification
Inernational Specification
2700
Screw diameter
Screw diameter
mm
68
76
84
Theoretical Shot Volume
Theoretical Shot Volume
cm3
1198
1497
1829
Shot Weight (PS)
Shot Weight (PS)
g
1091
1362
1664
Length/Diameter Ratio
Length/Diameter Ratio
L/D
22
20
20
Injection Pressure
Injection Pressure
M Pa
225
180
147
Injection Rate
Injection Rate
cm3/s
332
415
507
Injection Stroke
Injection Stroke
mm
330
Screw Speed
Screw Speed
RPm
168
GENERAL INFORMATION
Major Motor
Major Motor
kW
50
No. of Heater Zones
No. of Heater Zones
unit
5+1
Heater Input Power
Heater Input Power
kW
27/31
Oil Tank Capacity
Oil Tank Capacity
L
590
Net Weight
Net Weight
ton
15.8
Machine Dimension(L*W*H)
Machine Dimension(L*W*H)
M
7.45х1.70x2.25
