40W CO₂ Fly Laser Marking Machine for Moving Products

Advertisement No:	#00257663
Category:	Laser Marking Machine
Brand:	Fastjet
Model Type:	F-LM-002
Product Type:	For Sale
Product Status:	New
Origin:	Turkey
Location:	Yukarıdudullu Mah. / Ümraniye / İstanbul
Warranty Status:	2 Yıl Guaranteed
Sales Detail:	Bank Transfer, Credit Cart, Negotiated
Delivery Status:	In stock

Price:

Ask For Price +VAT

Min. Sipariş 1 Piece

Send Inquiry

Purchasing Tips

Protect your privacy, review the product descriptions...

Contact the seller

Karma Kodlama Teknolojileri

Karma Kodlama Makinaları San. Tic. Ltd. Şti

Advisor : Burak B.

Go to the store

Add to My Favorite Store

All Ads

+90 216 368 50 **

+90 553 387 49 **

Send Message

Fast Chat

40W CO₂ Fly Laser Marking Machine for Moving Products

About

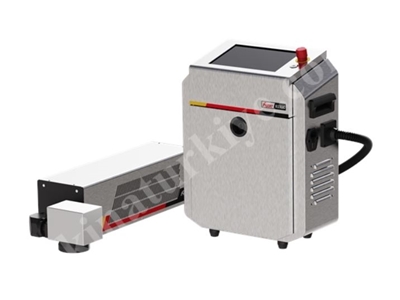

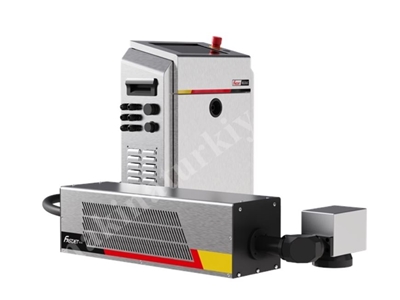

It is an industrial CO₂ laser marking system developed for high-speed and contactless marking of moving products.
Thanks to the 40W sealed CO₂ laser tube, it can perform high-quality and permanent marking on cardboard, paper, wood, glass, PET, acrylic, leather, and many organic materials.
It offers high performance in production lines operating at speeds of up to 200 meters per minute.
With a marking capacity of up to 2,000 characters per second, it is suitable for mass production applications.

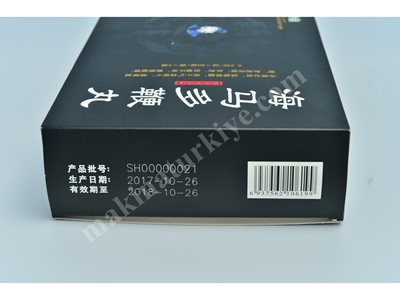

It can process variable data such as date, time, serial number, lot number, shift code, QR Code, and barcode in real-time.
It offers support for Turkish and English usage with the QuickMark™ user interface.
Thanks to SQL-based data transfer, Ethernet, and RS232 communication options, it can be easily integrated into production automation.
Its air-cooled structure allows it to operate for long periods with low maintenance costs.

Areas of Use

Food packaging
Beverage production lines
Cardboard and corrugated cardboard
Paper products
Glass packaging
PET bottles
Wood products
Leather products
Cosmetic industry
Pharmaceutical industry
Electronic packaging
Cable production
Logistics and packaging lines
Automotive sub-industry

Technical Specifications

Feature	Value
Laser Technology	CO₂ Carbon Dioxide Laser
Laser Power	40 W
Wavelength	10.6 μm / 10.2 μm / 9.3 μm
Marking Area	Standard F160 (100 × 100 mm)
Optional Lenses	F73 (50×50), F100 (70×70), F230 (140×140), F254 (175×175), F300 (210×210), F330 (250×250), F450 (300×300), F592 (400×400 mm)
Marking Speed	2,000 characters/sec (depending on application)
Line Speed	Maximum 200 m/min
Fonts	Windows TrueType®, OCR, Single Line Font
Supported Codes	QR Code, DataMatrix, Code128 A/B/C, Code39, Code93, Aztec, Han Xin
Logo Support	BMP, Graphic, Logo and Symbol
Variable Data	Date, Time, Serial No, Lot No, Shift Code
Communication	UDP, TCP/IP, RS232
Sensor Connections	Encoder and Product Sensor
Digital Input / Output	Start, Stop, Operator Lock and Safety Signals
Power Supply	110–240 VAC / 50-60 Hz
Power Consumption	0.70 kW
Cooling System	Air Cooled
Operating Temperature	5°C – 40°C
Humidity Range	%10 – %90
Protection Class	IP54
Weight	34 kg

Highlighted Advantages

Can mark up to 200 meters per minute in high-speed production lines.
Offers darker and more distinct marking performance thanks to 40W laser power.
Provides permanent marking without the use of ink or solvent.
Supports QR Code, DataMatrix, and all common barcode standards.
Can process logos, symbols, and graphics in high resolution.
Easily connects to automation systems with SQL, Ethernet, and RS232 communication support.
Provides high-precision marking thanks to advanced galvo technology.
Offers low maintenance costs due to its air-cooled structure.
Ensures ease of use with a touchscreen user interface.
Can be used across a wide range of products with different focus lenses.

Why Should You Choose the 40W CO₂ Fly Laser Marking Machine?

The 40W CO₂ Fly Laser Marking Machine is a powerful and reliable marking solution for businesses operating in medium and high-speed production lines. With 40W laser power, it achieves higher contrast and quality marking. The laser technology that does not require consumables reduces operating costs while providing full traceability in production processes with its real-time data processing feature. It is a professional solution suitable for mass production in the food, cosmetic, pharmaceutical, packaging, and logistics sectors.

Frequently Asked Questions

What materials can the 40W CO₂ laser be used on?

It can perform high-quality marking on cardboard, paper, wood, glass, PET, acrylic, leather, and many organic materials.

Can it work on moving production lines?

Yes. It can mark at high speed on moving production lines of up to 200 meters per minute.

Can it print QR Codes and barcodes?

Yes. It supports QR Code, DataMatrix, Code128, Code39, Code93, Aztec, and Han Xin codes.

Can it integrate with ERP and PLC systems?

Yes. It can work in integration with ERP, MES, PLC, and other automation systems thanks to UDP, TCP/IP, and RS232 communication protocols.

Does it use consumables?

No. The CO₂ laser technology provides permanent marking without the need for ink or solvent.

Can different marking areas be used?

Yes. Depending on the application, different focus lenses can be preferred from 50×50 mm to 400×400 mm.

Shipping and Delivery Information

The product is shipped in accordance with safe transport standards.
Installation and commissioning can be carried out by a specialized technical team.
Technical support is provided for production line integration and software installation.
After-sales maintenance, technical service, and spare parts support are provided.
It can be configured with different lenses, communication, and automation options according to project needs.
