| Advertisement No: | #00254313 |
| Category: | Plastic Bag Making |
| Brand: | Sura Machine |
| Model Type: | SM-HPB-60 |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | Dudullu OSB Mah. / Ümraniye / İstanbul |
| Sales Detail: | Suitable for Leasing, Bank Transfer, Credit Cart, Eligible for Credit, Supported by Kosgeb, Negotiated |
| Delivery Status: | Over 90 Days |

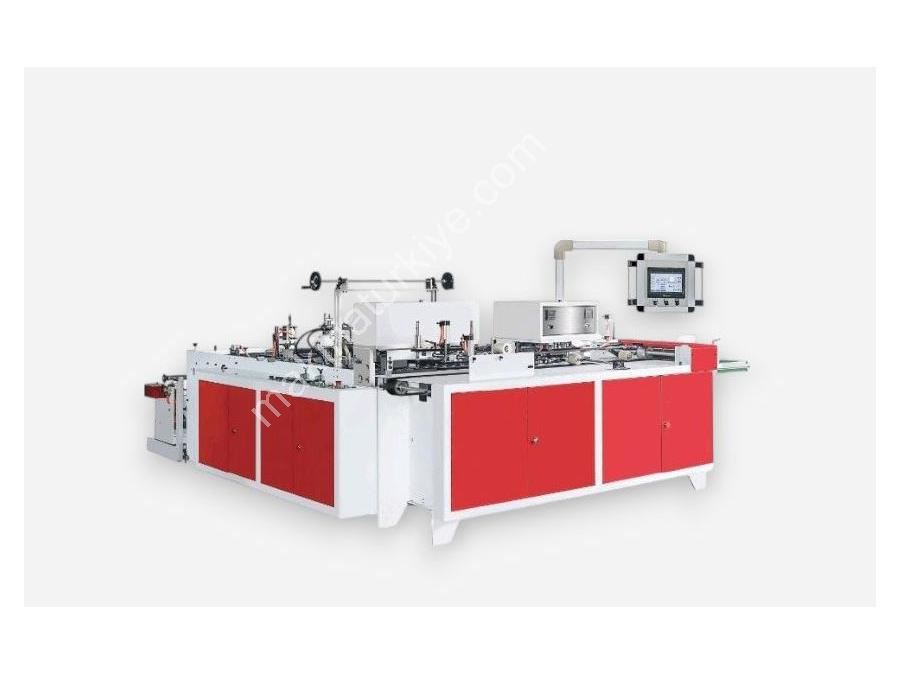

1. The machine integrates the motor cylinder into a single body and operates via a Taiwan Wellon touch screen. It is equipped with features such as photoelectric fixed length, photoelectric tracking, automatic positioning, and automatic edge correction. 2. The raw material tension can be automatically adjusted while the machine is operating. 3. The machine uses air pressure controlled pneumatic loading. 4. The feeding speed is controlled by a proximity switch. 5. The closing mechanism of the bag making machine uses a three-phase asynchronous motor with frequency conversion speed regulation. 6. Servo stretch is not used, which provides a smooth and aesthetically pleasing heat sealing process. 7. The servo flying knife system allows for easy blade changes. 8. Thanks to the automatic counting feature, the number of bags or irons can be automatically calculated during operation. 9. The speed of the transfer belts can be adjusted using frequency conversion speed regulation. The unloading process is carried out in a more orderly and smooth manner. Main technical parameters: Model SM-HPB-60 Series Bag width: 250 mm-550 mm Bag length: 350 mm-580 mm Maximum sealing width: 600 mm Maximum cutting length: 600 mm Winding diameter: 800 mm Bag thickness: 0.05-0.2 mm Bag making speed: 45-60 pieces/min Power supply: AC380V, 50 Hz Machine size (mm) Overall dimensions: 4500*3600*1700 Bag making part: 2800*1250*1520 Horizontal Transmission part: 2670*920*1210 Transmission part: 2180*750*850 Iron handle part: 970*850* 1700 Correct the handle part: 1100 * 970 * 660 Machine weight 2600 kg Handle length 330-370 mm, generally 350 mm Handle width 25-50 mm, generally 30 mm In international sales, the FOB price is determined, and transportation is not included in the machine price. Sura Machine SM-HPB-60 Automatic Plastic Bag Making Machine
Sura Machine SM-HPB-60 Technical Specifications
It can also accurately and consistently configure industrial control devices such as automatic counting, counting alarm, automatic ironing arm, and automatic bag folding. These features make the machine the most advanced plastic bag production equipment on the market. The operation control buttons on the front and back of the machine are easy to use.
(An automatic tension control system is used for feeding.)
