| Advertisement No: | #00254147 |
| Category: | Pipe Profile Bending Machine |
| Brand: | CronossTech |
| Model Type: | MB 51 CNC / 3 E |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | İkitelli OSB Mah. / Başakşehir / İstanbul |
| Sales Detail: | Negotiated |
| Delivery Status: | Made to Order |

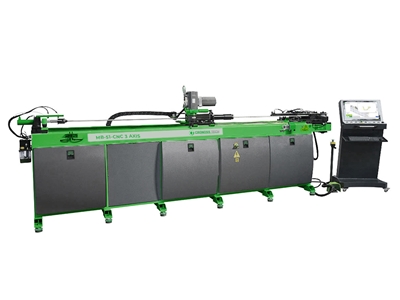

MB 51 CNC is a CNC controlled 3 axis pipe bending machine capable of both mandrel and mandrel-less bending. With its servo controlled axis structure, hydraulic clamping systems, and a CNC control unit supported by 3D simulation, it provides high precision, repeatability, and production efficiency. Designed for serial production and special project needs in various industries such as automotive, furniture, heating-cooling, metal construction, pipe, and profile processing in medium and large diameter pipe bending applications. 1 set of bending die in dimensions requested by the customer Servo motorized feed axis Servo motorized rotation axis Servo motorized bending axis ( MB 38 CNC / 3 Axis ) Reducer-driven bending system (51 - 65 - 76 - 90) Mobile 21" color screen CNC control unit Bending with 3D simulation Automatic email sending of detailed working reports Tracking of daily/weekly/monthly total production quantity Total material length to be used calculation Estimated bending time calculation Automatic conversion of X-Y-Z data to Y-B-C axes Remote assistance and service connection Portable foot pedal with emergency stop Manual and automatic bending modes Mandrel and mandrel-less bending capability Safety plate with switch behind the bending head Automatic mandrel lubrication system Hydraulic clamping system Hydraulic mandrel Hydraulic support Hydraulic linear slider system Hydraulic pens Hydraulic oil cooler Electrical panel with safety lock and key lock for the panel Electrical panel cooler Overload protection system Spare bending die set for desired dimensions Servo bending (51 - 65 - 76 - 90) Safety mat (750x1000 mm) Safety mat (1000x1500 mm) Hydraulic oil heater Extra mandrel length (per meter) Spoon attachment and articulated mandrel Automatic mandrel lubrication system (51 - 65 - 76 - 90) This machine is being manufactured in Turkey within the scope of OEM production, and the supply, configuration, and commercial management is carried out by CRONOSSTECH.MB 51 CNC / 3 Axis Mandrel Pipe Bending Machine
General Description
⚙️ Standard Features
🔩 Optional Features
📊 Technical Specifications (Correct - Ø51x3 mm)
Feature
Value
Max. Capacity
Ø51 x 3 mm
Max. Bending Radius
250 mm
Max. Bending Angle
190°
Hydraulic Pressure
50 - 220 bar
Working Length
3000 mm
Rotation Tolerance
±0.1
Bending Speed
Adjustable
Motor Power
13.5 kW
Machine Length
4950 mm
Machine Width
1200 mm
Machine Height
1600 mm
🏭 Production Note (OEM)
