60 Ton x 2100 Mm Cnc Hydraulic Press Brake

Advertisement No:	#00257084
Category:	Press Brake
Brand:	Cronosstech
Model Type:	HPB A60-2100
Product Type:	For Sale
Product Status:	New
Origin:	Turkey
Location:	İkitelli OSB Mah. / Başakşehir / İstanbul
Warranty Status:	1 Yıl Guaranteed
Sales Detail:	Suitable for Leasing, Bank Transfer, Negotiated
Delivery Status:	45 Day

Price:

34,500.00 +VAT

Min. Sipariş 1 Piece

Send Inquiry

Purchasing Tips

Protect your privacy, review the product descriptions...

Contact the seller

CronossTech Makina

CronossTech Makina Dış Tic. Ltd. Şti.

Advisor : Volkan Ö.

Go to the store

Add to My Favorite Store

All Ads

+90 544 302 00 **

Send Message

Fast Chat

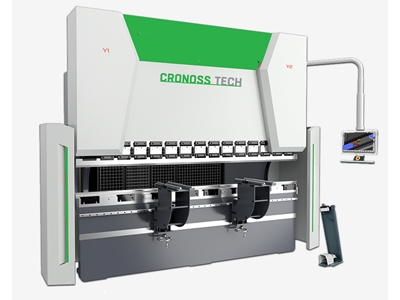

60 Ton x 2100 mm 4 Axis CNC Hydraulic Press Brake

General Description

60 Ton x 2100 mm 4 Axis CNC Hydraulic Press Brake is a CNC-controlled press brake developed for small and medium-sized sheet metal bending applications, standing out with its compact structure and high precision. Its robust steel construction body, quality European-made hydraulic components, and advanced CNC control system ensure long-lasting, reliable, and efficient production.

The ESA S630 CNC control unit performs high-precision and repeatable bending operations with the Y1-Y2-X-R 4 axis CNC control system and servo motor-driven X+R axis back support system. Thanks to the European type Promecam manual die clamping system, die changes can be made practically. It offers a safe working environment with the AKAS II laser safety system and safety equipment compliant with CE standards.

Standard Equipment

ESA S630 CNC control unit
4 axis CNC control system including Y1, Y2, X, and R
Servo motor-driven CronossTech X+R axis back support system
X axis movement distance of 750 mm
R axis movement distance of 250 mm
Manually adjustable, 3-stage 2 back support fingers

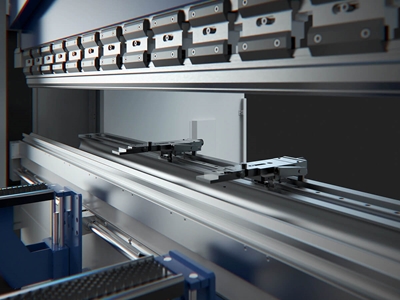

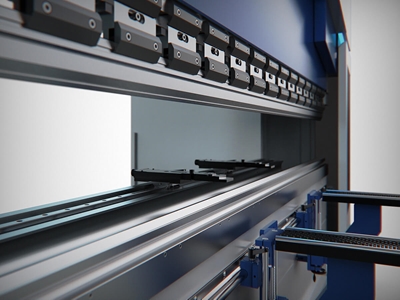

European type Promecam E7 manual upper die clamping system
CronossTech European type narrow lower die table
Standard upper die ES1260
Standard lower die ES2067 (4 V channels)
A Series open cabin design
Linear scale system
Hoerbiger (HAWE) hydraulic block
Eckerle hydraulic pump
Schneider or Siemens electrical equipment
Electrical panel compliant with VDE standards
LED working light on the ram
2 sliding type front sheet support arms
Single foot pedal
Energy-saving Standby mode
AKAS II front laser safety system
PLC controlled rear light barriers
Safety system compliant with CE standards

Technical Specifications

Feature	Value
Bending Force	60 Tons
Bending Length	2100 mm
Distance Between Columns	1600 mm
Ram Stroke	210 mm
Open Height (Daylight)	465 mm
Throat Depth	410 mm
Table Height	870 mm
Approach Speed	160 mm/s
Bending Speed	10 mm/s
Return Speed	135 mm/s
Oil Tank Capacity	170 L
Main Motor Power	5.5 kW
Back Support X Axis	750 mm / 300 mm/s
Back Support R Axis	250 mm / 250 mm/s
Machine Dimensions (W × D × H)	3660 × 2175 × 2820 mm
Machine Weight	4,290 kg

Areas of Use

Sheet metal processing workshops
Machine manufacturing
Electrical panel production
Metal furniture production
Automotive sub-industry
Stainless steel processing
Ventilation and air conditioning systems
Agricultural machinery production
Prototype and small series production
General metal processing

Advantages

Precise and repeatable bending with 4 axis CNC control system
Servo motor-driven X+R axis back support system
Compact design that takes up less space
Wide die compatibility with European type Promecam die system
Robust steel construction body
European-made hydraulic and electrical components
Energy-saving Standby mode
Easy to use ESA S630 CNC control unit
Safe operation with AKAS II laser safety system
Production compliant with CE standards

Warranty

12 Month Manufacturer Warranty

Bending Capacity 60 TON

Bending Length 2100 MM

Number of Axis 4
