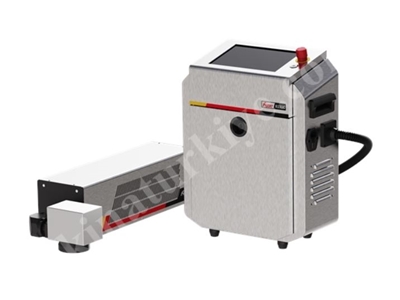

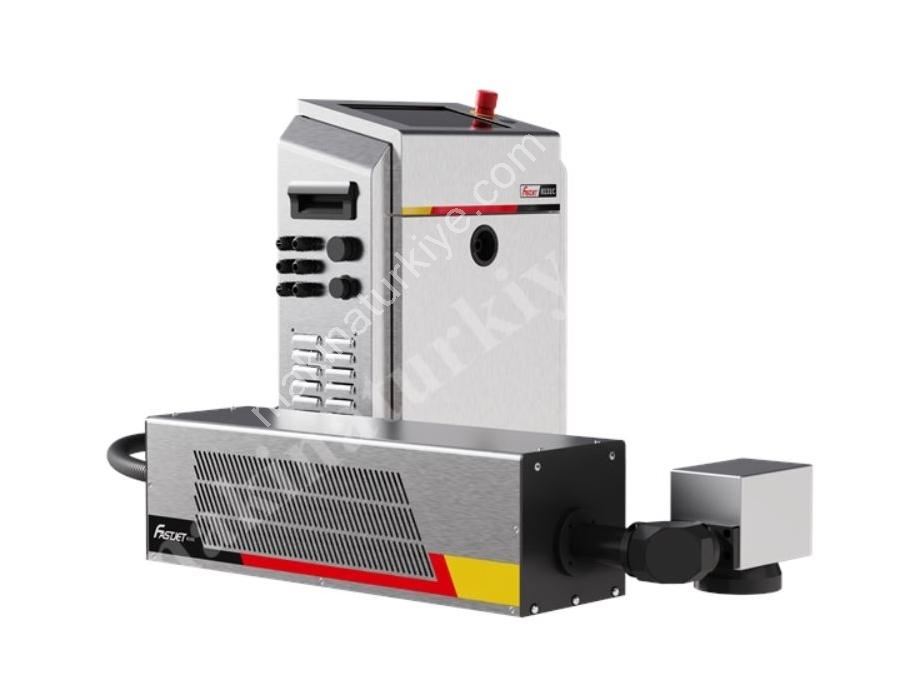

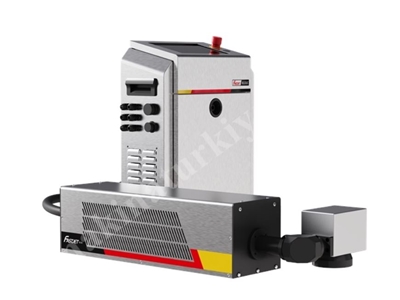

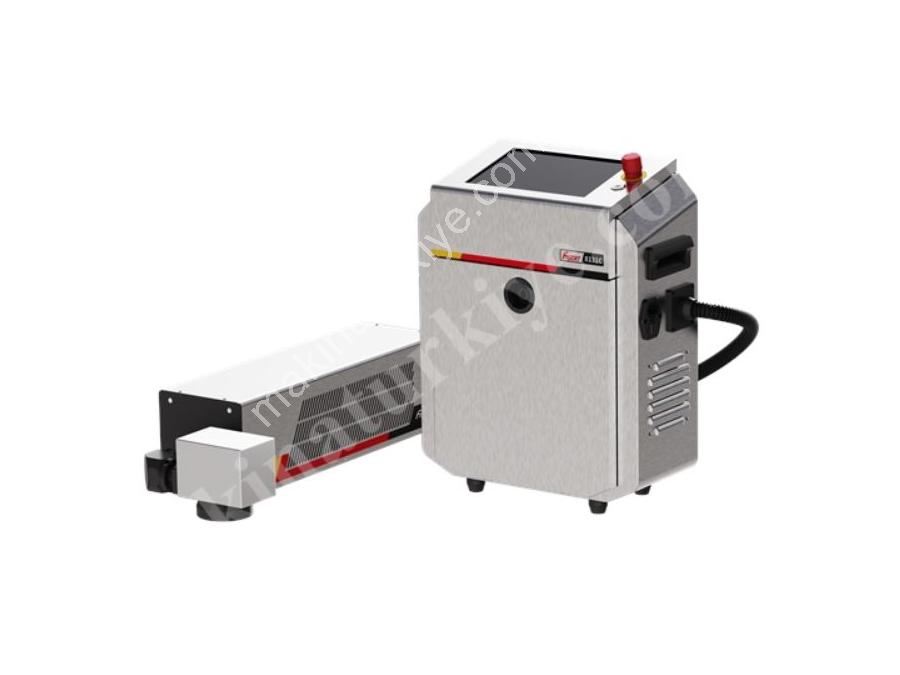

60W CO₂ Fly Laser Marking Machine for Moving Products

About

This is a professional CO₂ laser marking system developed for high-speed, contactless, and permanent marking of moving products.
Thanks to the 60W sealed CO₂ laser tube, it offers stronger and faster marking performance at high production capacities.
It can perform uninterrupted marking on production lines operating at speeds of up to 200 meters per minute.
With a marking capacity of up to 2,000 characters per second, it meets the needs of mass production facilities.
It performs high-contrast marking on cardboard, paper, wood, glass, PET, acrylic, leather, and many organic materials.
Thanks to the QuickMark™ user interface, it offers support in Turkish and English.
It can be easily integrated into ERP, MES, and PLC systems with SQL, TCP/IP, UDP, and RS232 communication options.
Its air-cooled design provides long-term use with low maintenance costs.

Areas of Use

Food production facilities
Beverage filling lines
Cardboard and corrugated cardboard production
Paper packaging production
Glass products
PET packaging
Wooden products
Leather products
Cosmetic production
Pharmaceutical industry
Electronic packaging
Cable production
Logistics centers
Automotive sub-industry
Packaging and packing lines

Technical Specifications

Feature	Value
Laser Technology	CO₂ Carbon Dioxide Laser
Laser Power	60 W
Wavelength	10.6 μm / 10.2 μm / 9.3 μm
Marking Area	Standard F160 (100 × 100 mm)
Optional Lenses	F73 (50×50), F100 (70×70), F230 (140×140), F254 (175×175), F300 (210×210), F330 (250×250), F450 (300×300), F592 (400×400 mm)
Marking Speed	2,000 characters/sec (depending on application)
Line Speed	Maximum 200 m/min
Fonts	Windows TrueType®, OCR, Single Line Font
Supported Codes	QR Code, DataMatrix, Code128 A/B/C, Code39, Code93, Aztec Code, Han Xin Code
Logo Support	Graphics, BMP, Logo and Symbol
Variable Data	Date, Time, Serial No, Lot No, Shift Code
Communication	UDP, TCP/IP, RS232
Sensor Connections	Encoder and Product Sensor
Digital Input / Output	Start, Stop, Operator Lock and Safety Inputs/Outputs
Power Supply	110–240 VAC / 50-60 Hz
Power Consumption	1.50 kW
Cooling System	Air Cooled
Operating Temperature	5°C – 40°C
Humidity Range	%10 – %90
Protection Class	IP54
Standard Weight	39 kg

Highlighted Advantages

Provides strong and clear marking on high-speed production lines thanks to its 60W laser power.
Adapts to production lines operating at speeds of up to 200 meters per minute.
Reduces operating costs due to laser technology that does not require consumables.
Supports QR Code, DataMatrix, barcode, and variable data marking.
Can process graphics, logos, and custom symbols in high resolution.
Easily integrates with automation systems with SQL-based data acquisition feature.
Achieves high-precision marking thanks to advanced galvo mirrors.
Can be safely used in harsh industrial environments with its IP54 protection class structure.
Offers ease of use with its touch screen user interface.
Can mark various product sizes with different focus lenses.

Why Should You Choose the 60W CO₂ Fly Laser Marking Machine?

The 60W CO₂ Fly Laser Marking Machine is a high-performance marking solution developed for businesses with intensive production. Thanks to its powerful laser source, it can perform clear and permanent marking even at high speeds. Its structure, which does not require consumables, reduces operating costs, while its advanced communication options ensure full compatibility with ERP, MES, and PLC systems. It is an ideal solution for applications requiring high production capacity in the food, cosmetic, pharmaceutical, packaging, and logistics sectors.

Frequently Asked Questions

What materials can the 60W CO₂ laser be used on?

It can perform high-quality and permanent marking on cardboard, paper, wood, glass, PET, acrylic, leather, and many organic materials.

Can it be used on moving production lines?

Yes. It can perform high-speed marking on production lines operating at speeds of up to 200 meters per minute.

Can it mark QR Codes and barcodes?

Yes. It supports many barcode standards such as QR Code, DataMatrix, Code128, Code39, Code93, Aztec Code, and Han Xin Code.

Can it communicate with ERP and automation systems?

Yes. It can work integrated with ERP, MES, PLC, and production automation systems thanks to UDP, TCP/IP, and RS232 communication protocols.

Does it use consumables?

No. Thanks to CO₂ laser technology, permanent marking is done without using ink or solvent.

Can different marking areas be selected?

Yes. Depending on the need, different focus lenses can be used from 50×50 mm to 400×400 mm.

Shipping and Delivery Information

The product is shipped in accordance with safe transport standards.
Installation, commissioning, and production line integration are carried out by expert technical teams.
Technical support is provided for software installation and automation integration.
After-sales maintenance, technical service, and spare parts support are provided.
It can be customized with different lenses, communication, and automation options according to project needs.
