| Advertisement No: | #00253647 |
| Category: | Pumping Stations |
| Brand: | ErichHahn |
| Model Type: | OPS-A-65 |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | 75.Yıl Mah. / Odunpazarı / Eskişehir |
| Sales Detail: | Bank Transfer, Credit Cart, Negotiated |
| Delivery Status: | Made to Order |

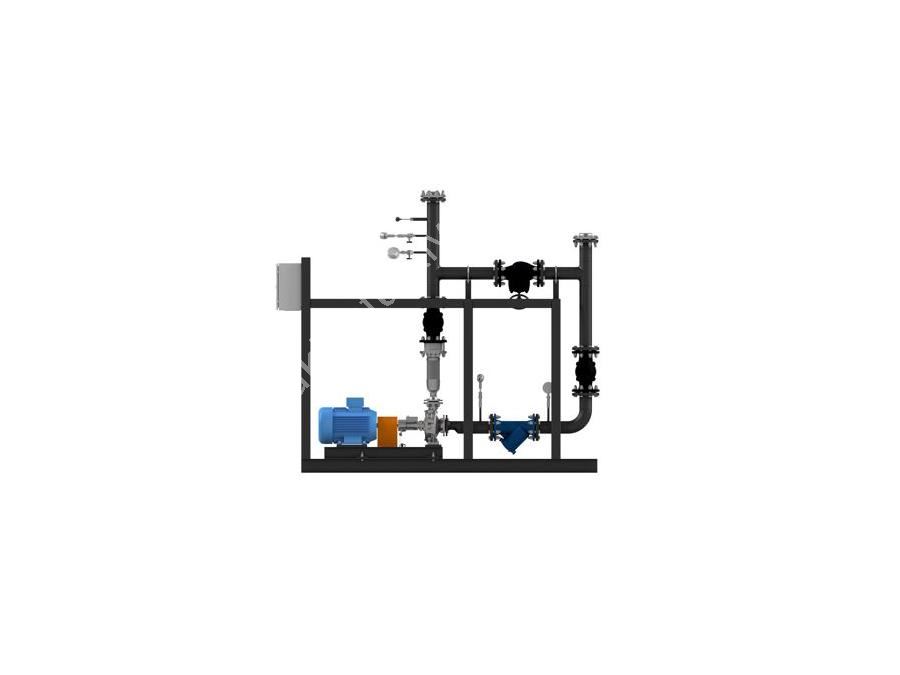

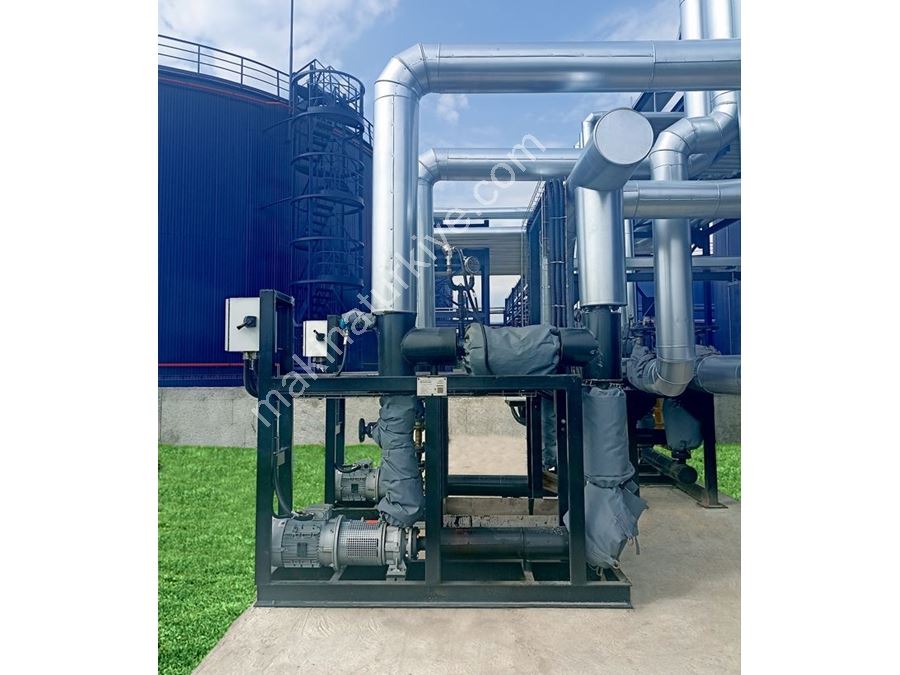

Oil pumping stations up to 150 m3/h capacity are designed to increase the pressure of heat transfer fluid in pipeline and maintain various temperature conditions in certain parts of the oil heating system. ErichHahn OPS Advantages The pumping station is designed in compliance with the European standard EN 809 + A1:2009 + AC:2010 (pumps and pump units for liquids - General safety requirements) which is the same as the Russian standard GOST EN 809-2017. The station consists of a pump unit, pipe filter (mesh filter), shut-off and control valves, measuring devices, and a control cabin. All equipment is mounted compactly on a frame with safety protections. Removable thermal insulation is provided. Pump Unit A filter is used to filter the pumped product. Measuring Devices The unit is equipped with pressure gauges, pressure and temperature transducers. These devices are used in process control. The control valve is used to automatically control the temperature of the heat transfer fluid according to process conditions. Control Panel OPS Quality Standards Operating Environment Viscous and solidifying liquids External Environment Conditions Moderate Environment Temperature, °C -40 to +40 Material Viscosity Being Pumped, NMT, cSt 10 Operating Temperature, NMT, °C 200 Capacity, m³/hour 65 Nominal Power Input, kW 15 Process Pressure, MPa 0.6 Pump Connection, DN, mm 100 Pump Type Centrifugal Motor Power, kW 15 Nominal Capacity, m³ 50 Current Frequency, Hz 50 Electric Voltage, V 380 Filter Type Heavy Material Y Filter Filter Mesh Size, mm 1 Thermal Insulation High-Density Thermal Wool Insulation, mm 100 Protective Coating, mm 0.5 Control Valve Provided Control Cabin Provided Protection Class (IP) IP 65 Overall Dimensions Length (L), mm 3000 Width (W), mm 1150 Height (H), mm 2600 Product Weight, NMT, kg 1500 Service Life, NLT, years 10 Country of Origin Turkey
Purpose of Use
The pump unit is a centrifugal pump mounted on the base plate of the station. The unit is operated with a 3-phase asynchronous motor. The pump capacity is controlled by a frequency converter.
Control Valve
The monitoring and control modes of the pumping station are performed using indicators, buttons, and switches located on the front panel of the local control cabin. Remote control mode is provided based on digital interfaces.
