75/26 Parallel Twin Screw Barrel

Summary for Managers

The 75/26 parallel twin screw barrel is a high-performance extrusion component designed for processing thermoplastics (PVC, PE, PP, etc.) in demanding applications. It features two intermeshing screws with a diameter of 75 mm and an optimized length-to-diameter (L/D) ratio of 26:1 for strong melting, mixing, and conveying of polymer compounds. Precision CNC machining and hardening processes (nitriding and chrome or Ni-alloy coatings) ensure tight tolerances (<0.02 mm concentricity) and ~60 HRC surface hardness.

This design addresses common extrusion challenges such as additive distribution, wear, and process consistency, supporting high throughput (around 200–700 kg/hour depending on the material) and homogeneous quality. In use, the 75/26 barrel makes PVC pipes/profiles, compound lines, and pelletizing highly suitable by balancing a compact and powerful mixing section with efficient heat transfer. Key advantages include excellent mixing, broad material compatibility, and ease of maintenance, while risks (e.g., wear or misalignment due to contaminants) can be managed with regular inspection and proper operation.

Polymer Extrusion Challenges

Plastic extrusion processes require precise melting and mixing of raw polymers and additives. Challenges include:

• Homogeneity: Insufficient mixing leads to streaks, weak points, or inconsistent density in the product.

• Efficiency and Residence Time: Manufacturers need high efficiency, but polymers must spend enough time under heat and shear force to fully melt and homogenize. A 26:1 barrel (shorter than the typical 32–68:1) sacrifices some mixing length for higher efficiency and a more compact machine footprint.

• Wear and Corrosion: Fillers (glass fiber, CaCO₃) and PVC stabilizers cause wear and corrosion of screws/barrels, shortening service life.

• Ventilation/Gas Removal: Removing residual moisture or volatiles (especially in recycled or PVC compounds) is critical; inadequate ventilation can lead to bubbles or gels in the melt.

The 75/26 parallel twin screw barrel is designed to address these issues. The co-rotating screw design provides intensive kneading for complete mixing (solving homogeneity issues) while maintaining high efficiency. Robust material selections and coatings resist wear and corrosion, and modular ventilation sections manage moisture removal.

75/26 Parallel Twin Screw Barrel Design

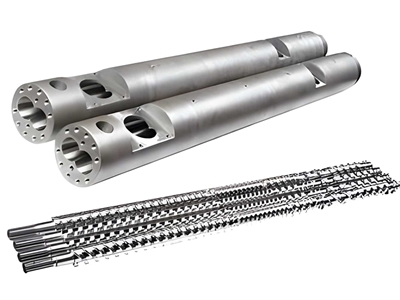

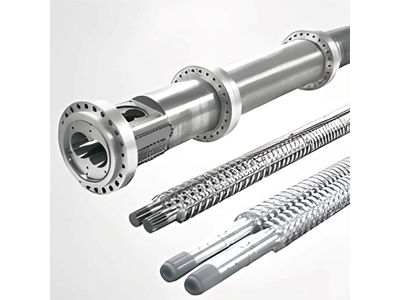

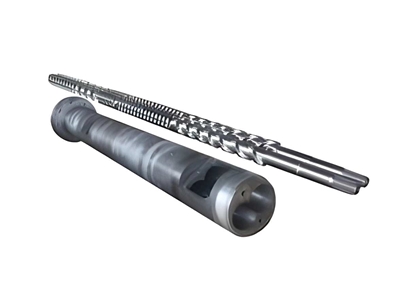

The 75/26 barrel assembly consists of two identical 75 mm diameter screws within a precisely machined barrel. Key design features include:

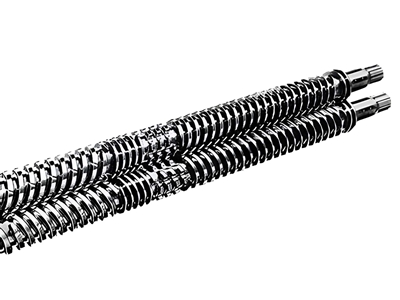

• Parallel Intermeshing Screws: Co-rotating screws with a fixed 75 mm diameter (constant Ø along the length) provide high shear force and self-cleaning action. Unlike a conical design, the straight profile ensures consistent mixing and high pressure formation.

• Length-Diameter Ratio (L:D) = 26: The total screw length is ≈ 1950 mm (26 × 75). This is slightly shorter than standard 32:1 – 68:1 barrels and supports higher RPM and efficiency. (Note: A shorter L:D may require careful screw element selection to ensure complete plasticization.)

• Modular Sections: The barrel is constructed in interchangeable heating/cooling segments with side feeding or venting ports as needed. Standard features include fixed heater holes and an internal cooling circuit that provides precise temperature control.

• Ventilation Ports: Optional venting sections (vacuum-connected) allow for gas removal. Deep venting grooves can be added to enhance self-cleaning when processing recycled or moisture-laden materials.

These design options allow the 75/26 barrel to efficiently draw solid resin into the feed zone, melt it with heat and shear force, and then thoroughly knead it to pump a homogeneous melt into the mold.

Materials and Construction

The barrel and screws are made from hardened alloy steels to resist wear:

• Base Steel: Typically medium carbon steel (e.g., 45# or 40Cr) or alloy steel (e.g., 38CrMoAlA).

• Hardening: Surfaces are precisely machined, then gas/ion nitrided or hardened to ~60–64 HRC. Nitriding can extend barrel life 2-3 times compared to untreated steel.

• Wear Coatings: The barrel bore typically receives a hard chrome or Ni-alloy liner (e.g., Ni60/X800 bimetal coating). These layers (~0.05–0.15 mm thick) enhance wear and corrosion resistance. Ni-based coatings have been shown to last 2-3 times longer under highly abrasive conditions.

• Surface Processing: Tight screw-barrel clearance and uniform pressure are maintained with solid tolerances (concentricity <0.02 mm, surface roughness Ra ≈ 0.2 – 0.4 μm).

• Cartridge Liners: Many designs use C-type liner segments within the barrel for easier replacement of worn sections. Integrated liner barrels (machined from a single piece) are also used for maximum strength.

• Seals and Heaters: The barrel segments have bolted end caps, space for screw pitch clearance, and strip heaters with thermocouples. High-precision alignment pins ensure concentric mounting.

Taken together, these construction methods yield a barrel that maintains alignment and performance under heavy-duty extrusion. The result is a homogeneous melting and mixing of the polymer with minimal residence time variation.

Performance and Applications

• Typical Operating Metrics (75 mm, 26:1): Assuming standard polymer densities and a moderate screw speed (~30–45 rpm), a 75 mm twin-screw extruder will process approximately 220–350 kg/hour of PVC/PE compound. Efficiency increases at higher RPMs or with lower viscosity resins; general industry data suggests that under ideal conditions, 450–750 kg/hour can be achieved. Maximum screw speed is typically ~60 rpm, and extrusion temperatures depend on the materials (up to ~400 °C for high-heat plastics). These barrels are typically paired with drives of 40–75 kW (commonly 55–75 kW) to meet torque requirements.

Applications include:

• PVC Pipe and Profile Extrusion: The 75 mm barrel is excellent for rigid PVC pipe/profile lines where high mixing power ensures the distribution of stabilizers and fillers. It maintains stable melt pressure for consistent wall thickness.

• Wood-Plastic Composites (WPC): Mixing wood flour or mineral fillers with PE/PVC for flooring or panels. Deep-channel kneading elements can handle high filler loads without clogging.

• Compounding & Masterbatches: Production of filled granules, plastic concentrates, or masterbatches. Closely intermeshing screws provide the homogeneous additive distribution critical for color and additive masterbatches.

• Recycling Pelletizing: Processing regrind or film scrap. Ventilation sections and self-cleaning screws remove moisture/air to yield clean recycled pellets.

• Engineering Plastics: High-temperature polymers (PA, PC) and glass-filled formulations can be reliably processed with suitable barrel coatings. Special alloy liners resist glass wear.

In every case, the 75/26 barrel can be adapted with specialized screw element series (transport, mixing, venting blocks) to optimize performance. Strong conveying forces handle low bulk density materials, and the tight self-cleaning action prevents melt stagnation.

🛠️ Technical Specifications Table

Maintenance and Service Life

• Discharge and Cleaning: After each production run, discharge the barrel with a low melting point polymer or cleaning compound to remove residues. This prevents carbon buildup.

• Wear Inspection: Periodically check the gap between the screw flights and barrel bore (using feeler gauges or comparator gauges). Excessive gap (beyond design tolerance) indicates wear; worn liners or screw segments should be replaced before efficiency drops or melt degradation occurs.

• Alignment Checks: After disassembly/reassembly, verify that the screws are concentric and that the flanges match correctly. Misalignment can lead to metal-to-metal contact and rapid wear.

• Contaminant Prevention: Use strong magnetic filters in feed systems to capture iron particles. Remove any foreign matter from the resin (screens, keys) before extrusion. Contaminants can gouge the bore or damage the screws.

• Thermal Protocols: Carefully follow startup routines: do not perform cold extrusion (always ensure materials are melted before increasing torque). Avoid excessive waiting at high temperatures. In case of power loss, immediately cool and clean the barrel to prevent the polymer inside from hardening.

• Regular Lubrication: Maintain gearbox and bearing lubrication according to manufacturer recommendations to ensure consistent screw rotation.

• Service Intervals: Depending on usage, expect to replace liners or screw elements every few hundred to thousand hours. With bimetallic coatings (Ni60/X800), service life can be 2-3 times longer under abrasive service.

By following these maintenance steps and operating within the specified parameters, a 75/26 barrel can offer a long service life. Operators should assume a baseline life of 1-3 years under normal use, with careful monitoring and the use of upgraded materials (alloy coatings, nitriding) to extend this period further.

Advantages and Competitive Features

• Superior Mixing: The twin 75 mm screws provide a strong intermeshing action, distributing additives and fillers more homogeneously than single-screw designs. This ensures consistent output quality and tight process control.

• High Efficiency: The 75 mm size with a 26:1 L/D balances efficient melting with high output. Even at moderate speeds, the 75/26 configuration can exceed 200 kg/hour for PVC and can be much higher for polyethylene, making it ideal for high-volume production.

• Material Flexibility: Compatible with a wide range of thermoplastics (PVC, PE, PP, WPC, engineering resins). The screw/barrel metallurgy (nitrided steel, Ni-alloy) resists wear from fillers, glass fibers, and PVC stabilizers, supporting abrasive or corrosive compounds.

• Modularity: The barrel's segmented design allows for quick reconfiguration of screw elements (transporters, kneaders, venting ports) to adapt to different products. This adaptability means an extruder can process multiple formulations and reduce equipment needs.

• Efficient Cooling/Heating: Internal cooling channels and heater fittings provide tight temperature zones. This is critical for PVC processing (avoiding hot spots) and crystallinity control in engineering plastics.

• Ease of Maintenance: Precision-ground barrel liners and segmented screws facilitate inspection and replacement. Quick-access barrel clamps (as seen in modern extruders) further reduce downtime.
