| Advertisement No: | #00254149 |
| Category: | Pipe Profile Bending Machine |
| Brand: | CronossTech |
| Model Type: | MB 76 CNC / 3 E |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | İkitelli OSB Mah. / Başakşehir / İstanbul |
| Sales Detail: | Negotiated |
| Delivery Status: | Made to Order |

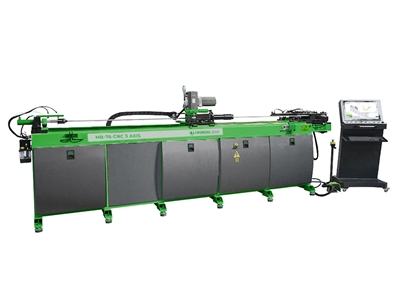

MB 76 CNC is a CNC-controlled 3-axis rotary tube bending machine capable of both mandrel and mandrel-less bending. With servo-controlled axis structure, hydraulic clamping systems, and CNC control unit supported by 3D simulation, it provides high precision, repeatability, and production efficiency. Designed for mass production and special project needs in industries such as automotive, furniture, heating-cooling, metal construction, tube, and profile processing, the machine is suitable for medium to large diameter tube bending applications. 1 set of bending dies in requested dimensions Servo motorized feeding axis Servo motorized rotating axis Servo motorized bending axis ( MB 38 CNC / 3 Axis ) Reducer-driven bending system (51 – 65 – 76 – 90) Mobile 21” colored screen CNC control unit Bending with 3D simulation Automatic emailing of detailed work reports Tracking of daily / weekly / monthly total production quantity Calculation of total material length to be used Estimation of bending time Automatic conversion of X-Y-Z data to Y-B-C axes Remote assistance and service connection Mobile pedal with emergency stop Manual and automatic bending modes Mandrel and mandrel-less bending possibility Safety sheet with switch at the back of the bending head Automatic mandrel lubrication system Hydraulic clamping system Hydraulic mandrel Hydraulic support Hydraulic linear slider system Hydraulic chucks Hydraulic oil cooler Safety lock on the electrical panel and keylock panel Electrical panel cooler Overload protection system Spare bending die set tailored to requested dimensions Servo bending (51 – 65 – 76 – 90) Safety mat (750 × 1000 mm) Safety mat (1000 × 1500 mm) Hydraulic oil heater Extra mandrel length (per meter) Spoon attachment and articulated mandrel Automatic mandrel lubrication system (51 – 65 – 76 – 90) This machine is manufactured under OEM production in Turkey, and the supply, configuration, and commercial management are carried out by CRONOSSTECH.MB 76 CNC / 3 Axis Rotary Tube Bending Machine
General Description
⚙️ Standard Features
🔩 Optional Features
📊 Technical Specifications (Ø76 × 4 mm)
Specification
Value
Max. Capacity
Ø76 × 4 mm
Max. Bending Radius
250 mm
Max. Bending Angle
190°
Hydraulic Pressure
50 – 220 bar
Working Length
4000 mm
Rotation Tolerance
±0.1
Bending Speed
Adjustable
Motor Power
23.5 kW
Machine Length
5800 mm
Machine Width
1550 mm
Machine Height
1750 mm
🏭 Production Note (OEM)
