| Advertisement No: | #00254116 |

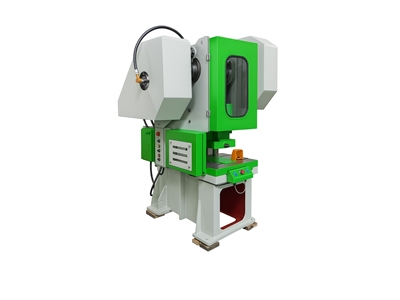

| Category: | C Type Eccentric Press |
| Brand: | CronossTech |
| Model Type: | CECP 80 |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | İkitelli OSB Mah. / Başakşehir / İstanbul |
| Sales Detail: | Negotiated |
| Delivery Status: | In stock |
Steel construction body Registration with 4 surface bearings Spheroidal cast iron connecting rod and gear bearings Crankshaft and transmission shafts are made of 4140 tempered steel Central system fully automatic grease lubrication Pneumatic clutch and brake combination Compliant with CE safety directives Double coil safety valve Manually adjustable stroke Beam barrier finger – hand protection safety system PLC control system Double foot pedal control system Mechanical safety system Emergency reverse motor movement Compliant with occupational safety regulations Compliant with CE standards Vibration preventing wedge Backup table Press feeding systems 1 set of mold with desired features 8-bearing slide Capacity: 80 Ton Throat Depth: 280 mm Table – Ram Distance: 400 mm Slide – Table Distance: 420 mm Distance Between Walls: 400 mm Variable Stroke Adjustment: 85 mm Approximate Width of Press: 1400 mm Approximate Depth of Press: 1735 mm Approximate Height of Press: 2220 mm Front Anchorage Dimension: 670 mm Side Anchorage Dimension: 1040 mm Table Hole Diameter: 190 mm Table Dimensions: 540 × 740 mm Mold Clamping Slot Diameter: 40 mm Ram Dimensions: 370 × 230 mm Table Height from Floor: 755 mm Stroke Adjustment: 10 – 100 mm Number of Strokes / Minute: 45 – 75 hits/min Motor Power: 7.5 kW Motor Speed: 1450 RPM Approximate Weight: 4000 kg This machine is manufactured by CronossTech in Turkey.C Type Eccentric Press – CECP 80 Ton
Standard Features
Optional Features
Technical Specifications
Production Information
