90/26 Parallel Twin Screw Barrel

Introduction

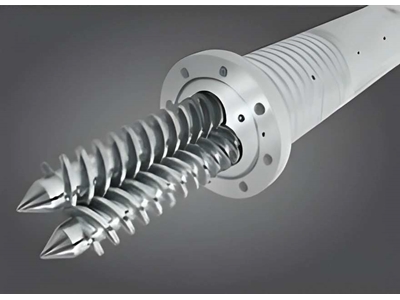

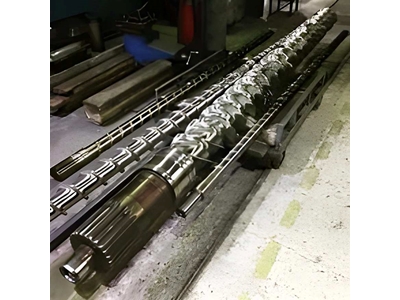

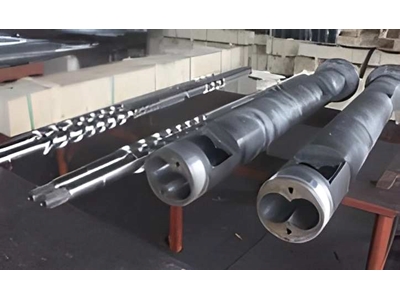

Parallel twin screw extruders are a standard for efficient polymer compounding and extrusion. In a 90/26 barrel, two screws with a diameter of 90 mm intermesh within a common barrel of approximately 2340 mm in length (L/D 26:1). This geometry creates strong shear and mixing, providing high efficiency and a homogeneous melt, offering much higher performance compared to a similar single screw.

These barrels allow for precise temperature control by being divided into independently heated zones (feeding, transition, measurement). They are commonly used in applications requiring PVC and polyolefin processing, composite sheet production, and intensive mixing of fillers or additives.

Core Application Challenge Industries require consistent high yield and pure, homogeneous mixtures (e.g., filled PVC) while controlling wear on the equipment. The 90/26 twin screw barrel addresses this issue by balancing efficiency and precision. For example, KraussMaffei's KMD 90-26 (L/D 26) model is rated for ~150 – 300 kg/hour for PVC profiles. With water-cooled barrels and screws rotating at 30 – 40 rpm (co-rotating), we assume similar general barrels can reach ~200 – 250 kg/hour (assumption; reliability: medium). Problem areas include wear on screws/barrels due to abrasive materials and heat buildup requiring effective cooling.

🛠️ Technical Specifications Table

Applications and Use Cases

90/26 twin screw barrels are excellent for applications requiring intensive mixing and high output. Key areas of use include:

• PVC Pipe and Profile Extrusion: High-volume PVC compounding (rigid PVC) typically uses vented counter-rotating twin screws, but co-rotating 90/26 machines also efficiently process filled PVC. Multiple venting zones can remove hydrogen chloride from PVC.
• Wood-Plastic Composite (WPC) Sheets: Dense wood flour or calcium carbonate loads require strong mixing. Intermeshing screws ensure a homogeneous distribution of fibers/additives, resulting in efficiency increases that translate to higher sheet line speeds compared to single screw machines.
• Cable and Wire Coating: Blending PVC or TPE compounds with fillers for insulation. High shear mixing ensures the distribution of pigments/fillers, and precise length control is possible.
• Film or Sheet Laminating: Producing compounds for co-extruded films such as multi-layer roofing or geomembranes. The twin screw ensures the homogeneity of the layer composition.
• Pelletizing Lines: Composition processes feeding pelletizers; the twin screw barrel provides venting for a stable melt and removal of volatiles.

Use Case: It should be noted that a flooring manufacturer adds a 90/26 co-rotating barrel to a WPC line. Enhanced mixing provides homogeneous color and mechanical properties, increasing line efficiency by 30%. Reduced scrap and consistent melt flow improve efficiency (incentive), while production planning can be adjusted (mitigation) in case of faster-than-expected wear (risk).

Advantages and Competitive Factors

• Superior Mixing and Efficiency: Intermeshing twin screws provide a self-cleaning action; each screw transfers the melt to the other channel, creating intense distributive and dispersive mixing. As a result, finer melt homogenization and up to 30-50% higher efficiency compared to single screws for similar motor power are achieved.
• High Wear Resistance: The use of nitrided alloy steel and surface coatings provides a long service life even in abrasive materials. This reduces downtime and total cost of ownership (TCO).

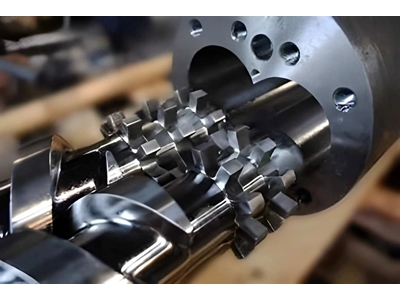

• Modular Screw Design: Screws can be reconfigured with mixing/kneading elements. Manufacturers often allow customization of the screw profile according to the customer's process.
• Temperature Control: Multi-zone heating/cooling in the barrel provides a precise melt temperature profile. Stable barrel zones prevent degradation or hot spots, which are critical for heat-sensitive PVC.
• Scalability: The 26:1 L/D ratio is long enough for complete melting but compact enough to fit a medium-sized working area, making it an ideal compromise. Modular barrel sections (feeding, venting, measurement) can be changed or extended based on common design.
• Reliability: It is a well-established design supported by decades of use, and it is assumed to exceed 20,000 hours before a major overhaul if properly maintained.
• Distinctive Features: Compared to conical (tapered) twins, the 90/26 has a fixed diameter that provides a simpler structure and lower cost. Conical designs exert higher torque but are more complex. Compared to counter-rotating twins, co-rotation allows for much higher screw speed and efficiency. Advanced suppliers may offer barrel liners for corrosive conditions such as chlorinated PVC.

Installation, Maintenance, and Support

Proper installation and maintenance are critical.

• Installation: Align barrel sections with the rigid body, ensuring the barrel is straight and the screws fit properly. Leak-free flange connections, robust support bearings, and leak tests in water cooling circuits are required.
• Startup Checks: Verify that the screw flights rotate freely and move smoothly, calibrate temperature controllers. Run the barrel at low speed in a "dry" operation according to OEM procedures to ensure the motor and gearbox are functioning.
• Routine Maintenance: Regular cleaning of the feed hopper, venting holes, and extruder die is essential to prevent buildup. Lubricate gears/bearings and monitor motor load and barrel temperatures.
• Wear Monitoring: Inspect the gap between the screw flights and the barrel inner diameter every few hundred hours. Check for gaps if plastic screws start to slip or if melt quality decreases. Repairs are justified when wear is ~0.2–0.3 mm; if wear exceeds ~0.5 mm, barrel replacement is recommended.
• Spare Parts and Training: Keep critical spares such as thermocouples, heater bands, and heavily loaded bearings on hand. A complete spare barrel liner can be stocked for high-volume operations. Operators should be trained to recognize signs of wear/overheating, and maintenance records should be kept.
• Safety: Standard extruder safety locks should be used, and high-pressure/hot barrels should be protected. If processing PVC, exhaust venting should be provided at gas venting holes.

Supply, Customization, and Support

• Delivery Time: Custom twin screw barrels are made to order, and the typical production lead time is roughly 6–12 weeks. Long barrel lengths (26 D), heat treatment cycles, and quality inspections affect this time. Accelerated options may be available at a higher cost.
• Warranty: Standard warranties cover manufacturing defects for about 12 months after delivery, while wear/erosion is generally excluded. Some suppliers may offer extended warranties.
• Customization: Buyers should specify screw configuration, venting requirements, desired materials (e.g., stainless liners for abrasive compounds), and connection flanges. A qualified supplier will verify compatibility with the extruder's gearbox and motor.
