General Makina General 944
200-250 Ton 900x650 mm Primary Type Mobile Crusher Plant
IMMEDIATE DELIVERY MOBILE CRUSHER PLANTS FROM GENERAL MACHINERY
Since 1979, we have been giving life to structures as a result of your trust
The GENERAL 944 Mobile Crusher is a crushing and screening plant produced with the latest technology, with a capacity of 200-250 tons/hour. It is effective in crushing hard stones such as Granite and Basalt found in nature.

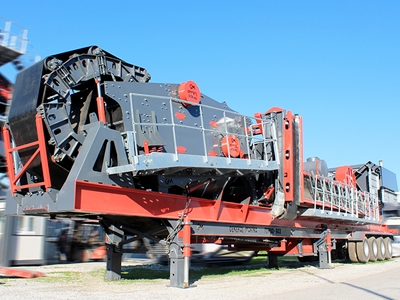

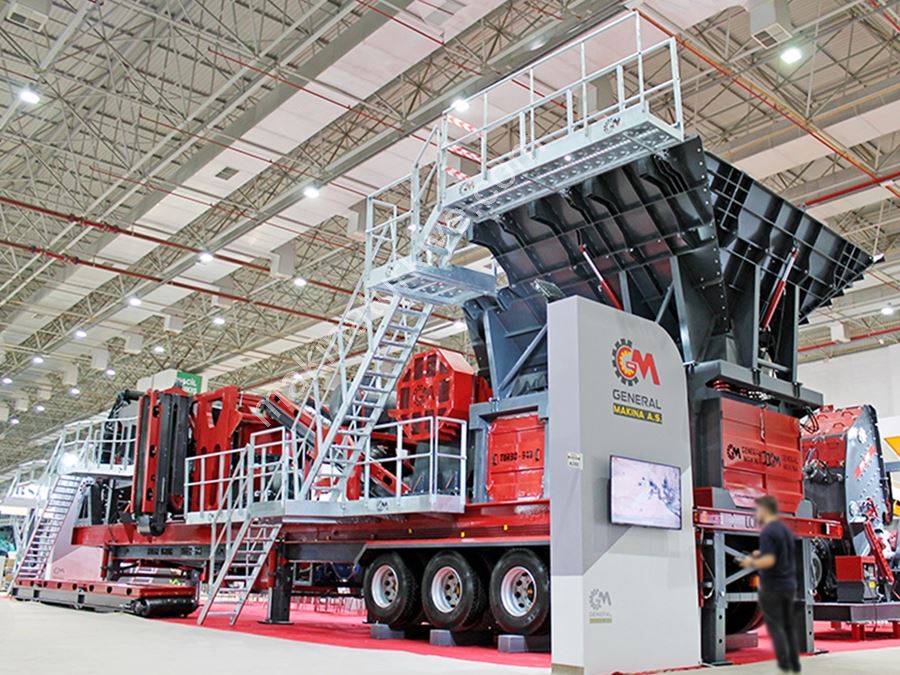

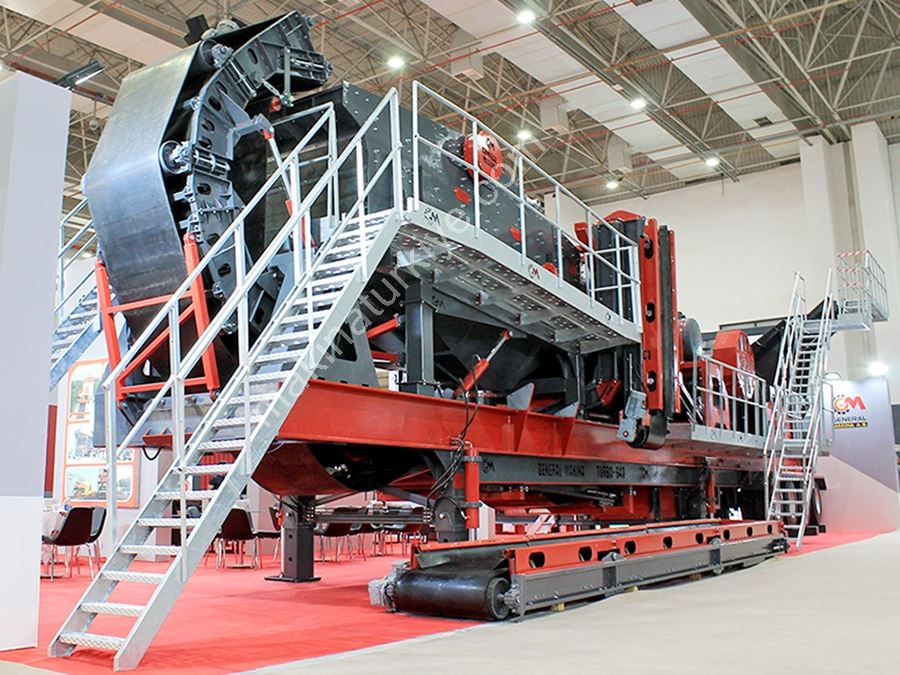

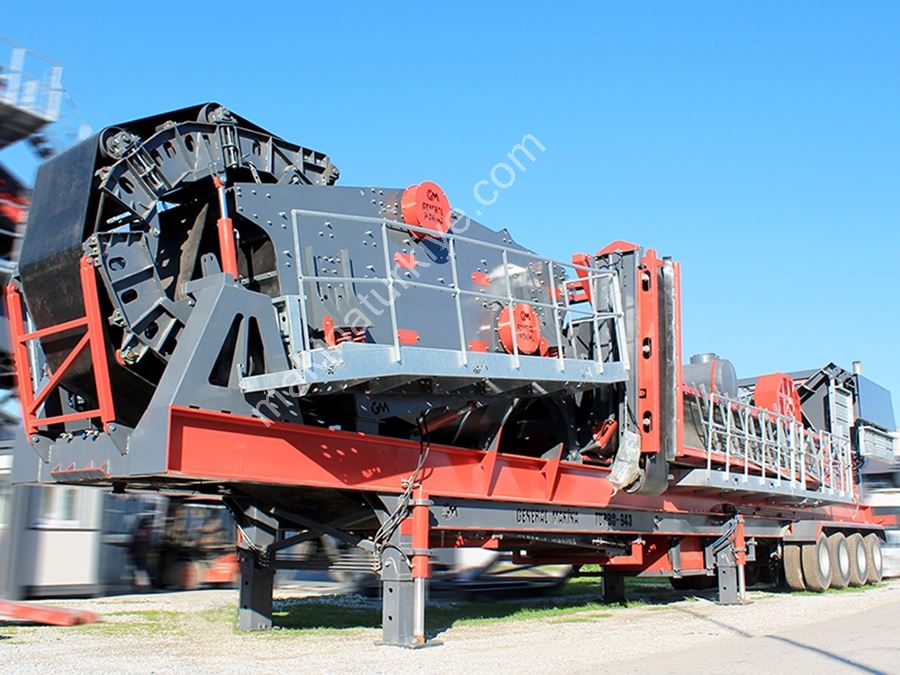

The GENERAL 944 closed circuit crushing and screening plant has combined the entire system on a single chassis and can be easily transported by a truck.
It can be easily commissioned and product can be obtained within 30 minutes.
It is a recent crushing plant that can be used for breaking natural stones such as hard and difficult-to-crush stones (Basalt, Granite) and ores (Iron Ore, Chrome Ore, Quartz).
* Vibrating Feeder and Hopper
The feeding system is driven by 2 vibromotors. 15 m3. This provides smooth operation and minimum maintenance.
The feeder hopper is suitable for feeding with an Excavator and Loader, and additional hoppers can be used for feeding with a truck in continuous operations.
All wear points in the feeder and hopper are protected with replaceable wear plates.
There is a screening system on the feeder table. Thanks to the by-pass conveyor, this screened soil material can be dumped into the stock area.

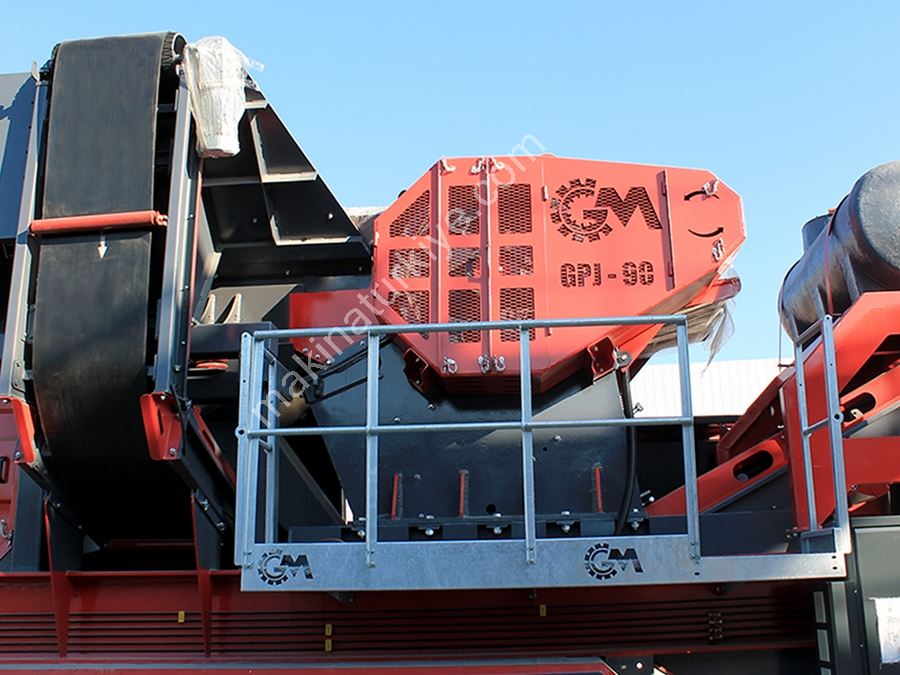

* Jaw Crusher (Crusher)
Size: 900x650 mm Primary type
Motor power: 75-90 Kw
It has an adjustable mechanism, and the jaw crusher can be easily adjusted.
* Main Conveyor Belt System 800 mm
The tracked type conveyor is rubberized.

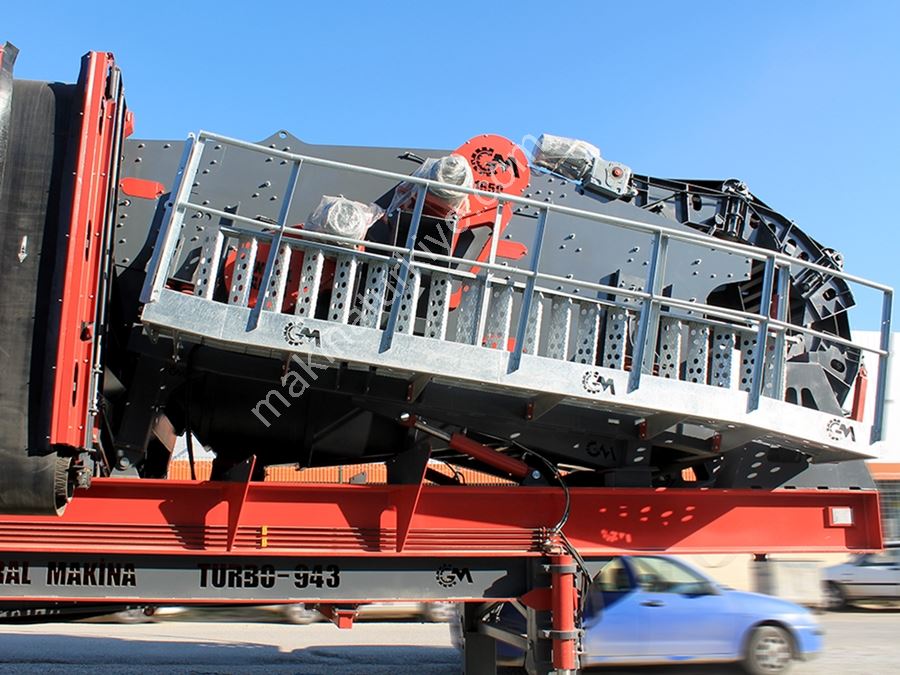

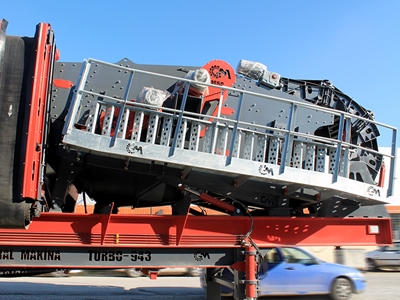

* Vibrating Screen System High Capacity type
Size: 1500x3700mm
Motor Power 2 units 7.5 KW
Number of Decks: 3 Decks

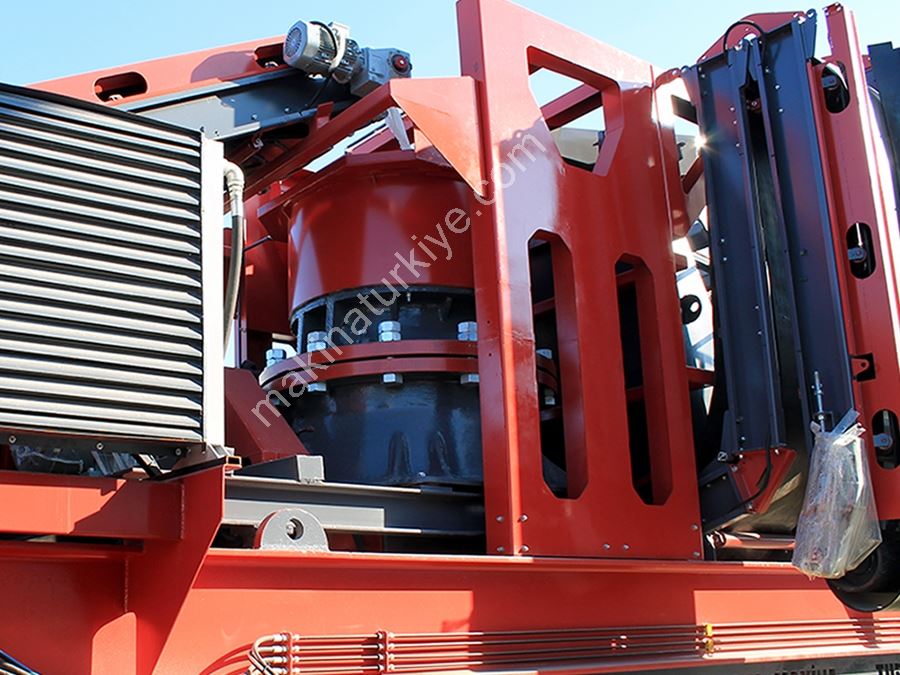

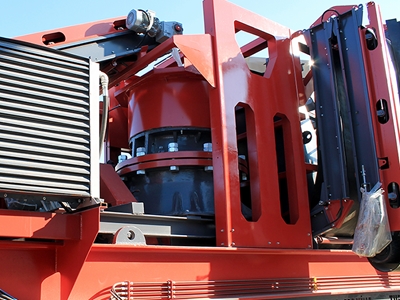

* Hydraulic Cone Crusher Unit
Maximum feed size: 210 mm
Crusher Motor 132 kW
Hydraulic and lubrication unit
Motor pulley
V-belt
Motor base
The machine comes with its own liners
Hydraulic cylinder adjustment and compression ring
Overload protection provided by double-acting cylinders and accumulators
Counter shaft system
Conical head system with inner bearings and spherical bearings
Excentric system
Adjustment box and hydraulic motor crusher upper chassis system
Lubrication/Hydraulic
* Screen Under Stock Conveyor 1000 mm
Folding type
* Stock Conveyor 2 units 600 mm Folding type
* 2nd Crusher Main Belt Conveyor 5000 mm Folding type

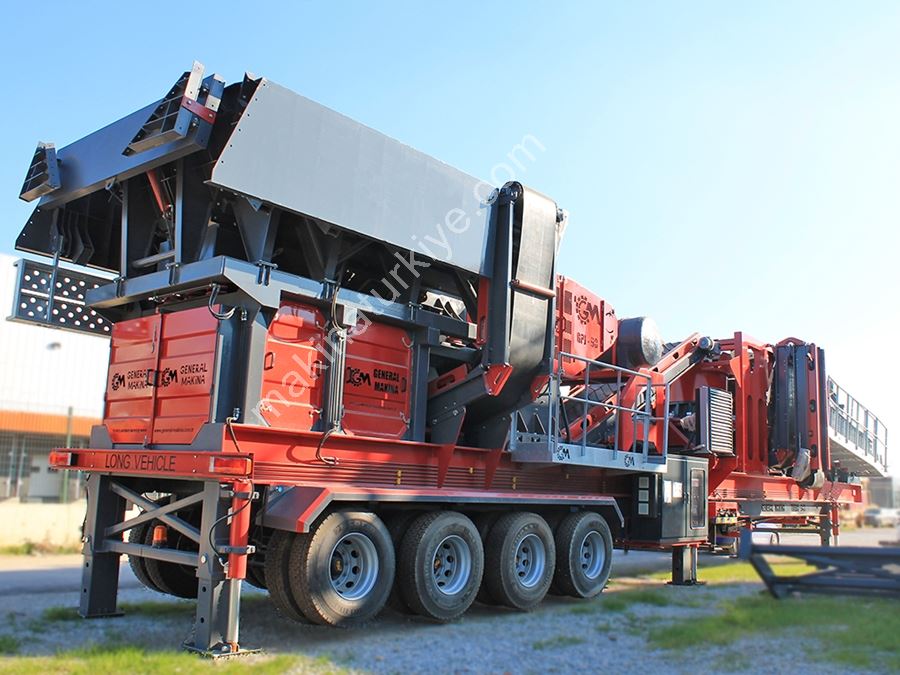

* Mobile Chassis System 3 Axle Special construction Chassis
* Hydraulic System
The system has 6 hydraulic leg mechanisms, these legs are reinforced with 6 fixed legs after being locked.
Hydraulic Power System 125 Liters
Magnetic Conveyor Belt 750 mm (Optional)
* Panel Material is Schneider Electric or Telemecanique Brand.
* The panel system has an Abb Soft Starter system and a special control system.
All functions can be controlled via Remote Control (Radio control System).
The Generator System is optional and includes 6 Cylinder diesel engines from Cummins, Perkins, Doosan, Deutz brands and Marelli Alternator.
Capacity: Varies according to the material to be crushed and feeding, final product sizes, with a capacity of 160 - 240 tons.
The Dust Suppression System prevents dust by spraying high-pressure water through nozzles on the conveyors.
Feeders are equipped with vibromotors from Emtaş or İtalvibras, Oli Brand.
Drive drums are rubber-coated and gear type.
Electric Motors are from Gamak, Emtaş, İnter, Arr Brands.
Reducers are special reducers with 3 transmissions.
Conveyor Belt Rubbers are from Derby or Eksaş Brands.
Bearings: SKF or Equivalent Bearings
The flat products used are Ereğli Iron and Steel Products and are of A1 Quality.
* By-pass system (optional)
* Magnetic magnet (optional)
* Generator System (optional)
* Additional Hopper for feeding with a truck (optional)
* Dust Suppression System (optional)
* Frequency Control System is used instead of soft starter.
This system allows the adjustment of the crusher's operating cycle. Additionally, when working with a generator, this device enables operation without demurrage, low generator selection, and low fuel consumption. Approximate fuel consumption is 30 - 35 Lt/Hour (Optional) ** All our products are CE certified by the European Union.
** Shipping Dimensions: Width 3000 mm x Length 21,000 mm x Height 4500 mm
GENERAL MACHINERY, one of the leading organizations in the manufacturing of stone and ore crushing, screening, washing, grinding, and stocking equipment in Turkey, has been serving since 1979 with a 5,000m closed and 10,000m open machine park in İzmir. Our showroom in Ankara/Ostim has been operational since 2008.
