| Advertisement No: | #00254150 |
| Category: | Pipe Profile Bending Machine |
| Brand: | CronossTech |
| Model Type: | MB 90 CNC / 3 EKSEN |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | İkitelli OSB Mah. / Başakşehir / İstanbul |
| Sales Detail: | Negotiated |
| Delivery Status: | Made to Order |

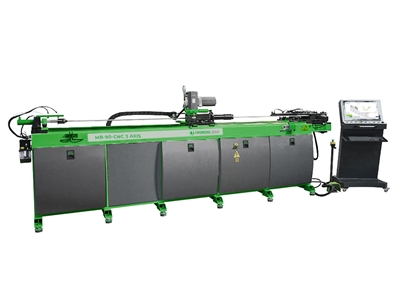

MB 90 CNC is a CNC controlled 3 axis tube bending machine capable of mandrel and mandrel-free bending. With servo-controlled axis structure, hydraulic clamping systems, and CNC control unit supported by 3D simulation, it provides high precision, repeatability, and production efficiency. Designed for serial production and special project requirements for large diameter tube bending applications in industries such as automotive, furniture, heating-cooling, metal construction, tube, and profile processing. 1 set of bending mold according to customer's requirements Servo motorized feed axis Servo motorized rotation axis Servo motorized bending axis ( MB 38 CNC / 3 Axis ) Reducer-driven bending system (51 - 65 - 76 - 90) Mobile 21" color screen CNC control unit 3D simulation bending Automatic email sending of detailed work reports Daily / weekly / monthly total production quantity tracking Total material length to be used calculation Estimation of bending time calculation Automatic conversion of X-Y-Z data to Y-B-C axes Remote assistance and service connection Portable foot pedal with emergency stop Manual and automatic bending modes Mandrel and mandrel-free bending capability Safety plate with switch behind the bending head Automatic mandrel lubrication system Hydraulic clamping system Hydraulic mandrel Hydraulic support Hydraulic linear slider system Hydraulic pen Hydraulic oil cooler Safety lock on the electrical panel and key lock on the panel Electrical panel cooler Protection system against overload Spare bending mold set according to desired dimensions Servo bending (51 - 65 - 76 - 90) Safety mat (750 × 1000 mm) Safety mat (1000 × 1500 mm) Hydraulic oil heater Extra mandrel length (per meter) Spoon attachment and articulated mandrel Automatic mandrel lubrication system (51 - 65 - 76 - 90) This machine is produced within the scope of OEM production in Turkey, and supply, configuration, and commercial management are carried out by CRONOSSTECH.MB 90 CNC / 3 Axis Mandrel Tube Bending Machine
General Description
⚙️ Standard Features
🔩 Optional Features
📊 Technical Specifications (Ø90 × 4 mm)
Feature
Value
Max. Capacity
Ø90 × 4 mm
Max. Bending Radius
250 mm
Max. Bending Angle
190°
Hydraulic Pressure
50 - 220 bar
Working Length
4000 mm
Rotation Tolerance
±0.1
Bending Speed
Adjustable
Motor Power
27.5 kW
Machine Length
5800 mm
Machine Width
1550 mm
Machine Height
1750 mm
🏭 Production Note (OEM)
