96X96 Mm Digital Thermostat

Advertisement No:	#00221163
Category:	Thermostat
Brand:	Enda
Model Type:	ETC 9420
Product Type:	For Sale
Product Status:	New
Origin:	Turkey
Location:	Yeşilce Mah. / Kağıthane / İstanbul
Sales Detail:	Bank Transfer, Negotiated
Delivery Status:	In stock

Price:

Ask For Price

Min. Sipariş 1 Piece

Send Inquiry

Purchasing Tips

Protect your privacy, review the product descriptions...

Contact the seller

CTS Otomasyon

Özdirenç Elektrik Makine Ve Otomasyon Sistemleri San. Tic. Ltd. Şti.

Advisor : Özdirenç E.

Go to the store

Add to My Favorite Store

All Ads

+90 212 325 60 **

+90 850 255 01 **

+90 555 545 92 **

Send Message

Fast Chat

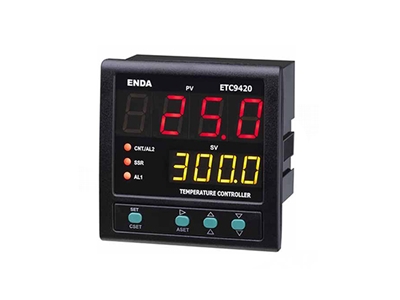

Enda ETC 9420

96x96 mm Digital Thermostat

ETC9420 is a digital temperature controller with PID control formula. It responds to all your operations with selectable Pt-100 and thermocouple inputs from the keypad. With the self-tune feature, it automatically adjusts the best PID parameters. The device, which has a ramp function, allows simultaneous monitoring of set and process values thanks to its dual display screen. Data can be transferred and controlled via the ModBus RTU protocol with the optional RS485 module in the device, which has selectable SSR or relay output. The device programmed with safety parameters cannot be interfered with from the outside. Necessary set adjustments can be easily made with the ergonomic keypad.

DISPLAY AND KEYPAD
TEMPERATURE DISPLAY (PV)	4 digits 20 mm, 7-segment red LED
SET VALUE DISPLAY (SV)	4 digits, 14 mm 7-segment yellow LED
CONTROL/ALARM 2	1 red output LED
ALARM 1	1 red output LED
SSR	1 red output LED
KEYPAD	Micro switch
ENCLOSURE
ENCLOSURE SHAPE	It is placed on the panel by compression.
DIMENSIONS	G96xY96xD50 mm
WEIGHT	Approximately 400 grams (with packaging)
ELECTRICAL PROPERTIES
POWER SUPPLY VOLTAGE	230Vac +%10 -%20, 50/60Hz 24Vac ±%10, 50/60Hz 9-30Vdc / 7-24Vac ±%10 SMPS module
POWER CONSUMPTION	7VA
CONNECTION	2.5 mm² terminal block with socket
INPUT	Selectable multi-input (thermocouple or Pt-100)
SCALE	0…600 °C for Fe-Const (J) thermocouple 0…1200 °C for NiCr-Ni (K) thermocouple 0…400 °C for Cu-Conts (T) thermocouple 0…1600 °C for Pt10Rh-Pt (S) thermocouple 0…1600 °C for Pt13Rh-Pt (R) thermocouple -200…600 °C for Pt-100 resistance thermometer -99.9…300.0 °C for Pt-100 resistance thermometer
ACCURACY	±%0.2 (of full scale) ±1 digit
OPERATING TEMPERATURE °C	0…50 °C
DATA PROTECTION	EEPROM (minimum 10 years)
OUTPUTS
CONTROL OUTPUT	12Vdc 20mA logic output
CONTROL/ALARM 2 OUTPUT	1 relay: 250Vac, 2A (for resistive load), NO+NC
ALARM 1 OUTPUT	1 relay: 250Vac, 2A (for resistive load), NO/NC (selectable)
CONTROL
CONTROL FORM	On-Off / P, PI, PD, PID (selectable)
SAMPLING TIME	400ms
PROPORTIONAL BAND	Adjustable between %0.0 and %100.0.
INTEGRAL TIME	Adjustable between 0.0 and 100.0 min.
DERIVATIVE TIME	Adjustable between 0.00 and 25.00 min.
CONTROL PERIOD	Adjustable between 1 and 250s.
HYSTERESIS	Adjustable between 1 and 50°C/F.
OUTPUT POWER	The ratio at the set value can be adjusted between %0 and %100.
