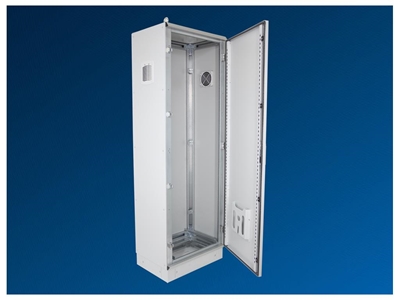

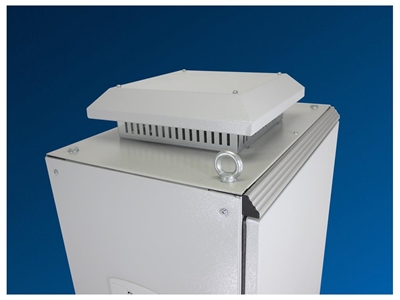

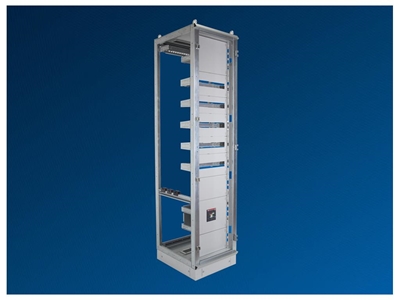

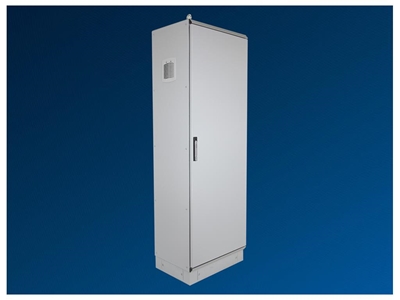

Dikili Type Electrical Panel

EPS Dikili Type Electrical Panel

About the Product

The upright internal type electrical panels produced in accordance with the TS-EN 61439-1 standard are designed to create a safe, long-lasting, and organized electrical distribution infrastructure in industrial facilities. Thanks to their robust body structure, high sheet thicknesses, and galvanized surfaces, they offer high resistance against impacts, corrosion, and harsh working conditions.

All panels have undergone relevant type tests, and the test reports and documents are included in the product documentation. This way, both quality and safety standards are officially documented.

Areas of Use

These upright type panels are particularly preferred in the following areas:

Factories and production facilities
Energy distribution centers
Organized industrial zones and industrial areas
Machine control and automation systems
Indoor electrical distribution rooms
Industrial projects and infrastructure applications

Thanks to its design intended for indoor use, it provides trouble-free service for many years in closed areas.

General Features

All sheets used, except for the inner cover sheet, are galvanized with 100 gr/m². This structure ensures that the panel is resistant to corrosion and significantly extends its service life.

The surface coated with electrostatic powder paint provides both an aesthetic appearance and extra protection against external factors. Thanks to the RAL 7035 standard color, it offers visual harmony and a professional appearance in industrial facilities.

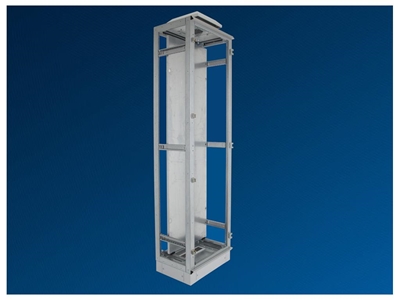

Thanks to its strong frame structure and high sheet thicknesses, the panel maintains its form even in heavy equipment installations and shows resistance to vibration.

Technical Specifications

Sheet thicknesses are determined based on industrial durability:

Frame uprights: 1.5 mm
Frame corners: 4.0 mm
Mounting plate: 1.5 – 2.0 mm
Front doors: 1.5 mm
Side and rear covers: 1.2 mm
Base parts: 2.0 mm
Inner cover sheet arrangement: 1.0 mm

Paint properties:

Paint type: Electrostatic powder paint
Paint color: RAL 7035
Paint thickness: 70 – 90 microns

Thanks to these values, the panel shows high resistance against both mechanical impacts and environmental conditions.

Shipping and Delivery

Products are prepared with special packaging to prevent damage during shipment.
Safe shipping and transportation options are provided to all parts of Turkey.

Shipping can be done on the same day or shortly after, depending on stock availability.
For custom measurements and project-based productions, the delivery time is determined according to the production plan and shared clearly with the customer.
