| Advertisement No: | #00256065 |
| Category: | Extruder Lamination Machine |
| Brand: | Kaizenkap |
| Model Type: | KDSCM-1100-2000B |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | Çavuşoğlu Mah. / Kartal / İstanbul |
| Sales Detail: | Bank Transfer, Credit Cart, Negotiated |
| Delivery Status: | In stock |

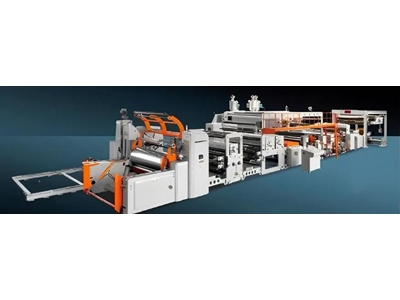

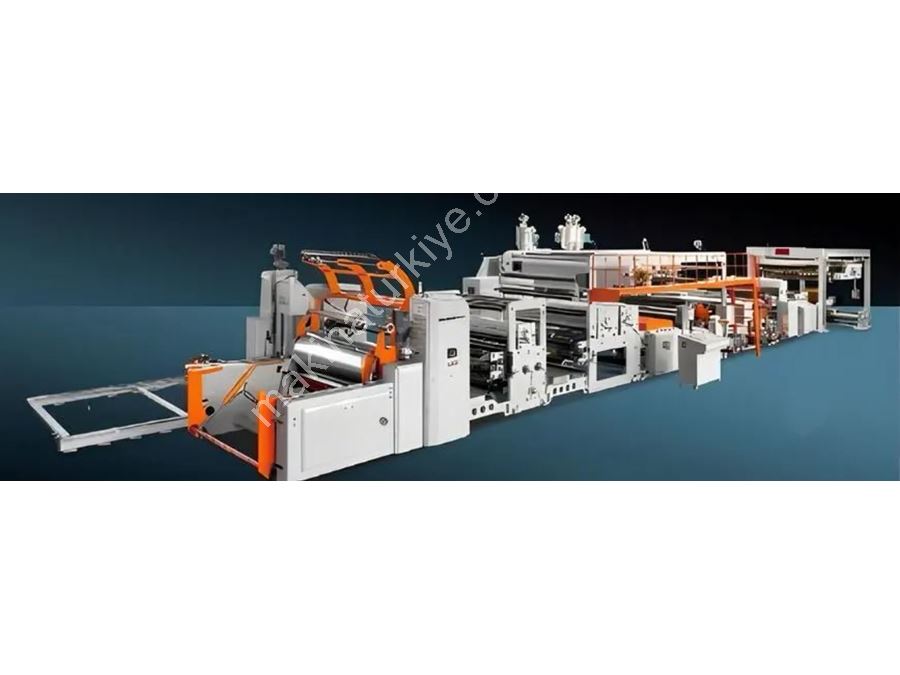

KDSCM-1100-2000B Double-Sided High-Speed Extrusion Coating and Lamination Machine (Auto Splicer) Areas of Use Technical Specifications General Features Shipping and Delivery
The KDSCM-1100-2000B model is an advanced extrusion machine that performs double-sided coating and lamination processes at high speed. Thanks to the auto splicer system, reel changes can be made without stopping production, allowing the line to continue operating without interruption. With double-sided coating technology, coating is applied to both surfaces of the material simultaneously, resulting in high-strength and long-lasting composite structures. This system significantly increases efficiency, especially in high-capacity packaging production lines.
• Multi-layer packaging production
• Paper cup and cardboard container production
• Food and beverage packaging
• Aluminum foil and composite product production
• Industrial coating and lamination applications
• Protective and insulation materials
Feature
Value
Model
KDSCM-1100-2000B
Machine Features
1100/90 mm – 1300/100 mm – 1500/105 mm – 1800/100 mm
Maximum Base Speed
300 m/min
Maximum Coating Film Speed
250 m/min
Suitable Coating Material
LDPE, PP, EVA, EAA, PLA, PPS
Suitable Material to be Coated
Paper, BOPP, BOPET, BOPA, CPP, CPE, Aluminum
Coating Film Width
1100/90 mm – 1300/100 mm – 1500/105 mm – 1800/110 mm
Coating Film Thickness
0.012 – 0.1 mm
Thickness Tolerance
±5%
Cooling Cylinder
Ø800 mm
Screw L/D Ratio
Ø90:33 / Ø100:33 / Ø105:33 / Ø110:33
Maximum Reel Unwinding Diameter
1600 mm
Auxiliary Unwinding Diameter
600 mm
Reel Winding Diameter
1600 mm
The KDSCM-1100-2000B model creates a balanced and strong structure on both surfaces of the products thanks to its double-sided coating feature. With the auto splicer system, production continues without interruption, minimizing production losses. Maximum performance is achieved in mass production facilities due to its high-speed capacity. All production parameters such as temperature, speed, and pressure are precisely managed with the PLC-controlled automation system, ensuring stable production quality.
• Production and shipping are done according to the order
• Shipping is available throughout Turkey
• Products are carefully packaged for shipment
• Delivery time varies depending on production and stock status
