About KDSHS2G-1100-2000B Double-Sided High-Speed Extrusion Coating and Lamination Machine Areas of Use Technical Specifications General Features Shipping and Delivery

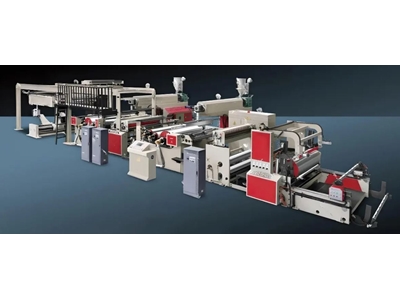

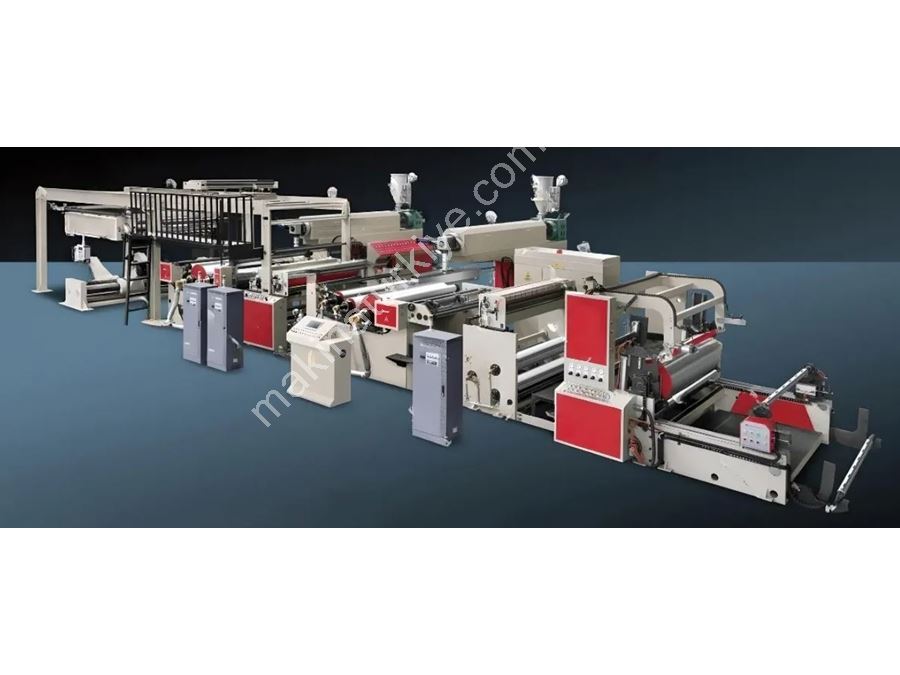

The KDSHS2G-1100-2000B model is a second-generation high-speed extrusion line that can coat and laminate both surfaces of the material simultaneously. Thanks to the double-sided extrusion technology, multi-layered, high-strength, and waterproof composite structures are obtained in a single pass. It provides maximum efficiency for facilities with high-volume production due to its improved production speed and wide operating range.
• Multi-layer packaging production
• Production of paper cups and cardboard containers
• Food and beverage packaging
• Labels and paper-based products
• Insulation and protective materials
• Industrial composite production
Feature
Value
Model
KDSHS2G-1100-2000B
Machine Features
1100/90 mm – 1300/100 mm – 1500/105 mm – 1800/110 mm
Maximum Coating Speed
150 – 180 – 250 m/min
Suitable Coating Material
LDPE, PP, EVA
Suitable Material to be Coated
BOPP, BOPET, BOPA, CPP, CPE, Paper
Coating Film Width
1100 – 1800 mm
Coating Film Thickness
0.012 – 0.1 mm
Thickness Tolerance
±5%
Cooling Cylinder Diameter
500 – 600 – 700 mm
Screw L/D Ratio
Ø90:33 / Ø100:33 / Ø105:33 / Ø110:33
Main Reel Diameter
800 – 1500 mm
Auxiliary Reel Diameter
600 mm
Winding Reel Diameter
800 – 1700 mm
This model creates a homogeneous and strong structure on both surfaces of the product with its double-sided coating feature. Thanks to its improved second-generation design, it offers higher speed, more stable production, and lower waste rates. All parameters such as temperature, speed, and pressure can be managed precisely with the PLC-controlled system. It provides flexible production opportunities with a wide reel capacity and different production options. It is an ideal solution, especially for high-capacity packaging production facilities.
• Production and shipping are done according to the order
• Shipping is available throughout Turkey
• Products are carefully packaged for shipment
• Delivery time varies depending on production and stock status
