| Advertisement No: | #00141597 |
| Category: | Roll Form Machines |
| Brand: | Teknofinsteel |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | Başakşehir Mah. / Başakşehir / İstanbul |
| Warranty Status: | 5 Yıl Guaranteed |
| Sales Detail: | Maturity occurs, Guaranteed Sale Available, Suitable for Leasing, Credit Card Installments, Selling with a Check, Bank Transfer, Credit Cart, Eligible for Credit, Supported by Kosgeb, Negotiated |
| Delivery Status: | 60 Day |

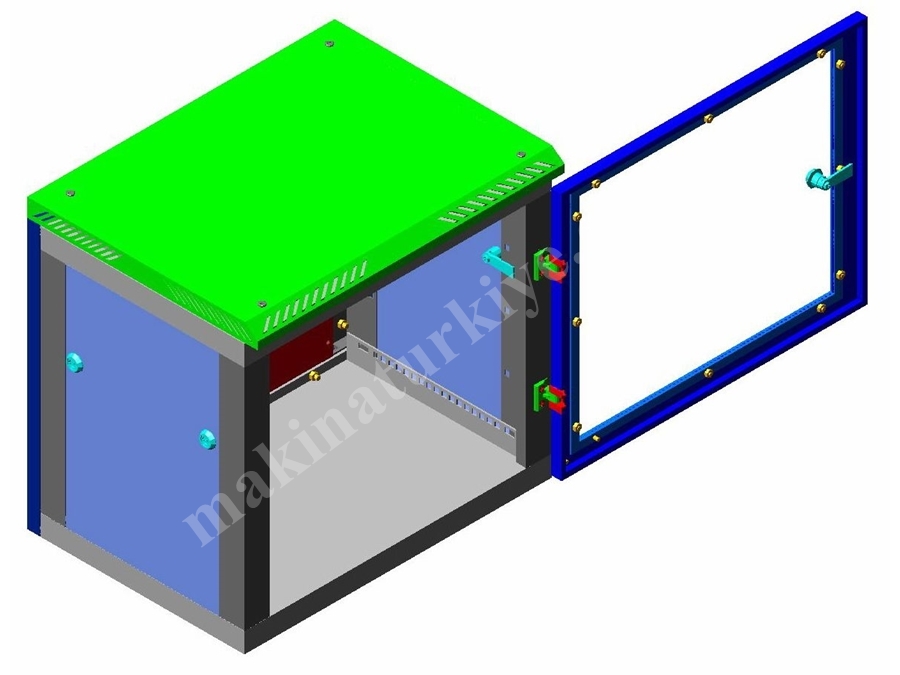

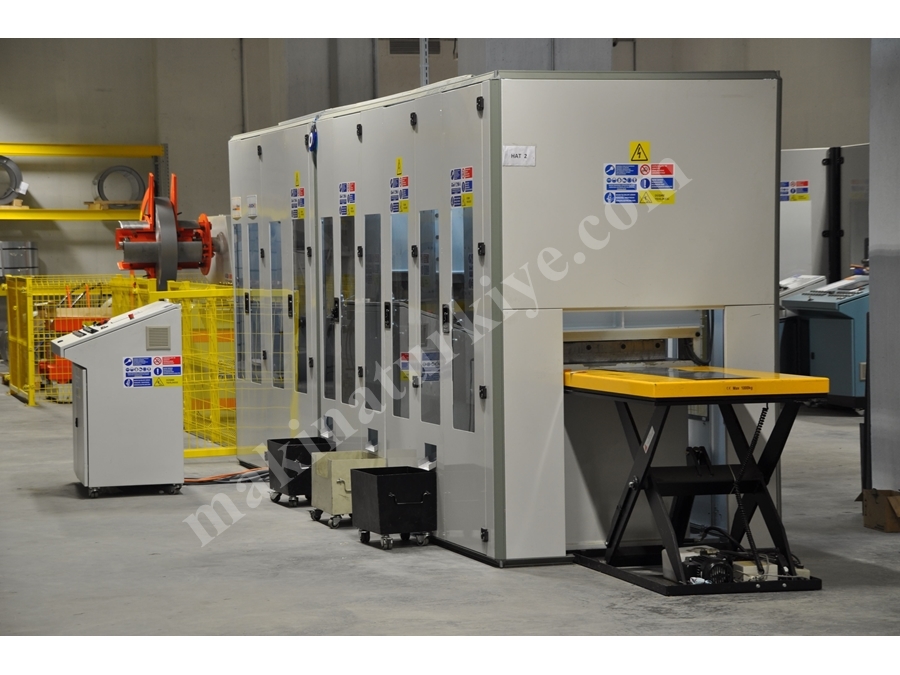

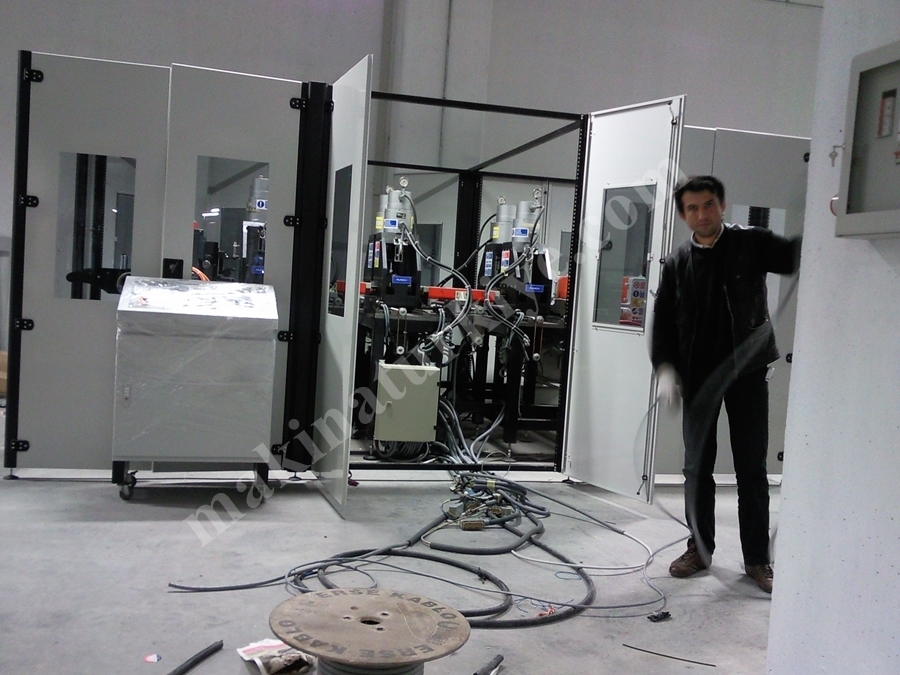

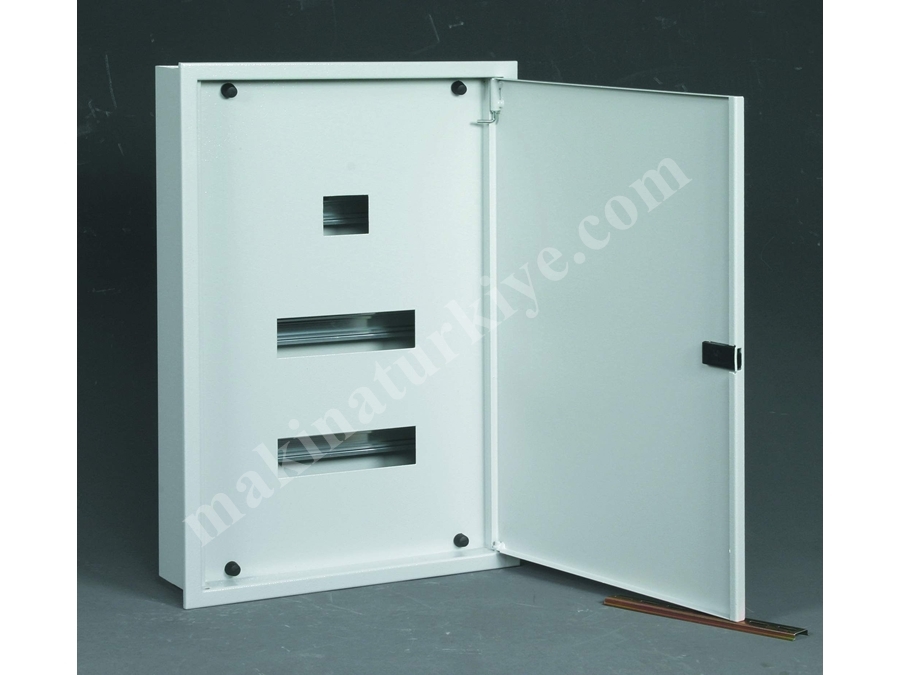

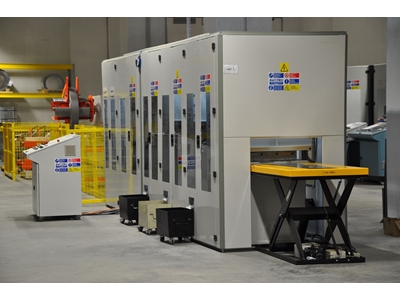

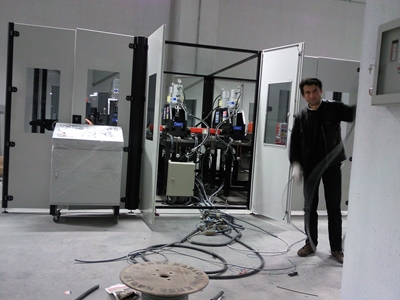

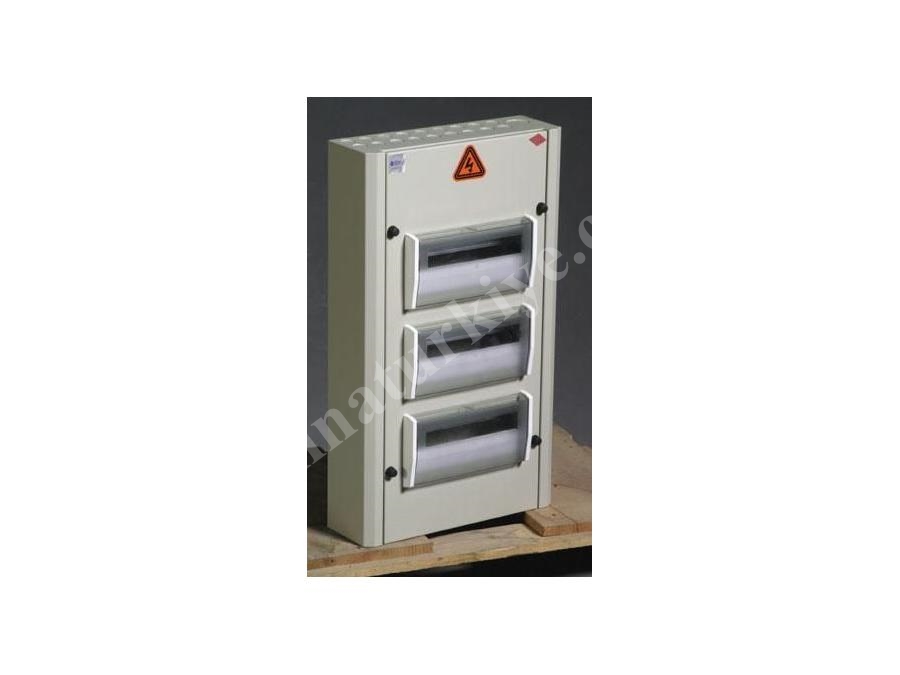

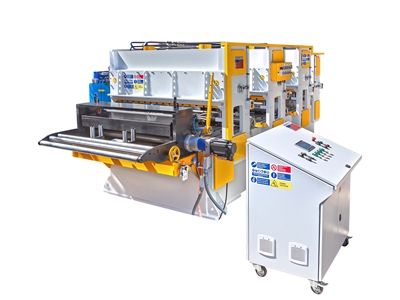

Electrical panel production line UNIVERSAL ELECTRICAL PANEL PRODUCTION LINE TFS600 Material thickness range(mm) 300mm 400mm 500mm 600mm material thickness 0.8 300mm 400mm 500mmm 600mm 1 1,20 1,50 2 300mm 2.20 300mm 200mm 2,40 200mm 120mm 2,80 250mm 300mm 3 200mm 150mm 100mm Coil Width (mm) 75-300 75-400 75-500 75-600 Coil Thickness (mm) 0.8-3.2 Uncoiler Expansion hydraulic Load Weight (kg) 3000-5000 Coil I.O. (mm) 508 Coil. O. D (mm) 1200 Servo Motor (kw) AC5.5 Uncoiler Motor 1.5KW 2.2KW Straightener Roll (Qty) upper 5/lower4 Feed Roll Feed pitch Accuracy(mm) Loop Control Photoelectric sensor Speed Range (m/min) 0-15 Air Supply (kg/cm2) 5
TECHNICAL INFORMATION
FORM PUNCH 1-500
FORM PUNCH 2-500
FORM PUNCH 3-500
FORM GUILLOTINE 4-500

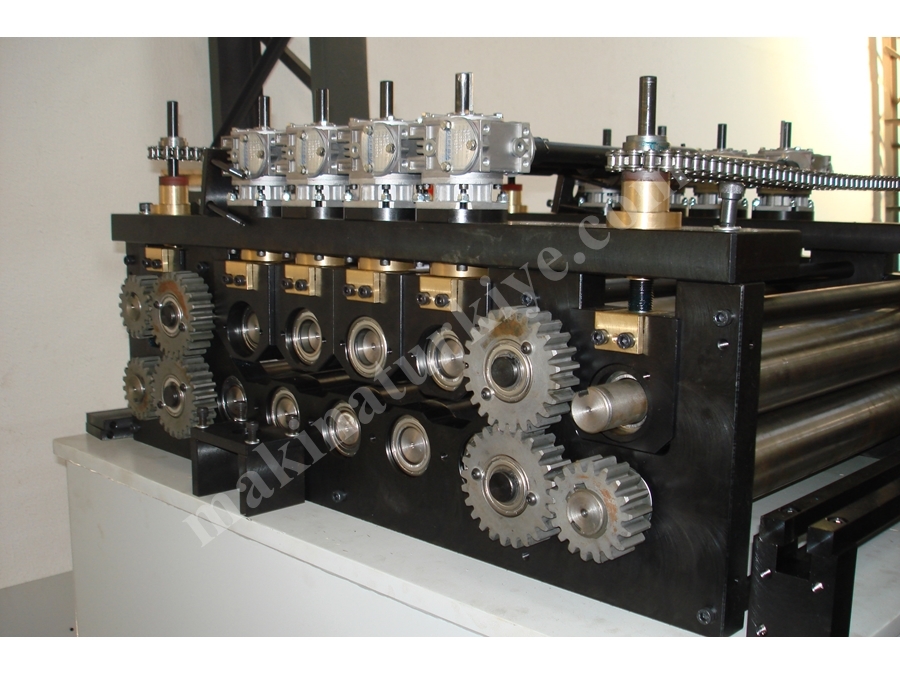

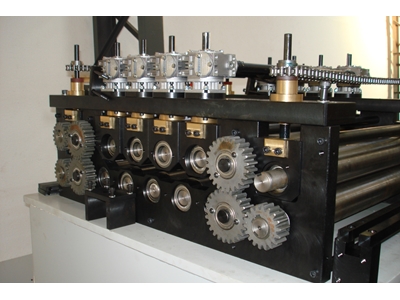

STRAIGHTENER - DRIVER
COIL UNWINDING UNIT
Sheet Thickness (mm)
0.3 - 2.2
0.3 - 2.2
0.3 - 2.2
0.3 - 2.2
Thickness 0.5 ~2.3 mm → Width 600 mm
Hydraulic driven and speed controlled
Thickness 2.5 mm → Width 500 mm
Thickness 2.8 mm → Width 400 mm
Thickness 3.2 mm → Width 300 mm
Thickness 4.5 mm → Width 150 mm
Coil width (mm)
30 - 450
30 - 450
30 - 450
30 - 450
Hydraulic piston (ton/bar)
40 / 250
40 / 250
40 / 250
40 / 250
Atos valve
2x(DKI 17-11-24 DC)
2x(DKI 17-11-24 DC)
2x(DKI 17-11-24 DC)
2x(DKI 17-11-24 DC)
2x(DHI 07-13-24)
2x(DHI 07-13-24)
Hydraulic pump1 (kw)
22 Kw DKI 17-11-24 DC
Hydraulic pump 2 (Roll) (kw)
1.5 Kw DKI 17-11-24 DC
Hydraulic oil (litre)
750
Hydraulic oil tank(mm)
1210x900x930
Max Coil diameter(mm)
Ø 1200
Ø 1200
Max Coil Inner diameter (mm)
Ø 490
Ø 480 – Ø 520
Max coil weight (kg)
3000
3 TON
Pulling Drum Number (pcs)
2
Straightening Drum Number (pcs)
9
System Speed (m/min)
12
Servo motor (kw)
AC 5.5 KW
Control unit
Rexort
Coil opening motor (kw)
AC 1.5 KW
Coil clamping Mechanism
Hydraulic / Manual Operation
Air Pressure (kg/cm²)
6
Dimensions (mm)
2500x12000x2350
Machine weight (kg)
8500
Hydraulic Conveyor
1300x800
GENERAL INFORMATION
Teknofinsteel has a deep knowledge and experience in sheet cutting and bending technologies. By adopting a solution-oriented approach and a continuously innovative mindset, it offers its users higher efficiency, lower production costs, and advanced ergonomic features.
In light of these principles, Teknofinsteel has prioritized customer satisfaction and has introduced the Teknopres press line machine, a new product of this understanding, to its users.
The innovative machine structure, fast hydraulic system, and encoder with 10000 pulse feature provide precise sheet feeding, allowing the connection of a suitably tonnage press mold for processing the sheet. The touch control panel allows each punch work cycle to occur smoothly.
FEATURES
* Body and welded parts that have undergone tension relief processing
* Cable line enabling high data transfer between motors, hydraulic and CNC control.
* Precise servo driver
* Precise measurement with encoder
* 3 mold clamping presses and 1 shear

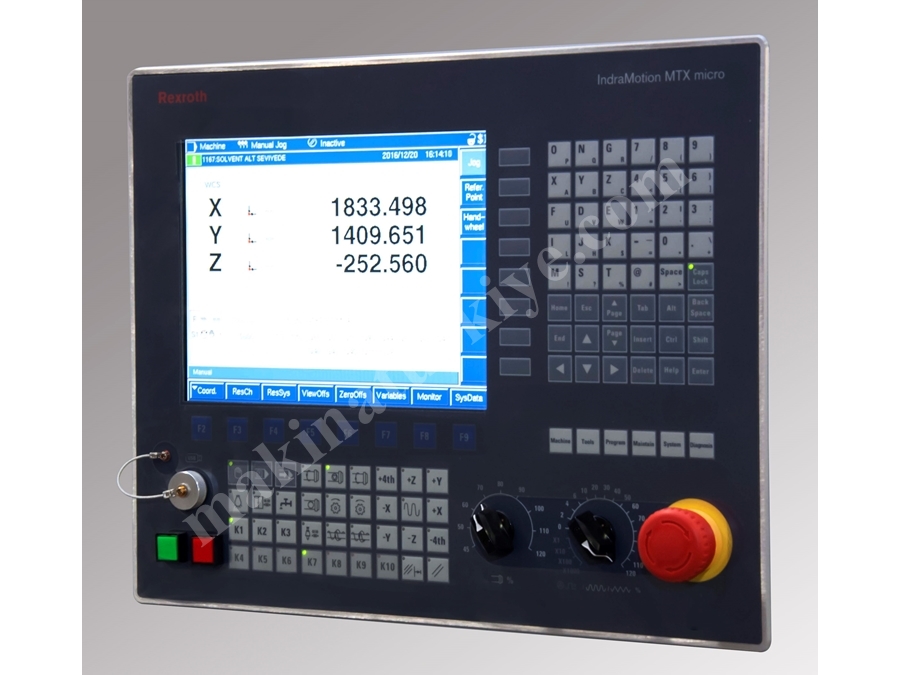

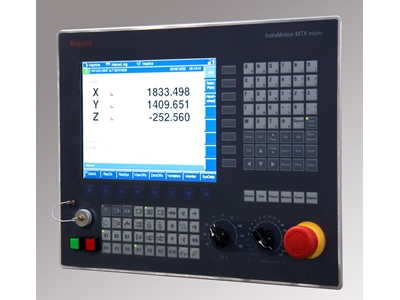

* Touch control panel
* Ability to create program recipes

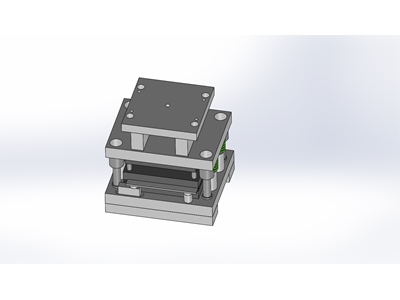

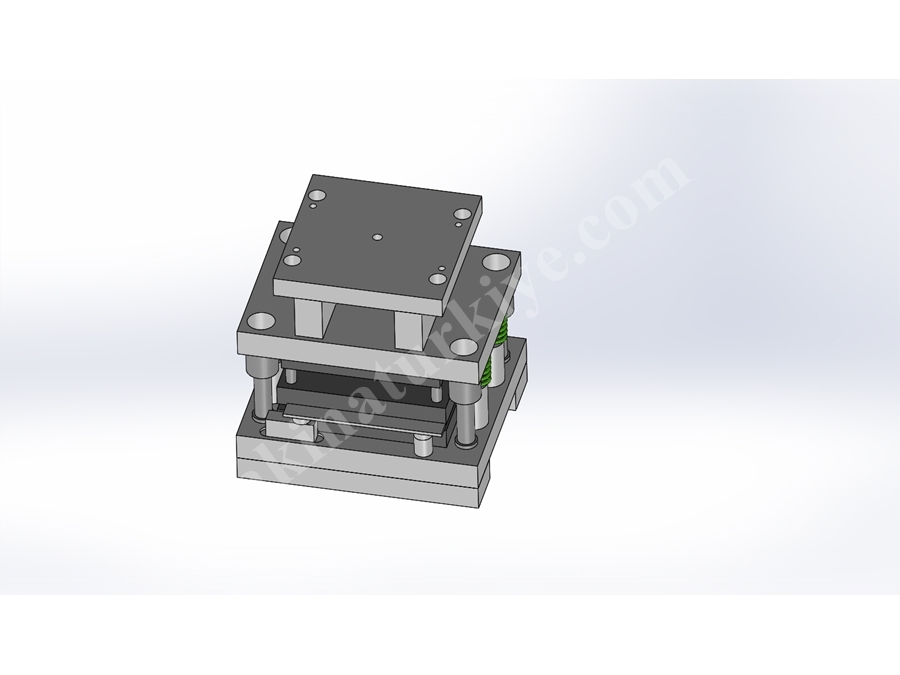

* Product-specific mold systems
* Working possibility with form molds
* Straightener performance
Upper 1/ lower 1
+/-0.15
