| Advertisement No: | #00256044 |
| Category: | Extruder Lamination Machine |
| Brand: | Kaizenkap |
| Model Type: | KEFLM-1100-2300E |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | Çavuşoğlu Mah. / Kartal / İstanbul |
| Sales Detail: | Bank Transfer, Credit Cart, Negotiated |
| Delivery Status: | In stock |
About the Extrusion Film EPE Lamination Machine Areas of Use Technical Specifications General Features Shipping and Delivery

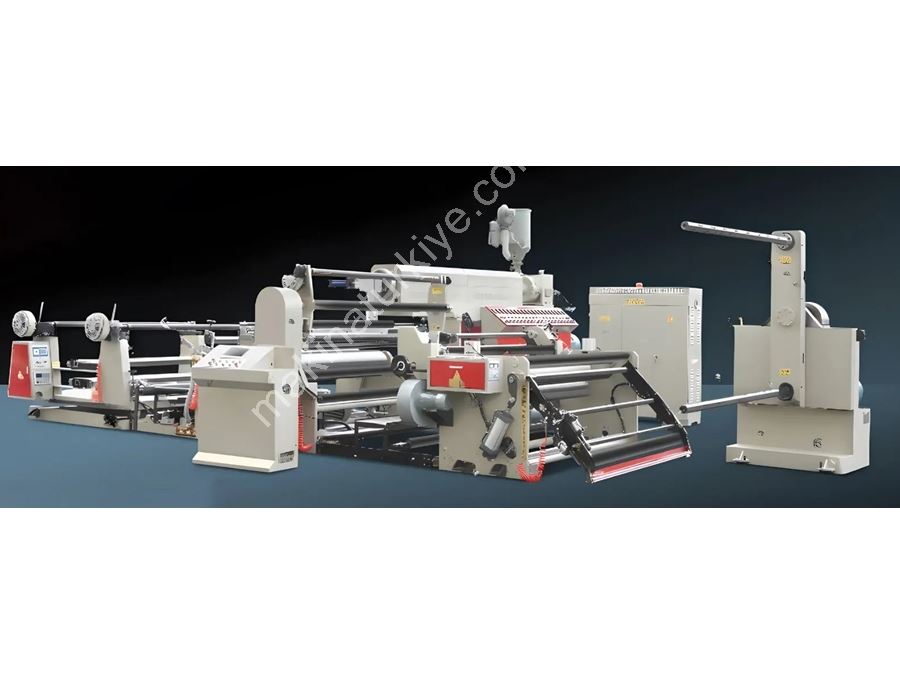

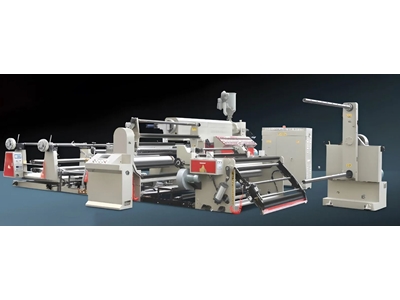

The Extrusion Film EPE Lamination Machine is a fully automatic lamination line that produces multilayer structures by combining plastic film materials with EPE (expanded polyethylene foam) using polymer melted at high temperatures. By integrating extrusion and lamination processes into a single system, it enables the production of high-strength, impact-absorbing, and flexible composite products. It offers high efficiency and standard production quality, especially in the protective packaging and insulation sectors.
• EPE foam packaging production
• Electronic product protective packaging
• White goods and sensitive product packaging
• Impact-absorbing packaging solutions
• Production of insulation and construction materials
• Production of laminated foam sheets
Feature
Value
Operating System
Extrusion + Lamination
Extruder Type
Single screw / optional twin screw
Screw Diameter
90 – 120 mm
L/D Ratio
30:1 – 33:1
Suitable Raw Material
PE, LDPE, HDPE, PP, EVA
Suitable Material
EPE foam, BOPP, BOPET film
Lamination Type
Hot extrusion coating
Coating Width
1000 – 2000 mm
Film Thickness
0.01 – 0.1 mm
Production Speed
80 – 150 m/min
Cooling Cylinder
Ø500 – Ø700 mm
Unwinder Diameter
Ø800 – 1300 mm
Rewinder Diameter
Ø800 – 1300 mm
Heating System
Electric resistance + PID control
Temperature Control
Multi-zone automatic control
Drive System
AC motor + inverter
Control System
PLC + touch screen
Line Type
Continuous production line
Power Requirement
380V / 50 Hz
Air Consumption
0.5 – 0.7 MPa
The machine provides high adhesion strength by homogeneously distributing the melted polymer on the surface of the EPE foam. The produced composite structure offers significant advantages in protecting sensitive products with its impact-absorbing and flexible nature. The combination of extrusion and lamination processes on a single line shortens production time and reduces costs. With the PLC-controlled system, all parameters can be precisely adjusted, and production stability is maintained. It is suitable for facilities engaged in mass production with high speed capacity.
• Production and shipping are done according to the order
• Shipping is available throughout Turkey
• Products are carefully packaged for shipment
• Delivery time varies depending on production and stock status
