| Advertisement No: | #00252880 |
| Category: | Gas Chromatography |
| Brand: | Crowcon |
| Model Type: | XgardIQ |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | Esentepe Mah. / Şişli / İstanbul |
| Sales Detail: | Bank Transfer, Negotiated |
| Delivery Status: | In stock |

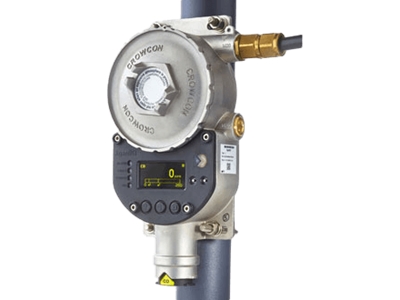

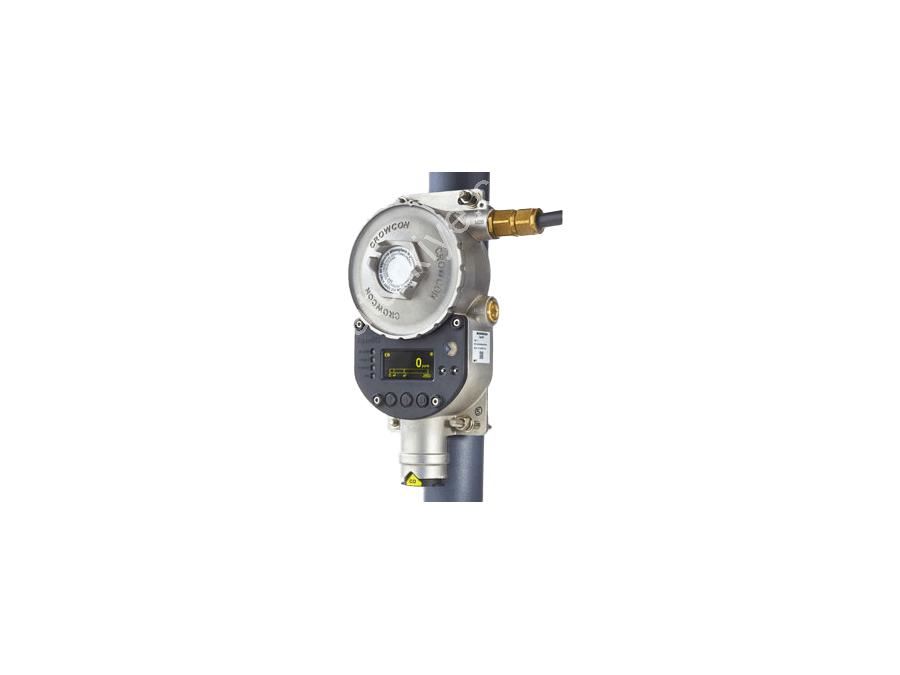

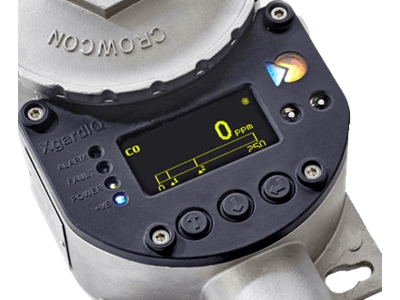

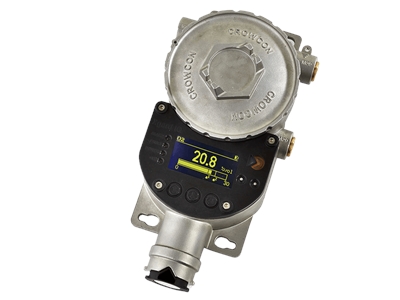

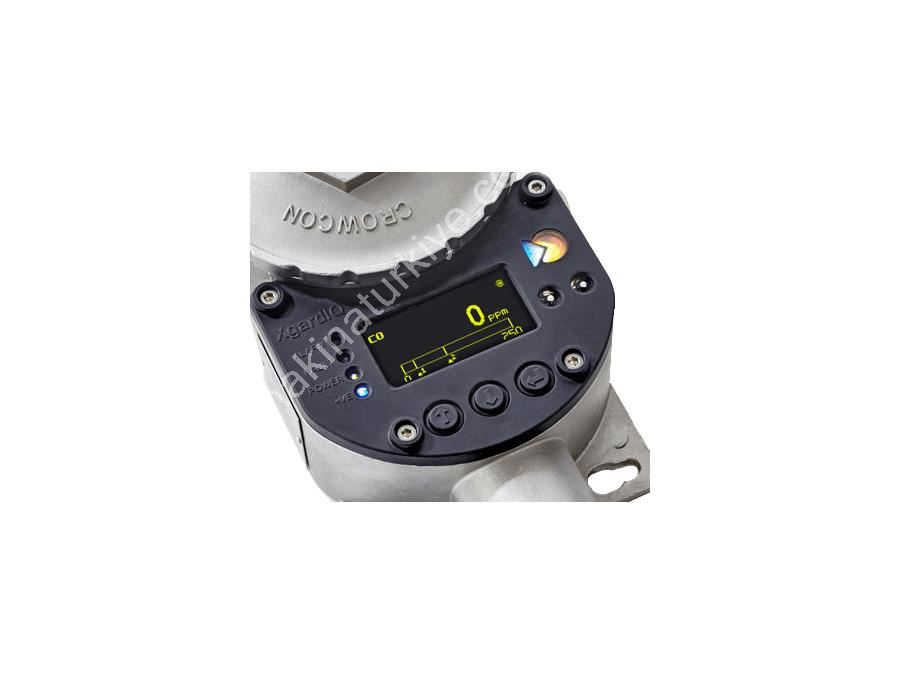

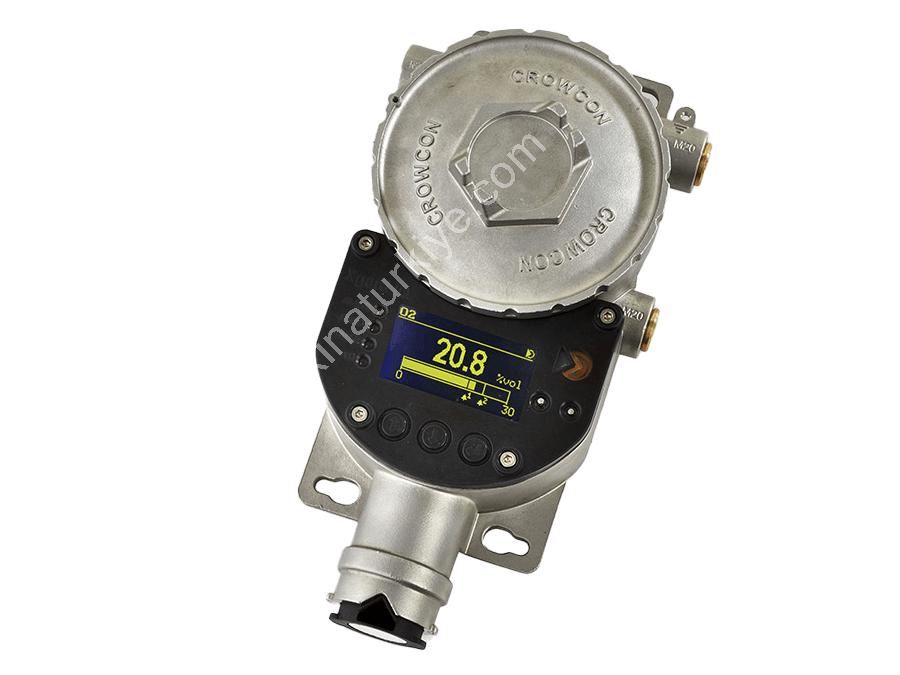

XgardIQ is our smartest fixed gas detector that enhances safety by minimizing the time operators need to spend in hazardous areas. This versatile SIL2 certified gas detector and transmitter has a range of features that protect people in oil, gas, chemical, and petrochemical facilities. It is available equipped with various sensors for the detection of flammable, toxic, oxygen, or fixed H2S gases. It allows you to access all of Crowcon's sensor technologies and advanced detection features. Thanks to the sensor range selection feature, users can adjust the sensor's full range according to specific location requirements. This SIL2 certified detector, equipped with various sensors for fixed flammable, toxic, oxygen, or H2S gas detection, is easy to use and safe, featuring an OLED display that allows you to easily see readings even in dark places and a +Ve safety indicator that lets you confirm the detector's robust operation at a glance. XgardIQ is optionally available with Alarm and Fault relays and HART communications. Crowcon XgardIQ Technical Specifications Size Y278 x W140 x D89 mm (10.9 x 5.5 x 3.5 inches) Weight 4.1 kg (9 lbs) Enclosure Material 316 stainless steel Ingress Protection IP66 Connection Three M20 or ½” NPT cable gland entries. Certified, removable plugs are fitted to left and right lower entries Power 14-30 VDC. <4W Display Main display – OLED 128 x 64 pixels, yellow text on black background Electrical Output 4-20mA current sink or source (Automatic Detection or manual selection); alarm and fault signals configurable. NAMUR NE 43 compliant Event Log Records alarm, fault, and maintenance events. Events can be displayed on the screen and downloaded to a computer. Operating Temperature Transmitter only: -40°C to +75°C (-40°F to +167°F)† Sensor type: Oxygen: (-20°C to +50°C ambient) Humidity 0% to 95% RH non-condensing† Repeatability +/- 2% FSD Zero Drift Annual maximum +/- 2% FSD Response Time Depends on sensor: Contact Crowcon for specific sensor data. Certifications ATEX and IECEx : Performance Designed to comply with: Functional Safety IEC61508, EN50402 SIL 2 EMC Compliance EN50270:2015 Gas Units Maximum Standard Alarm 1 Alarm 2 Temperature Oxygen (O 2 ) % Volume 30 25 19 (falling) 17 (falling) -20 to +50 Ammonia PPM 100/1000 50 25 35 -20 to +40 Carbon Monoxide (CO) PPM 1000 250 30 200 -30 to +50 Hydrogen Fluoride (HF) PPM 10 10 1.8 3 +5 to +40 Hydrogen Sulfide (H 2 S) PPM 100/200 25 5 10 -30 to +50 High Temperature Hydrogen Sulfide (H 2 S) PPM 100/200 25 5 10 -40 to +70 Ozone (O 3 ) PPM 1 1 0.1 0.2 -20 to +40 Sulfur Dioxide (SO 2 ) PPM 100 10 1 1 -30 to +50 Hydrogen (H 2 ) %LEL 100 100 20 40 -40 to +75 Methane (CH 4 ) %LEL 100 100 20 40 -40 to +75 Pentane (C 5 H 12) %LEL 100 100 20 40 -40 to +75 Propane (C 3 H 8) %LEL 100 100 20 40 -40 to +75 Ethanol (IR sensor) %LEL 100 100 20 40 -20 to +55 LPG (IR sensor) %LEL 100 100 20 40 -20 to +55 Methane (IR sensor) %LEL 100 100 20 40 -20 to +55 Propane (IR sensor) %LEL 100 100 20 40 +10 to + 55 Crowcon XgardIQ Gas Detector General Features
Indicators – Amber, Red, and Green LEDs for detector status; Blue + Safety LED
RS-485 Modbus RTU
HART 7, over 4-20mA signal and local IS test points (optional)
Relays (optional)
Alarm 1, Alarm 2, Fault
SPCO contacts, 5A, 230Vac
Relay configuration options
Energized or de-energized
Latching or non-latching
Rising or falling
Configurable On and Off delays in alarm relays.
Toxic: (-40°C to +50°C ambient)
Pellister: (-40°C to +75°C ambient)
Infrared (IR): (-20°C to +55°C ambient)
High temperature toxic: (-40⁰C to +70⁰C)
Ex II 2 G Ex db ia IIC T4 Gb (see above for temperature ranges)
EN50104 (oxygen sensors)
EN45544 (toxic gas sensors)*
EN50271 (software)
H2S performance standard
FCC CFR47 Section 15B
ICES-003Gases and Sources Used by Crowcon XgardIQ
Range
Range
level
level
range °C
