| Advertisement No: | #00252699 |
| Category: | Ampermeter |
| Brand: | Fluke |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Delivery Status: | In stock |
| Location: | Kartaltepe Mah. / Bayrampaşa / İstanbul |
| Sales Detail: | Bank Transfer, Credit Cart, Negotiated |

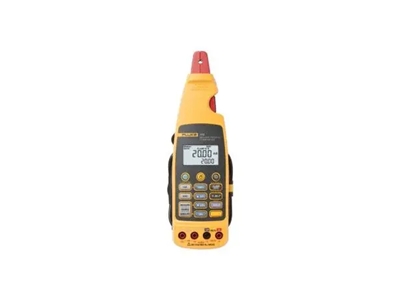

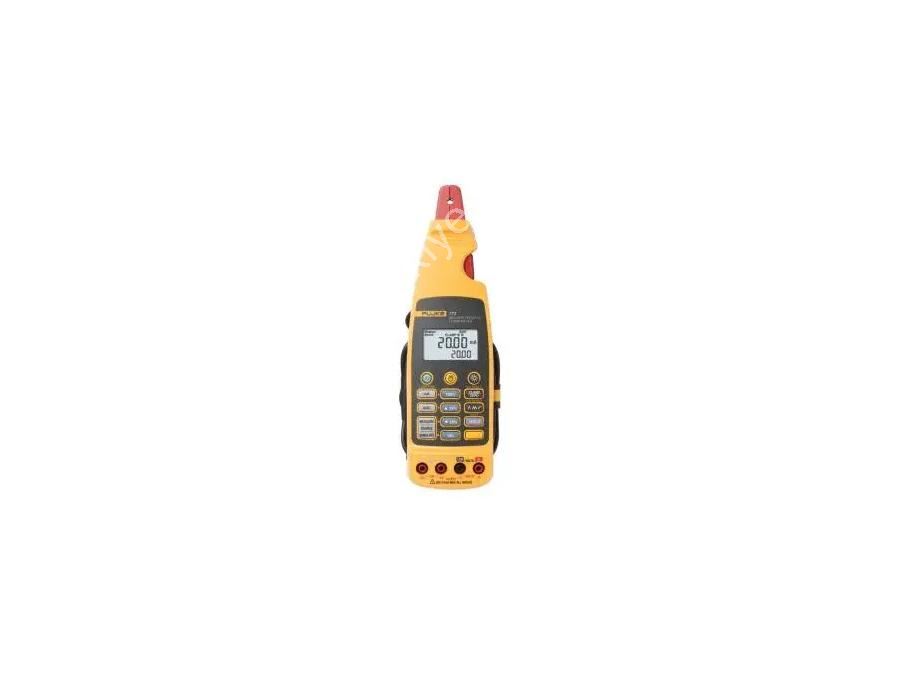

Fluke 773 Milliamp Process Calibrator is an advanced device with features like measuring, simulating, and providing loop power for 4-20 mA signals in process control systems. Fluke 773 offers professional solutions in the field and laboratory environments with capabilities such as measuring current without breaking the circuit, signal generation, and independent testing of transmitters. With its advanced features, it provides time savings and high accuracy for maintenance technicians and engineers. Unlike other mA process calibrators, Fluke 773 features signal generation and loop power capabilities. This enables independent testing of transmitters and analog inputs. The ability to provide both measurement and signal source simultaneously makes the device an indispensable tool for maintenance technicians and engineers. Fluke 773 Milliamp Process Calibrator comes with a user manual, carrying case, and long-lasting battery. With its advanced features, it optimizes work processes in field and laboratory environments and delivers reliable results.
Applications:
Feature
Details
Measurable Conductor Diameter
0.177" or 4.5 mm maximum
Operating Temperature
-10 to 50°C
Storage Temperature
-25 to 60°C
Operating Humidity Level
< 90% @ <30°C, < 75% @ 30 to 55°C
Operating Altitude
0 to 2000 m
IP Protection Class
IP 40
Size
44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in)
Weight
410 g (14.4 oz)
Vibration
Random 2 g, 5 to 500 Hz
Shock
1 m drop test (except for jaw)
EMI/RFI
Compliant with EN61326-1
Complement with EMC field strengths 1 V/m to 3 V/m increase 1mA for current measurement
Temperature Coefficient
0.01% °C (< 18°C or > 28°C)
Power,
(4) AA 1.5 V Alkaline, IEC LR6, 500 ohm load in mA source for 12 hours
Functional Features
Function
Resolution / Range
Accuracy
mA Measurement (With Leads)Battery Life
0 to 20.99 mA
%0.2 + 5 digits
21.0 mA to 100.0 mA
%1 + 5 digits
mA Measurement (With Test Jacks)
0 to 24.00 mA
%0.2 + 2 digits
mA Source
0 to 24.00 mA (maximum drive: 24 mA, 1,000 ohms)
%0.2 + 2 digits
mA Simulation
0 to 24.00 mA (maximum voltage: 50 V DC)
%0.2 + 2 digits
Voltage Source
0 to 10.00 V DC (maximum drive current: 2 mA)
%0.2 + 2 digits
Voltage Measurement
0 to 30.00 V DC
%0.2 + 2 digits
