| Advertisement No: | #00095835 |
| Category: | Battery Powered Stacker |
| Product Type: | For Sale |
| Product Status: | New |
Side Balance Pedestrian Stacker
1000 kg capacity
The Key to Efficiency is the Ability to Perform Multiple Tasks
The ST 3000 series is designed to be as robust, durable, easy to use, and supported by a lifetime chassis warranty just like our largest heavy-duty stackers. Adjustable forged forks and adjustable balance legs provide flexibility to adapt immediately to job and product changes. The industry-leading X10® control handle and SEM walking system provide precise control.

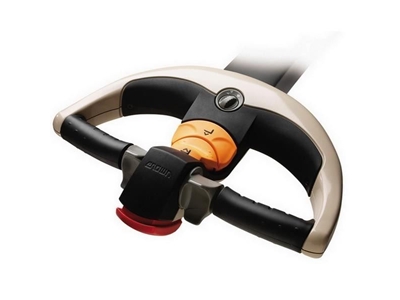

Control Handle
Award-winning X10® handle is designed to provide a shorter turning radius with smoother steering movement. All control buttons can be operated with both hands and are easily accessible with minimal hand and wrist movement. Horn buttons are integrated into the handle grip section. The ergonomic forward/reverse button allows for precise maneuvering.
The maximum driving speed can be adjusted with the rabbit/turtle button depending on conditions and user experience. Its unique automatic brake system slows down the walking speed as the control handle is straightened. This feature enhances maneuverability in tight spaces.
Power
24-volt motorized lifting and SEM walking electric system.
Battery options up to 192 Ah dry and machine-integrated 30 Amp rectifier and removable power cable.
Walking Hardware and Brakes
The walking equipment is designed to ensure lifelong safe use even in the most challenging applications. In fact, this equipment is designed to be used in heavy-duty stackers with twice the load capacity.
Walking hardware connections are made to the chassis with tapered bearings to distribute load forces evenly, reducing maintenance costs and machine downtime.
The walking hardware is equipped with leaf spring and electrically released electromagnetic brake disc. The brake control handle is activated from the position. The brake rotor and disc are easily accessible for inspection and replacement purposes. The regenerative motor brake assists in braking and extends the life of the brake components.
Special automatic brake limitation feature allows the machine to move even when the control handle is almost in the upright position.
Forks
Adjustable ISO forks are particularly useful for jobs using palettes and boxes of various sizes or jobs where pallet entry is made from 4 sides.
Load Wheels
Debris guard placed inside the load and balance wheel assemblies prevents debris damaging wheel shaft by wrapping around them, such as stretch film, plastic straps, bundle tapes, and more.
Steering
The control handle mounted from the center allows the operator to use the machine from a safe distance while turning both right and left, providing better maneuverability and a wider field of view.
Chassis
The durable one-piece chassis is backed by a lifetime warranty after intensive durability and application tests.
Adjustable Balance Legs
Balance leg spacings can be adjusted from 865 mm to 1270 mm according to your needs.
Visibility
Wide-view mast and low-power unit enable the operator to easily see the fork ends and have an excellent field of vision, reducing product damage.
Visibility of balance legs, fork ends, and both sides of the load allows for better placement of the load.
Speed
The unique X10® finger-controlled forward and reverse button allows walking speed to be used forward with both hands indefinitely.
The rabbit/turtle button allows for two-level programmable walking speed adjustment based on operator experience and environmental conditions where the work is being done.
Operator Safety and Comfort
The center-mounted control handle keeps the operator at a safe distance from the machine while turning both right and left, providing maximum safety. Features like the programmable rabbit/turtle button and auto reverse button on the award-winning X10® handle can be easily used in every grip position.
Service / Maintenance
The ST 3000 series is designed and tested to work for years in the toughest conditions with minimal routine maintenance. Protective steel covers can be easily removed to access all system components and service points.
The service and parts catalog is known as the most user-friendly service document in the industry, especially for easy maintenance and quick part reference.
ST 3000 Series Options & Accessories
There are many options and working accessories available for the ST 3000 series. All our options and accessories are carefully designed by Crown to enhance performance and cater to various application needs.
Examples:
· 192 Ah maintenance-free battery
· Load backrest
· Working Accessories
· Remote lift/lower control
· Clipboard holders and hooks
· Dashboards
