| Advertisement No: | #00143905 |
| Category: | Stretch Film Wrapping Machine |
| Brand: | Teknofinsteel |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | Gazitepe Mah. / Silivri / İstanbul |
| Warranty Status: | 2 Yıl Guaranteed |
| Sales Detail: | Bank Transfer, Credit Cart, Eligible for Credit, Negotiated |
| Delivery Status: | 7 Gün |

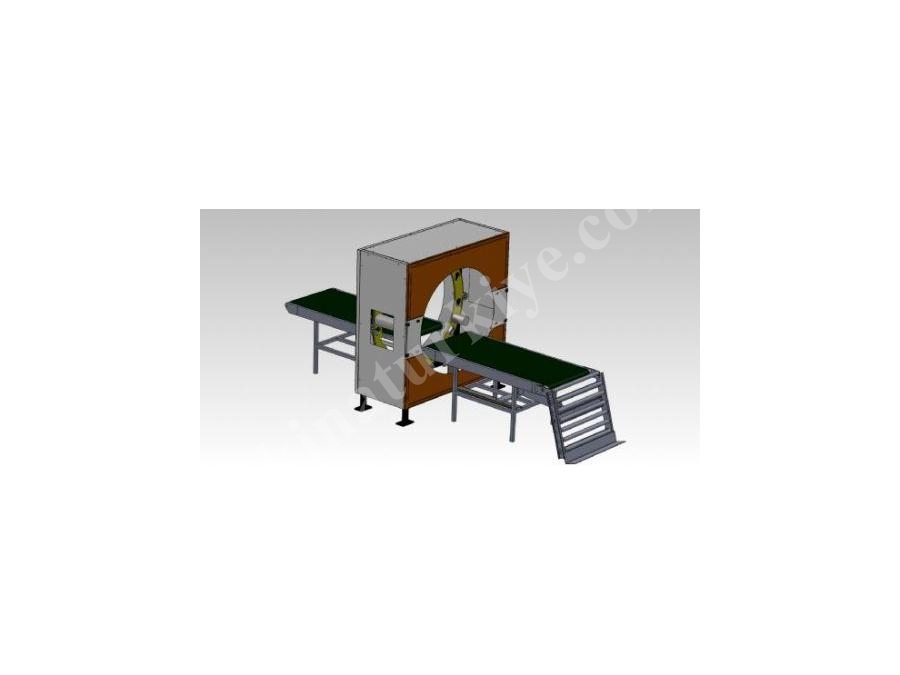

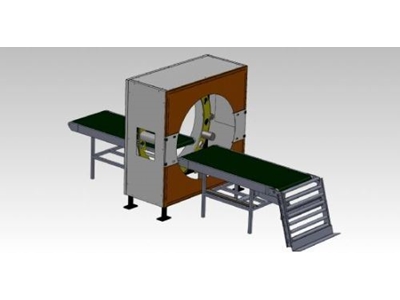

(Horizontal) Strech Wrapping Machine (Horizontal)Teknofinsteel TSSM01
|
The products to be packaged enter the machine via conveyor and the machine automatically starts working when the sensors detect, and the wrapping process takes place. By means of its highly easy-to-control touch panel, you can start the system manually or automatically. It offers the possibility of using stretch material in sizes ranging from 250 mm to 500 mm. It is possible to package products up to 600 mm in height and 1200 mm in width. |
|
Speed adjustment with frequency converter, input and output conveyors, pneumatic control conveyor arm that can move up and down to easily pick up the product, Manual and automatic control options. |
|
Motor power |
(kW rpm) |
1.5 1400 |
|
Conveyor motor |
(kW rpm) |
0.75 1400 |
|
Power supply voltage |
(V) |
220 / 380 |
|
Normal operating current |
(A) |
|
|
Operating frequency |
(Hz) |
50 |
|
Machine control |
PLC control |
|
|
Control |
Touch panel |
|
|
Stretch width |
(mm) |
250 - 500 |
|
Operating mode |
Manual / Automatic |
|
|
Stretch speed |
(m/min) |
15 |
|
Cutting unit |
Pneumatic |
|
|
Stretch ring sizes |
(mm) |
Ø1400 / Ø1720 |
|
Conveyor sizes |
(mm) |
1100x2000x1000 |
|
Conveyor belt width |
(mm) |
1000 |
|
Machine sizes |
(mm) |
2300x2095x845 |
|
|
|
|
| TECHNICAL INFORMATION | TSSM01 | |
| Motor power | (kW rpm) | 1.5 1400 |
| Conveyor motor | (kW rpm) | 0.75 1400 |
| Power supply voltage | (V) | 220 / 380 |
| Normal operating current | (A) | |
| Operating frequency | (Hz) | 50 |
| Machine control | PLC control | |
| Control | Touch panel | |
| Stretch width | (mm) | 250 - 500 |
| Operating mode | Manual / Automatic | |
| Stretch speed | (m/min) | 15 |
| Cutting unit | Pneumatic | |
| Stretch ring sizes | (mm) | Ø1400 / Ø1720 |
| Conveyor sizes | (mm) | 1100x2000x1000 |
| Conveyor belt width | (mm) | 1000 |
| Machine sizes | (mm) | 2300x2095x845 |
GENERAL INFORMATION
The products to be packaged enter the machine via conveyor and the machine automatically starts working when the sensors detect, and the wrapping process takes place.
By means of its highly easy-to-control touch panel, you can start the system manually or automatically.
It offers the possibility of using stretch material in sizes ranging from 250 mm to 500 mm.
It is possible to package products up to 600 mm in height and 1200 mm width.
FEATURES
- Speed adjustment with frequency converter
- Input and output conveyors
- Pneumatic control conveyor arm that can move up and down to easily pick up the product
- Manual and automatic control options
