| Advertisement No: | #00170820 |
| Category: | Impact Test Device |
| Brand: | Microanaliz |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | İvedik Organize Sanayi Mah / Yenimahalle / Ankara |
| Short Detail: | 2 Yıl Guaranteed |
| Sales Detail: | Bank Transfer |
| Delivery Status: | 45 Day |

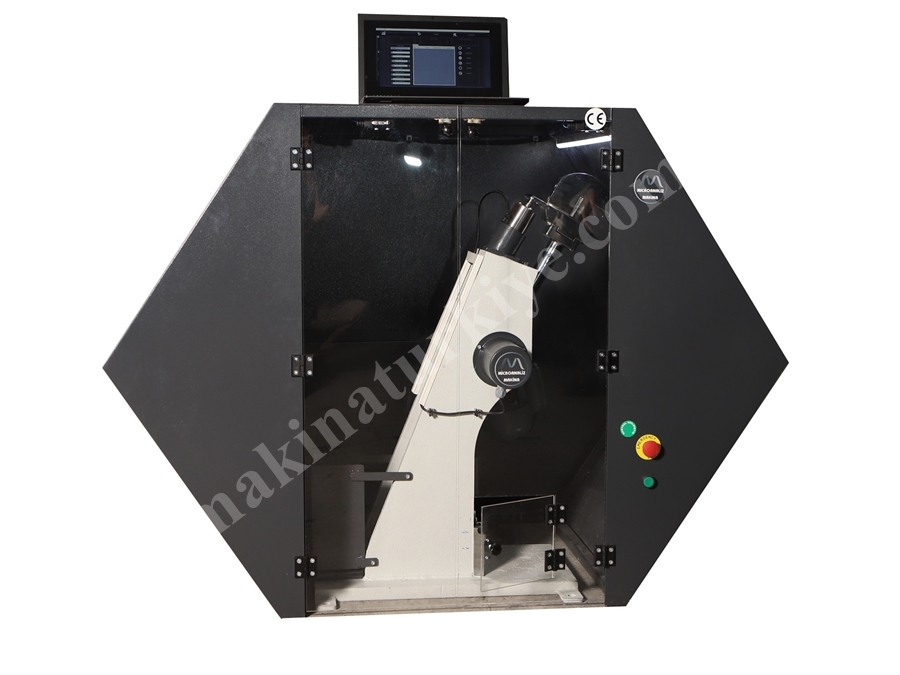

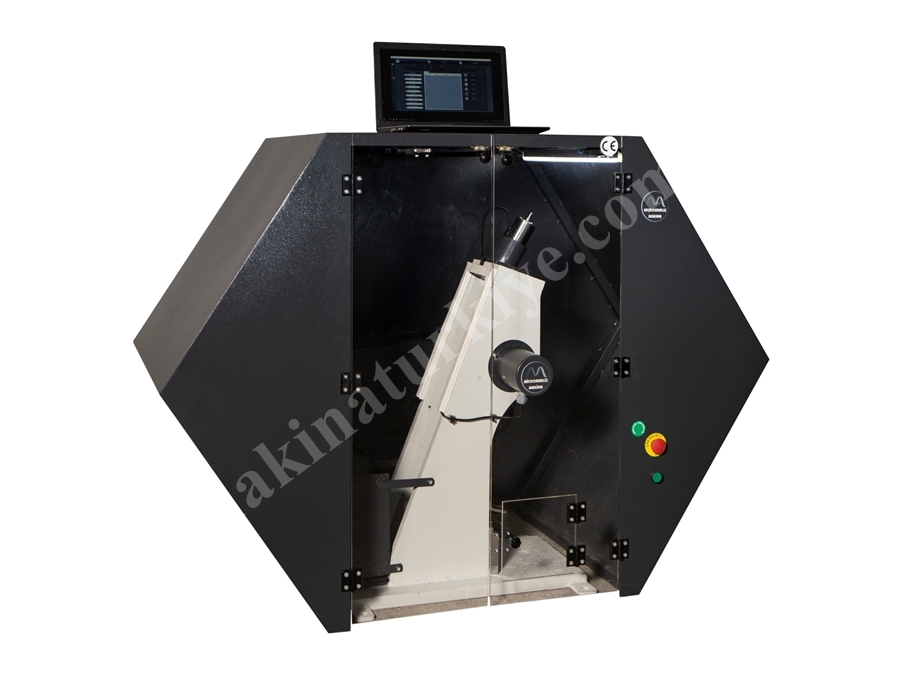

•ASTM E 23, EN 10045, ISO 148, GOST 9454; AS 1544; JIS Z 2242,B 7722 etc... It varies depending on temperature. It is a measure of the materials' brittle or ductile behavior. Suitable for performing Charpy tests. The Notch Impact Device has a hardened steel body that ensures the test is conducted quickly, safely, and easily. Accessories and pulling devices suitable for the test method are used. Charpy test accessories are provided with the device. Izod test accessories must be ordered separately. The absorbed energy and other calculated test results can be viewed on this screen. (optional digital display can be added) This feature ensures that parameters such as starting position adjustment, effective impact speed, and energy loss are measured under the same conditions for each sample. •Pendulum (capacity must be specified) 2 years of free service warranty against electronic production failures. Technical service & training support is also available for a fee for a duration of 10 years. Microanalysis Izod, Charpy Impact Test Device
Technical Specifications
•In the Charpy test, the amount of energy absorbed (dissipated) at the moment of fracture due to sudden impact is determined.
This amount of energy is a measure of the material's toughness.
•High-performance Charpy-Izod Impact Device, up to 800 Joules (the body dimensions, pulling weight, and pulling arm lengths vary according to system weight capacity).
•Charpy and Izod test accessories can be placed in the body.
•The user controls the device and test results from the universal PC program available in the PC control unit.
•In the Impact Device, the puller is automatically captured after the test and returns to the starting position.Izod Impact Test Device
Technical Features
•For user safety, the puller's motor drive raises it and automatically returns after the test,
•Fast-reacting electromagnetic brake/clutch control mechanism,
•Control unit positioned to facilitate application
•Distance between supports 40 mm,
•150-degree lifting angle,
•Adjustable lower support for samples of different sizes
•Hand safety button for the puller,
•Locking system that protects the user by preventing the puller from falling freely when the doors are open
•Electromagnetic brake/clutch control mechanism that stops the puller's movement when the door is opened,
•Automatic test mode sensitive to the safety cabin door allows for fast and continuous testing and provides more control to the user with manual test mode.
•Ability to read the angle at every position of the puller with a high-precision encoder and the ability to accurately capture the peak angle value during the puller's lifting movement.
•Thanks to the direct verification menu, it is possible to observe mechanical losses such as bearing and air resistance (even if minimal, %0.5) and perform periodic verification in accordance with standards.Main Accessories Optional Accessories
•Sample Centering Table (V)
•Safety Cabin (HALF CLOSED)
Aluminum alloy fully enclosed safety cabin,
ASTM E23 striking edge (R8mm),
Accessories for Charpy, Izod, and tensile impact tests,
Temperature cabinet for impact samples, Notch opening device for impact samples, Freezer for impact samplesProduct Warranty Information
