| Advertisement No: | #00113273 |
| Category: | CNC Lathe Machine |
| Brand: | Jinnfa |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Other |
| Location: | Orta Mah. / Bayrampaşa / İstanbul |
| Warranty Status: | 2 Yıl Guaranteed |
| Sales Detail: | Suitable for Leasing |

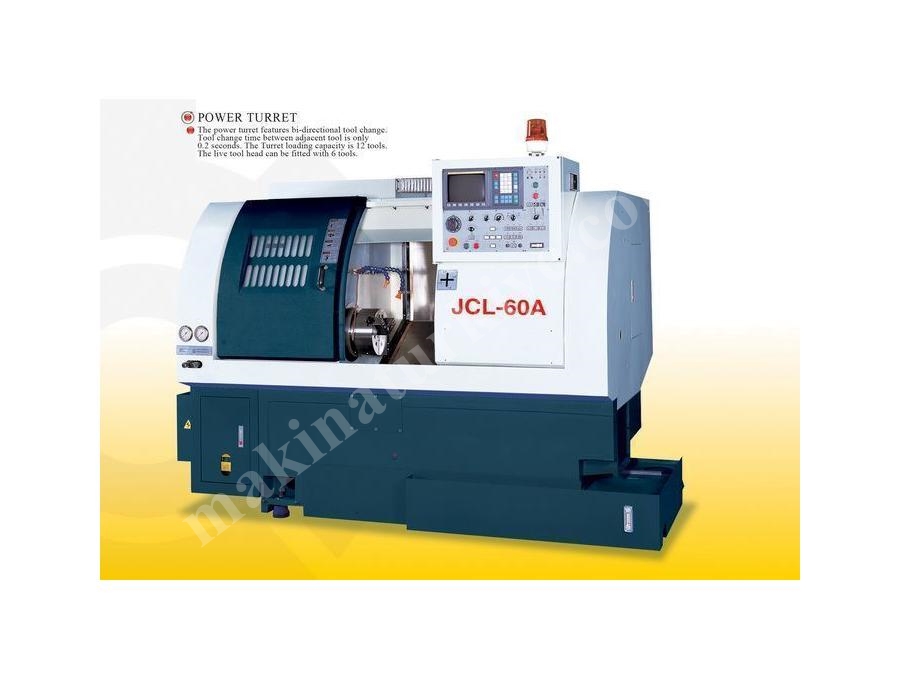

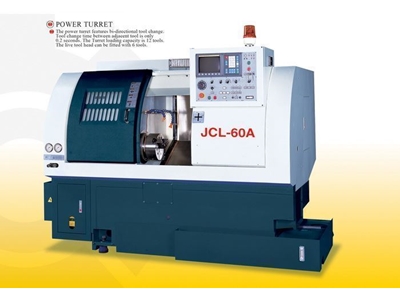

MODEL: JCL60A Boring tool diameter : Ø32(40) mm
over bed : Ø510 mm
diameter : Ø320 mm
lengh : 500 mm
Material collect length : 130 mm
Spindle capacity : Ø60 mm
Spindle bore diameter : Ø75 mm
Spindle nose: A2-6
Spindle speed range : 45~3500 rpm
Spindle motor: 15 kw

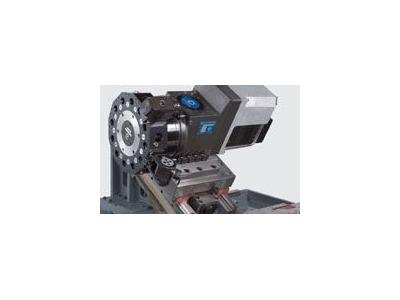

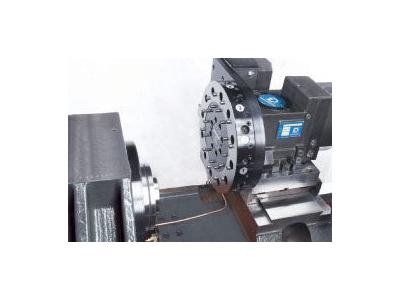

Number of tool station : 12(8)
X-axis : 170 mm
Z-axis : 550 mm
Rapid traverse X -axis : 16 m/min
Rapid traverse Z- axis : 20 m/min
Turret indexing time : 0.3 sec
Machine design : 30° deg

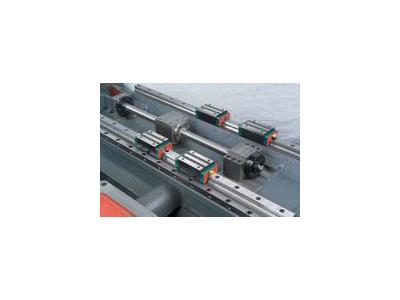

Slide way type : Linear Guide way

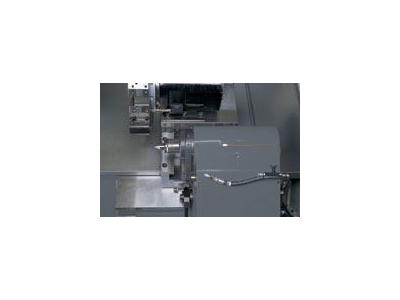

Tailstock taper :MT4
Tailstock traverse : 100 mm
Spindle hydraulic chuck : 8" inch
Turning tool diameter : 20(25) mm
Hydraulic motor : 1.5 kw
Lubrication motor : 3.5 w
Power requirement : 32 kva
Coolant tank capacity : 120L(85℅)
Machine dimensions(L*W*H) : 2780*1625*1948 mm
Weight : 3200 kg
