| Advertisement No: | #00116847 |
| Category: | Small Type Lathe Machine |
| Brand: | Çin |

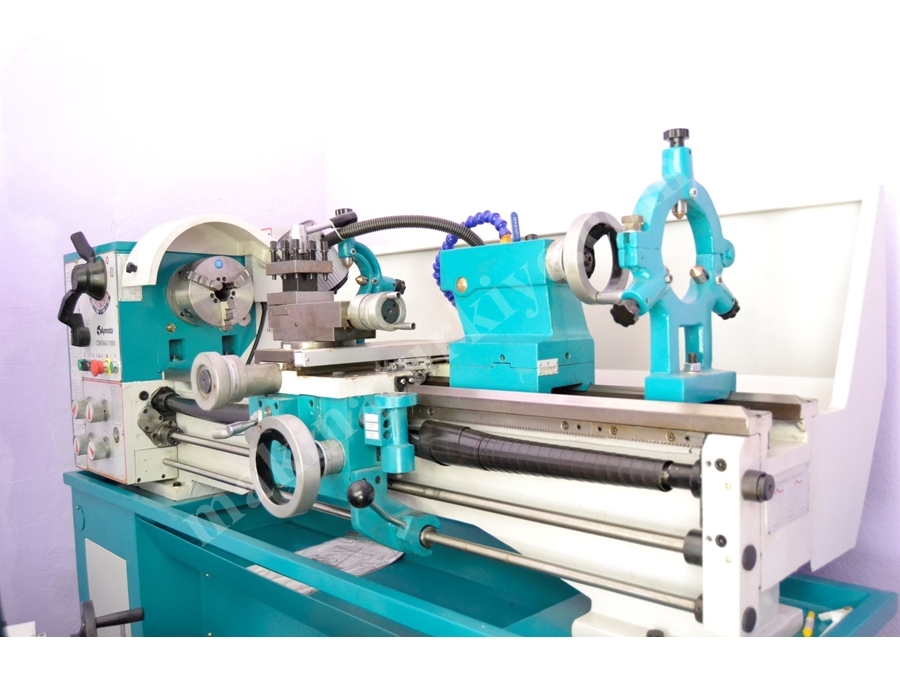

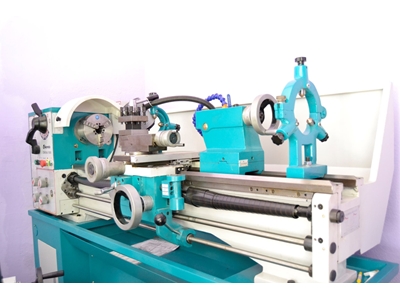

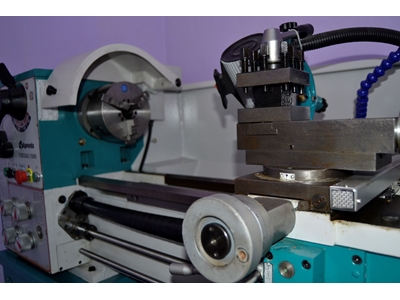

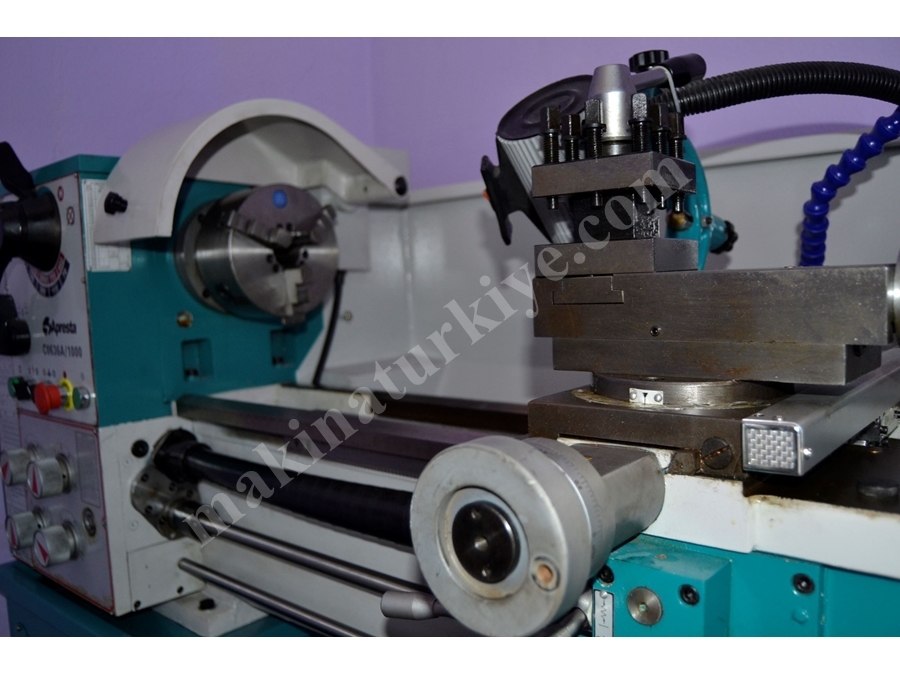

| Model Type: | C0636A |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Chinese |
| Location: | Muratpaşa Mah. / Bayrampaşa / İstanbul |
| Warranty Status: | 2 Yıl Guaranteed |
| Sales Detail: | Exchange possible |
| Delivery Status: | In stock |
MODELS
C0632A×1000
C0636A×1000
Swing over bed
330mm(13")
360mm(14")
Swing over cross slide
198mm(7-25/32")
212mm(8-1/6")
Swing in gap diameter
476mm(18-3/4")
491mm(9-1/3")
Swing in length
210mm(8-1/4")
210mm(8-1/4")
Center height
166mm(6-1/2")
166mm(6-1/2")
Max length between center
1000mm(40")
1000mm(40")
Bed width
187mm(7-3/8")
187mm(7-3/8")
Spindle bore
38mm(1-1/2")
38mm(1-1/2")
Spindle nose
D1-4" or A2-4"
D1-4" or A2-4"
Taper in nose
NO.5 morse
NO.5 morse
Taper in sleeve
NO.3 morse
NO.3 morse
Speeds number
8
8
Speeds range
70-2000r.p.m.
70-2000r.p.m
Cross slide travel
160mm(6-5/16")
118mm(4-5/16")
Compound rest travel
68mm(2-11/16")
68mm(2-11/16")
Lead screw thread
8T.P.I. or 3mm pitch
8T.P.I. or 3mm pitch
Feed rod diameter
19mm(3/4")
19mm(3/4")
Cutting tool max section
16mm×16mm(5/8"×5/8")
16mm×16mm(5/8"×5/8")
Threads imperial pitches
36 Nos.8-112 T.P.I.
36 Nos.8-112 T.P.I.
Threads metric pitches
28 Nos.0.2-5mm pitch
28 Nos.0.2-5mm pitch
Threads diametral pitches
36 Nos.8-112 D.P
36 Nos.8-112 D.P
Threads module pitches
22 Nos.0.2-3 M.P.
22 Nos.0.2-3 M.P.
Longitudinal feeds imperial
36 Nos.0.0019-0.0273"/Rev
36 Nos.0.0019-0.0273"/Rev
Longitudinal feeds metric
36 Nos.0.050-0.696"/Rev
36 Nos.0.050-0.696"/Rev
Cross feeds imperial
36 Nos.0.0006-0.0094"/Rev
36 Nos.0.0006-0.0094"/Rev.
Cross feeds metric
36 Nos.0.013-0.188"/Rev.
36 Nos.0.013-0.188"/Rev
Quill diameter
32mm(1-1/4")(NO.3M.T.)
32mm(1-1/4")(NO.3M.T.)
or (optional)
Quill travel
100mm(3-15/16")(NO.3M.T.)
100mm(3-15/16")(NO.3M.T.)
or (optional)
Quill taper
NO.3 morse
NO.3 morse
For main motor
1.5KW 3PH or 1PH
1.5KW 3PH or 1PH
