Metal Detector and Weight Control Machine Combination

About

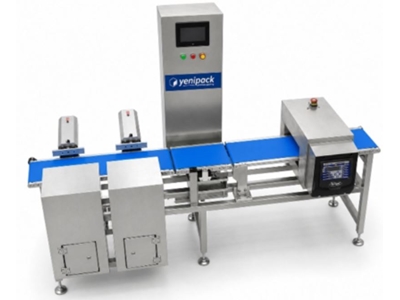

The Metal Detector and Weight Control Machine Combination is a conveyor-based control system developed for the purpose of performing foreign metal control and final weight control on packaged products within the same system.

It can be used by integrating into production and packaging lines in sectors such as food, chemicals, and pharmaceuticals. The system checks for foreign materials such as iron, brass, and stainless steel that may be present in packaged products while also controlling the final package weight of the product.

The weight control system can perform weight checks on packaged products ranging from 20 grams to 2,000 grams. Thus, both foreign metal control and package weight control can be carried out in a single combination system on the production line.

Products in PET jars, flexible packages that do not contain metalized and aluminum, and products in cardboard boxes can be fed into the system via the conveyor. Products identified as faulty can be separated from the product flow using different reject systems according to the structure of the production line.

Areas of Use

Meat products
Dairy products
Seafood
Pet foods
Ready meals
Chocolate and candies
Legume products
Spices
Nuts
Dried fruits
Baked goods
Products in PET jars
Flexible packaged products
Products in cardboard boxes
Food production and packaging lines
Chemical industry
Pharmaceutical industry

Technical Specifications

Feature	Value
Model	Metal Detector and Weight Control Machine Combination
System Type	Conveyor
Control Functions	Metal Detector + Weight Control
Tunnel Width	From 150 mm to 800 mm, in 50 mm increments
Tunnel Height	From 150 mm to 600 mm, in 50 mm increments
Iron Sensitivity	1.2 mm
Brass Sensitivity	1.6 mm
Inox Sensitivity	1.8 mm
Weight Control Range	20-2,000 gr
Product Flow	Conveyor
Controlled Products	Products in PET jars, flexible packages that do not contain metalized and aluminum, products in cardboard boxes
Faulty Product Separation	Conveyor Stop / Pneumatic Piston / Air Blowing / Retractable Conveyor Belt
Electric Supply	220 Volt AC – 1.0 kW
Air Supply	6 Bar / 100 lt./min.

Operating System

Packaged products are taken into the control system via the conveyor belt. Products are passed through the metal detector section to check for foreign metal and the final weight control of the packages is performed on the same line.

Products that are detected to have metal or found unsuitable in weight control can be separated from the production flow according to the separation system used. Depending on the structure of the line and the product, methods such as stopping the conveyor, pneumatic piston, air blowing, or retractable conveyor belt can be utilized.

Faulty Product Separation Options

Separation by stopping the conveyor
Pneumatic piston separation
Air blowing method
Retractable conveyor belt system

Optional Units

Pneumatic arm reject system
Retractable conveyor belt system
Locked reject box
Reject box fullness sensor
Entry control sensor for reject box

Highlighted Advantages

Performs metal control and weight control on the same system.
Can be used in the final control stage of packaged products.
Suitable for weight control of packages between 20-2,000 grams.
Conducts control of iron, brass, and stainless steel.
Tunnel sizes can be selected according to different package and product dimensions.
Tunnel width can be produced up to 800 mm.
Tunnel height can be produced up to 600 mm.
Can be configured with different faulty product separation systems.
Locked reject box and control sensors can be added.
Can be integrated into conveyor-based production and packaging lines.
Can be manufactured in suitable sizes according to packaging type, packaging size, and packaging speed.

Shipping and Delivery Information

Production and shipping according to order
Shipping throughout Turkey
The machine is carefully prepared for shipment
Delivery time may vary depending on stock and production status.
