| Advertisement No: | #00257804 |
| Category: | Packaging Elevators |
| Brand: | Yenipack |
| Model Type: | Y-BE-001 |
| Product Type: | For Sale |
| Product Status: | New |
| Origin: | Turkey |
| Location: | İkitelli OSB Mah. / Başakşehir / İstanbul |
| Warranty Status: | 2 Yıl Guaranteed |
| Sales Detail: | Bank Transfer, Credit Cart, Negotiated |
| Delivery Status: | In stock |
About The PU Belt Product Feeding Elevator is a conveyor product transport system developed for the automatic transportation and feeding of products to electronic scales, volumetric weighing systems, and other filling units used in packaging machines. It can be used for transporting dry products such as legumes, nuts, and chips, as well as dairy products like grated mozzarella, ball cheese, and grated cheddar; fresh-cut vegetables and fruits, and fresh or frozen food products like fish, chicken, and meat. The polyurethane belt, with a thickness of 3.2 mm and a 40 mm side flared structure, is specifically designed for transporting oily products. The vibrating feeding hopper and speed-controlled belt system ensure that products are transferred to the weighing or filling unit on the packaging line in a controlled manner. The elevator has a carrying capacity of up to 3 tons per hour for legume products and can be adapted to different packaging lines with product discharge height options of 2800 mm, 3200 mm, and 3600 mm. Areas of Use Electronic scale feeding systems Volumetric filling systems Packaging machines Legume products Nuts Chips and crackers Apricots and figs Grated mozzarella Ball cheese Grated cheddar Fresh-cut vegetables Fresh-cut fruits Fresh and frozen fish products Fresh and frozen chicken products Fresh and frozen meat products Food production and packaging lines Technical Specifications Operating System The products to be packaged are placed in the 200-liter Inox feeding hopper. The vibrating channel discharge system in the hopper allows for the controlled transfer of the product onto the PU belt. Thanks to the speed-controlled structure of the 0.25 kW vibration motor, the amount of product discharged from the hopper can be adjusted. The PU belt moves with a 0.75 kW speed-controlled motor, transporting the product to the weighing or filling system above the packaging machine. The ability to control the belt rotation speed and hopper discharge speed separately allows for the adjustment of the product feeding flow according to the operating conditions of the packaging system. Belt and Chassis Structure The 3.2 mm thick, 40 mm side flared polyurethane belt used in the elevator is suitable for transporting oily products. The machine chassis can be produced according to application needs as: 3 mm DKP sheet electrostatic powder coated AISI 304 Inox as options. Optional Units Top cover closing sheets Bottom closing sheets Highlighted Advantages Provides automatic feeding of weighing and filling systems in packaging machines. Suitable for transporting various dry, fresh, and frozen food products. Has a PU belt structure suitable for oily products. Offers a carrying capacity of up to 3 tons per hour for legume products. Has a 200-liter Inox vibrating feeding hopper. Hopper discharge speed is adjustable. Belt rotation speed is adjustable. Available in different product discharge height options of 2800, 3200, and 3600 mm. Offers DKP sheet or AISI 304 Inox chassis options. Can be used with electronic scales and volumetric filling systems. Shipping and Delivery Information Production and shipment according to order Shipping across Turkey The machine is carefully prepared for shipment Delivery time may vary depending on stock and production status.

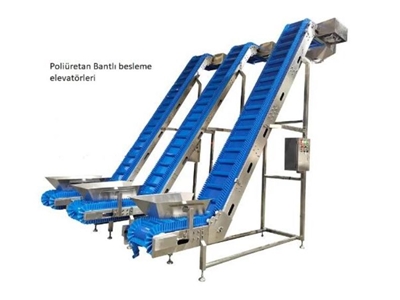

PU Belt Product Feeding Elevator
Feature
Value
Model
PU Belt Elevator
Belt Type
Polyurethane (PU) Belt
Belt Thickness
3.2 mm
Belt Side Structure
40 mm Side Flared
Carrying Capacity
3 Tons/Hour (for Legume Products)
Hopper Size
90 x 90 x 95 cm
Hopper Volume
200 L
Hopper Material
Inox
Hopper Discharge System
Vibrating Channel
Hopper Vibration Motor
0.25 kW
Vibration Control
Speed Controlled
Belt Motor
0.75 kW
Belt Speed Control
Speed Controlled
Chassis
3 mm DKP Sheet Electrostatic Powder Coated or AISI 304 Inox
Product Discharge Height
2800 / 3200 / 3600 mm
Electric Supply
220 Volt AC / 1000 W
Transported Products
Legumes, Nuts, Chips, Crackers, Apricots, Figs, etc.
